Thermal Fluid Thermal Oil Heater Organic Heat Carrier Boiler For Food Processing Factory Plant,Workshop

Oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

Product: thermal oil boiler,thermal oil heater,Thermic Fluid Heater,hot oil boiler,
Thermal capacity:350kw-1400KW, 300,000-2,000,000 Kcal/H
Working pressure:0.8-1.0 MPA
Outlet temperature:320 C
Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil
Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

Feature of thermal oil boiler

1. Extremely flecible and simple installation.Just place the boiler on the foundation.

2. Heating area is the closely-aligned round coils.Heating area is arranged sufficiently to reduce the surface heat load of pipe and handle the heat transfer oil safely.

3. Size of hearth matches the combustion flame.Use the barotropic combustion to increase the radiation heating efficiency.

4. Compact boiler saves the space of boiler room greatly.

Air preheater is mounted at the tail of large boiler to improve the efficence

Technical parameter

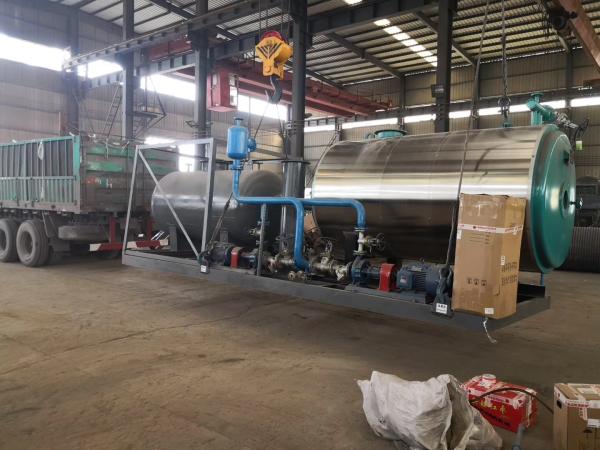

Full set fuel (gas) thermal oil boiler is consist of Horizontal boiler body, Boiler Burner (imported famous brand), Instruments, Chimney, Circulating Pump, Oil Filling Pump,Expansion Tank, Oil Storage Tank, Oil Gas Separator,Electric Control Cabinet (Chinese & English Version), Economizer (Optional),etc.
The Gas/Oil Fired thermal oil boiler auxiliaries :
oil fired thermic fluid heater hot oil boiler

Thermal Oil Boiler For Hot Press takes diesel, gas, town gas as fuel. Three pass and wet back structure enhance it's thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.

All boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.

Application:
Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the oil fired thermal fluid heater could be widely used in a variety of industrial heating process.
1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
2) Food industry - cooking, drying, vegetable oil refining.
3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
4) Plastics industry - plastics fired, extruded shape.
5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
6) Paper industry - drying, corrugated paper processing, calender, glue roller.
7) Wood industry - hot processing, heat setting.
8) Machinery industry - drying, assembly processing
9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry

FAQ
What is the highest temperature that thermal oil heater could achieve?
thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)

What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.
The highest heat resistance temperature of furnace could be about 1700℃~1800℃.

What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.

1.one set YYQW-350 model gas fired thermal oil boiler should load in one 40HQ

2.one set YYQW-500 model oil fired thermal oil boiler price should load in one 40HQ

3.one set YYQW-700 model 600000kcal thermal oil boiler should load in one 40HQ

4.one set YYQW-1200 model thermal oil boiler price should load in one 40HQ

5.one set YYQW-1400 model thermal oil heater boiler should load in one 40HQ

6.one set YYQW-1900 model thermal oil furnace boiler price should load in one 40HQ

7.large capacity of thermal oil boiler, like YYQW-2500, YYQW-3500 gas boiler should load in 40FR
