100,000-1,000,000 Kcal/H Thermal Oil Boiler, Hot Oil Boiler Used For Asphalt Equipment Machine
YY(Q)W series thermal fluid boiler heater has skid-mounted design and full automatic control system. The heat carrier is thermal fluid oil, boiler's working pressure ≤1.0MPa, working temperature ≤310℃. Adopting three-pass structure, 3 layer corrugated coil rings.
Free-Installation
The complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, user no need to do installation, just filling the thermal fluid oil, join the fuel and electricity. Entire boiler system is portable.
thermal capacity: 350kw-1400KW
Working pressure:0.8-1.0 MPA
Outlet temperature:320 C
Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil
Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries
Features of Oil Gas Thermal Oil Boiler Hot Oil Heater:
1. Good sealing, large and flexible space, improving the service life of the burner.
2. The boiler adopts a three-layer close coil pipe structure, with three-pass flue gas and higher heat conversion efficiency.
3. The boiler has a compact structure, small floor area, good raw materials, stable, safe and reliable boiler.
4. Multiple interlocking protection systems make the boiler run more safely.
5. High-temperature control accuracy and good combustion effect. The air preheater can effectively improve the thermal efficiency of the boiler to more than 95%.
6. PLC automatic control function can save human resources and extend the service life of the equipment, The material selection is superior. Ten qualified manufacturers are selected from all over the world, and then four higher quality products are selected from ten. After each batch of physical and chemical tests, the production can be carried out to ensure that the material completely meets the standard and is superior to the product.
7.According to the actual situation of the user's location, the flexible design enables the user to save the operation cost and run more safely and stably, but the user has no worries. And According to the use of users, our professional user designers will choose the most suitable products for users.
Technical parameter
| Model No. | Thermal power(kcal/h) | Heating efficiency (%) | Max. working temp.(℃) | Medium circulation(M3/H) | Transport size (mm) | Weight (Kg) |
| YY(Q)W-120Y(Q) | 10*104 | ≥92.26 | 340 | 12.5 | Φ1060*2045 | 1215 |
| YY(Q)W-240Y(Q) | 20*104 | ≥92.26 | 340 | 18 | Φ1020*1980 | 1355 |
| YY(Q)W-350Y(Q) | 30*104 | ≥92.26 | 340 | 30 | Φ1212*2310 | 1590 |
| YY(Q)W-500Y(Q) | 40*104 | ≥92.26 | 340 | 30 | Φ1212*2730 | 1680 |
| YY(Q)W-700Y(Q) | 60*104 | ≥92.26 | 340 | 60 | Φ1400*3410 | 2715 |
| YY(Q)W-930Y(Q) | 80*104 | ≥92.26 | 340 | 80 | Φ1616*3400 | 3142 |
| YY(Q)W-1200Y(Q) | 100*104 | ≥92.26 | 340 | 100 | Φ1616*4000 | 3660 |
| YY(Q)W-1400Y(Q) | 120*104 | ≥92.26 | 340 | 100 | Φ1820*4905 | 5420 |
| YY(Q)W-2000Y(Q) | 160*104 | ≥92.26 | 340 | 100 | Φ1840*4950 | 7850 |
The Gas/Oil Fired thermal oil boiler auxiliaries :
oil fired thermic fluid heater hot oil boiler
| Name | Quantity(unit/piece) |
| main body of thermal oil boiler | 1 |
| Oil Circulating pump | 1 |
| Gas/oil burner | 1 |
| oil filling pump | 1 |
| Filter | 1 |
| Electric control cabinet | 1 |
| high level oil storage tank | 1 |
| Low level oil storage tank | 1 |
| Valves and gauges | one batch for whole system |
Boiler Layout

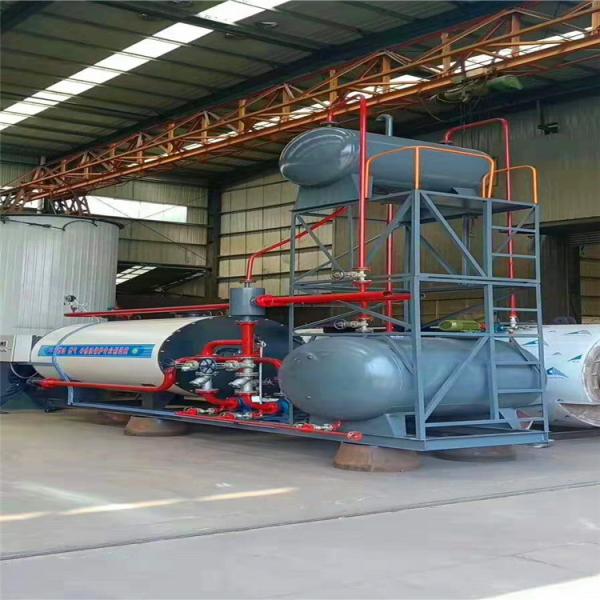

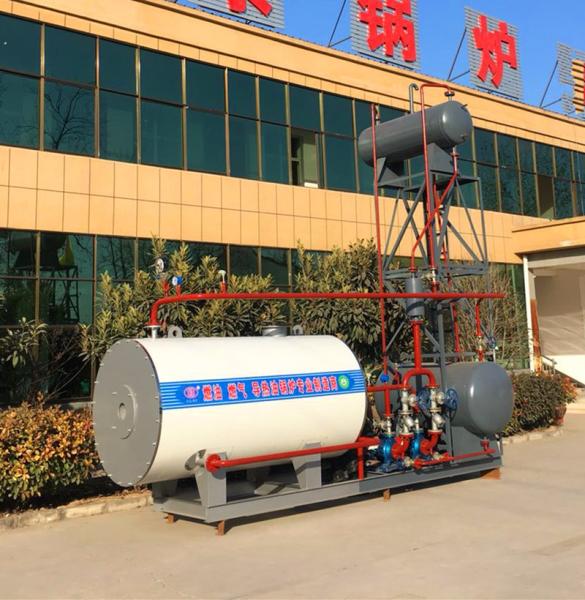

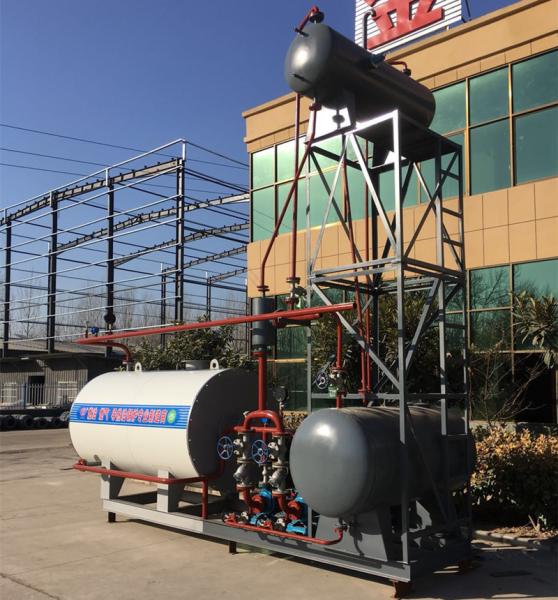

Boiler Picture
Application
The series of thermal oil heater is widely used in the following industries:
l Petrochemical Industries:polymerization, melted, condensation, distillation, removal H2.
l Oil industry:fat and acid distillation, grease decomposition, concentrated, esterification, vacuum deodorizer, high-temperature cooking, advanced salad oil.
l Synthetic fiber industry: polymerization, melt spinning, extending; drying.
l Textile printing and dyeing industry: heat setting, hot melt dyeing, melt bake calendering drying, high temperature stenter, oar yarn.
l Plastics and rubber industry:hot pressing, hot cast, vulcanization molding, calendering injection machine, plastic mixer, conveyor dryer, screw extruder.
l Paper Industry: dry, corrugated paper processing, egg tray, food cardboard drying, calendering machine, roller.
l Timber industry: multilayer plywood, fiberboard molding, plywood, wood drying, steaming equipment.
l Building materials industry: road bitumen heating, gypsum board drying, heating bitumen concrete, concrete elements curing, drying equipment.
l Air-conditioning industry:industrial plants, residential and hotel building heating.
l Detergent Industry: cooking boiler, autoclave, spray-washing tower, a conveyorized dryer, lipolysis device distillation column.
l The automotive industry:the tunnel-type drying room, degreasing baths, phosphate processing equipment.
l Electrical equipment industry: calendering machine, the platen machines, vacuum pan, dryer.
FAQ
What is the highest temperature that thermal oil heater could achieve?
thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)
What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.
The highest heat resistance temperature of furnace could be about 1700℃~1800℃.
What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
