Industrial Horizontal Oil/Gas Fired Thermal Fluid Heaters/Boilers for Rubber industry

Product: thermal oil boiler,thermal oil heater,Thermic Fluid Heater,hot oil boiler,
Thermal capacity:350kw-1400KW, 300,000-2,000,000 Kcal/H
Working pressure:0.8-1.0 MPA
Outlet temperature:320 C
Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil
Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

YY(Q)W series gas fired thermal oil boiler designed with three passes coiled tubes, the tail heat surface form the wet back type smoke-transfer chamber structure, to improve heat efficiency. large access door design of boiler's front and rear panel,hammer paint coating, which makes the inspection more convenient.

The thermal oil boiler can be used for asphalt mixing plant, bitumen melting machine, bitumen emulsion machine, also can be used for bitumen modifying machine. The bitumen can be heated quickly by thermal oil, and the boiler can be automatic control by setting the temperature limit.

Technical parameter

Main features of industrial thermal oil boiler:
(1) Access to low-pressure high-temperature thermal medium, convenient adjustment, heat evenly, to meet precise process temperature.
(2) Liquid circulation heat, no condensation heat loss emissions, high thermal efficiency heating system.
(3) The working medium heat and heat and temperature fluctuation on the volume change in the compensation measures within the system.
(4) Circulating heat medium before the strict control of air, water and other low volatile content of the technical measures.

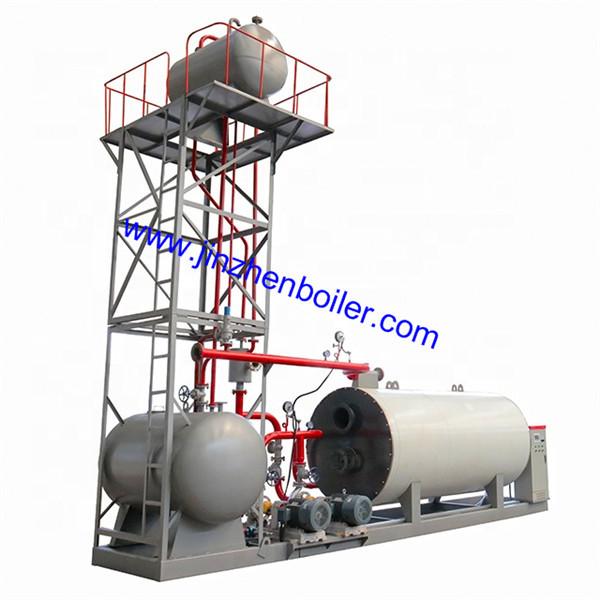

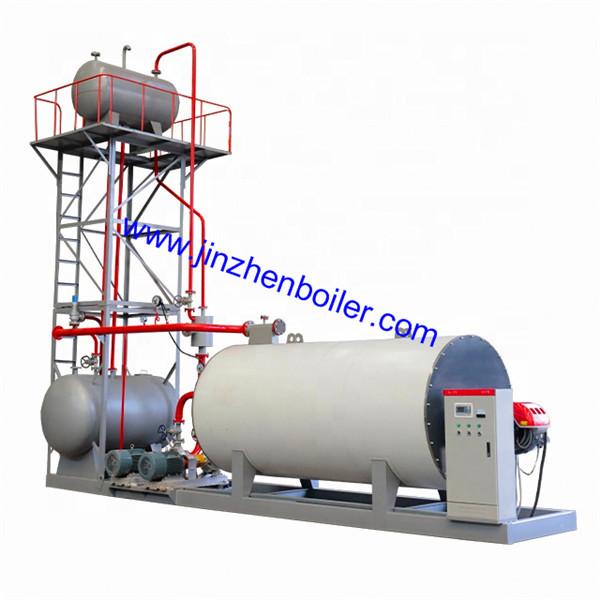

Full set fuel (gas) thermal oil boiler is consist of Horizontal boiler body, Boiler Burner (imported famous brand), Instruments, Chimney, Circulating Pump, Oil Filling Pump,Expansion Tank, Oil Storage Tank, Oil Gas Separator,Electric Control Cabinet (Chinese & English Version), Economizer (Optional),etc.
The Gas/Oil Fired thermal oil boiler auxiliaries :
oil fired thermic fluid heater hot oil boiler

Thermal Oil Boiler For Hot Press takes diesel, gas, town gas as fuel. Three pass and wet back structure enhance it's thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.

All boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.
Boiler Room Layout


Application:
Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the oil fired thermal fluid heater could be widely used in a variety of industrial heating process.
1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
2) Food industry - cooking, drying, vegetable oil refining.
3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
4) Plastics industry - plastics fired, extruded shape.
5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
6) Paper industry - drying, corrugated paper processing, calender, glue roller.
7) Wood industry - hot processing, heat setting.
8) Machinery industry - drying, assembly processing
9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry

FAQ
What is the highest temperature that thermal oil heater could achieve?
thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)

What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.
The highest heat resistance temperature of furnace could be about 1700℃~1800℃.

What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
