YY(Q)W series horizontal type oil gas fired thermal fluid heater for Textile printing and dyeing industry​

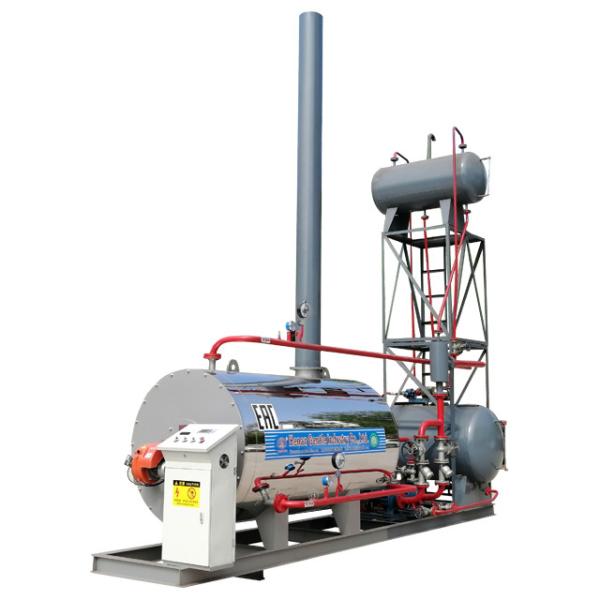

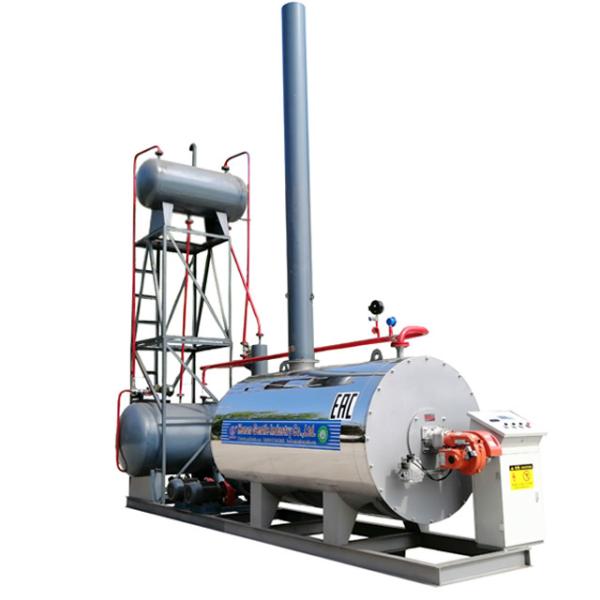

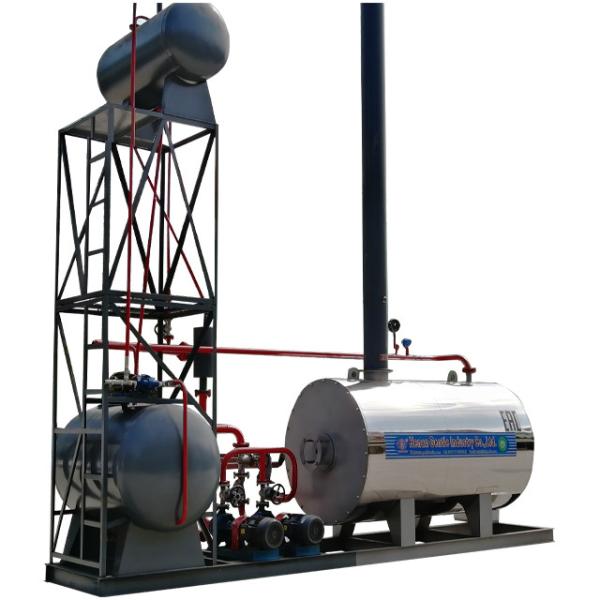

YY(Q)W series thermal fluid boiler heater has skid-mounted design and full automatic control system. The heat carrier is thermal fluid oil, boiler's working pressure ≤1.0MPa, working temperature ≤310℃. Adopting three-pass structure, 3 layer corrugated coil rings.

thermal capacity: 350kw-1400KW
Working pressure:0.8-1.0 MPA
Outlet temperature:320 C
Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil
Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
This series boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.
Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last, the low temperature flue gas discharges to the aerosphere through the chimney.

performance characteristics:
1.Thermal oil boiler is a special once-through type boiler developed on the basis of forced circulation
2.Tthe coil structure ensure sufficient heated surface and a high thermal efficiency.
3.Reasonable structure, complete auxiliary facilities,short installation cycle, easy operation and maintenance, simple boiler layout.
4.The fuel is burnt adiabatically in the combustion chamber, hence it provides easier ignition more sufficient combustion and higher thermal efficiency
5.In addition to thermal oil,light oil, heavy oil, diesel oil, natural gas, coal gas, biomass fuel,pure coal or mixed coal and biomass fuels are available as well.

Technical parameter

The Gas/Oil Fired thermal oil boiler auxiliaries :
oil fired thermic fluid heater hot oil boiler

FAQ
What is the highest temperature that thermal oil heater could achieve?
thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)

What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.
The highest heat resistance temperature of furnace could be about 1700℃~1800℃.

What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
