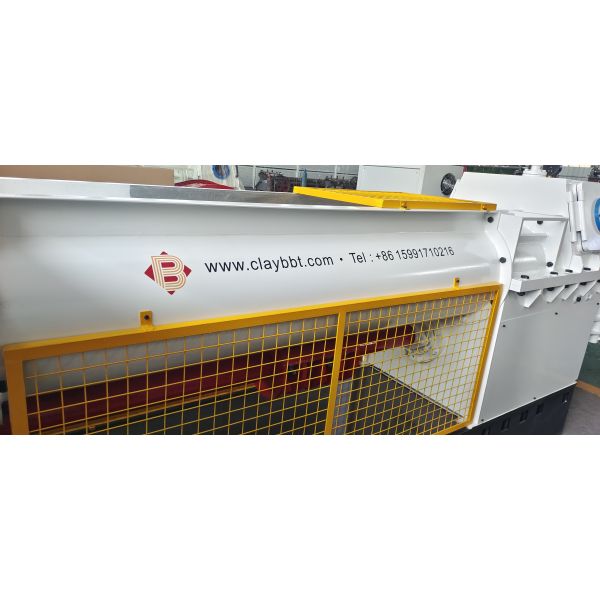

EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
Specifications
Brand Name :
BBT
Model Number :
EV40/35
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set vacuum extruder
Price :
USD 48000~80000 per set
Payment Terms :
L/C, T/T
Supply Ability :
2 sets per month
Delivery Time :
7-10days
Packaging Details :
vacuum extruder by container sea shipment
Brick vacuum extruder :
EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine
External dimension of size :
5500*3000*1600mm
Moulding moisture contents :
16%-21%
Max extruding pressure :
2.2mpa
Motor powers :
75.5kw
Capacity per hour :
3-10 t/hr
Mixing area reamer diameter :
400mm
Extrusion reamer diameter :
340mm
Description

EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine

This vacuum extruder is a key molding equipment for brick production lines, ideal for continuous extrusion of wet clay.
It produces smooth, dense mud bars with high quality and large output. The machine is easy to operate, runs stably and features high reliability.
It can manufacture solid bricks, hollow bricks, porous bricks, hollow blocks and other brick types.
Consisting of an upper mixer, vacuum chamber and lower extruder, the machine body is made of high-quality steel plates with aging treatment for higher hardness and strength. It has a reasonable structure, solid construction, low energy consumption, high efficiency and easy maintenance.
It can also be equipped with a digital automatic monitoring system to ensure stable and continuous operation.

EV40/35 Vacuum Extruder for Clay Brick & Hollow Block Production Line

EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine

EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine

EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine

EV40/35 Vacuum Extruder for Red Clay Bricks & Blocks

Custom designs are available.
BBT is a leading provider of automatic brick production lines featuring double setting and firing technology.
We design, manufacture and supply complete clay brick making machines and production lines.
Our main equipment includes: chain plate box feeder, refining roller crusher, wet pan mill, double shaft mixer, front grid extruder, toothed roller crusher, cutter, robot setting machine, automatic brick loading & unloading system, and kiln cart running equipment.
EV40/35 Vacuum Extruder – Red Clay Brick and Block Making Machine

EV40/35 Automatic Vacuum Extruder for Clay Brick Making Machine

Vacuum extruder machine of technical parameters:

External dimension

Moulding moisture content

Motor capacity

Max extruding pressure

Capacity

Mixing area reamer diameter

Extrusion reamer diameter

Extrusion spindle speed

Mud pressing shaft speed

Mixing shaft material

5500*3000*1600mm

16%-21%

75.5kw

2.2mpa

3-10 t/hr

400mm

 340mm

11rpm/min

14.5rpm/min

40Cr
