Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Specifications
Brand Name :
BBT
Model Number :
TRA-600x1400
Certification :
ISO90011
Place of Origin :
CHINA
MOQ :
1 set
Price :
refer for price list
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15 days
Packaging Details :
Double toothed roller crusher by container sea shipment
Double tooth roller crusher :
Double Toothed Roller Crusher Brick Production Line Equipment
Capacity（ m3/h） :
60-100
Roller diameter（mm） :
590
Roller length（mm） :
1470
Roller gap（mm） :
20
Power（kw） :
75/90
Description

Double Toothed Roller Crusher Brick Production Line Equipment

Toothed Roller Crusher Automatic Brick Factory Raw Material Processing Equipment

Double Toothed Roller Crusher Brick Production Line Equipment

Toothed Roll Crusher | Brick Plant Raw Material Crushing Equipment

The double-toothed roller crusher is designed for crushing medium and low hardness brittle and soft materials, including sintered bricks, coal, cement, silicate, glass and ceramics. The applicable Mohs hardness of raw materials shall not exceed 2.5.
It is suitable for primary crushing of bulk materials with a feed size of 50–300 mm, reducing particle size to 30 mm or below. Its hourly output ranges from 20 to 100 cubic meters, depending on the raw material characteristics.

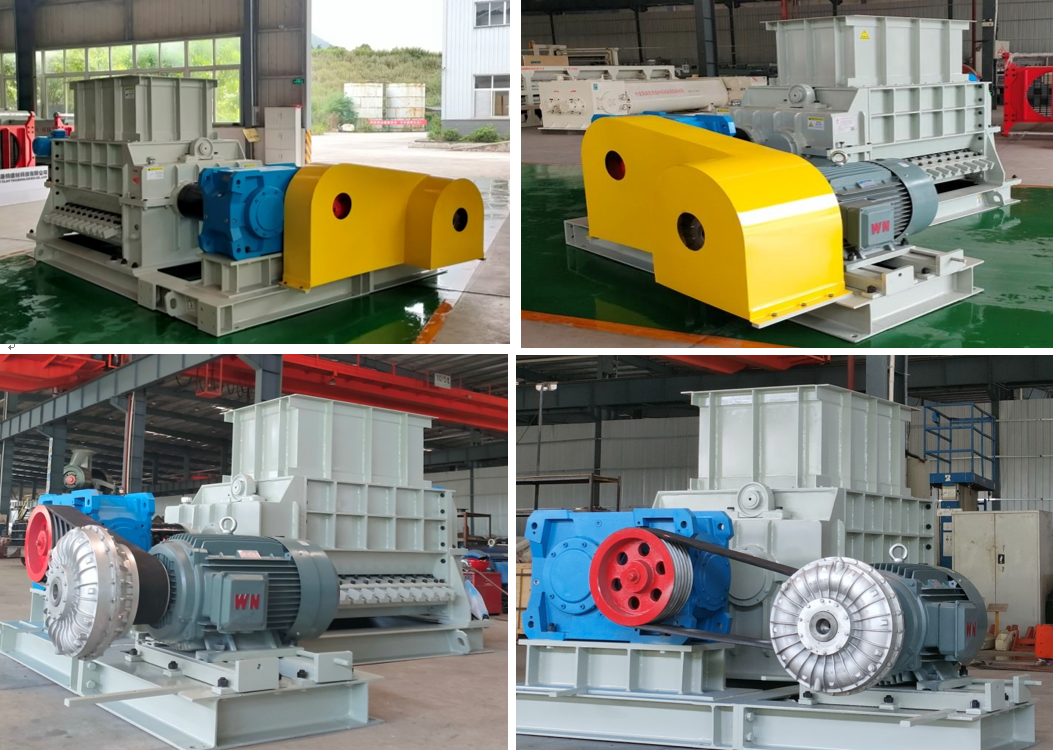

This series of double-toothed roller crushers mainly consists of a motor, reducer, hydraulic coupling, frame, guard plate, gearbox, high-speed and low-speed rollers, and pressure roller assemblies.
The machine adopts a dual-roller rotating structure with a speed difference between the fast and slow rollers, and is equipped with a top pressure roller. By virtue of the counter-rotating movement and speed difference of the double toothed rollers, it efficiently crushes bulk feed materials and delivers superior crushing performance.
Toothed Roll Crusher | Brick Plant Raw Material Crushing Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Double Toothed Roller Crusher Brick Production Line Equipment
Technical parameters:
No. Model TRA-600x1400
1 Capacity( m3/h) 60-100
2 Roller diameter(mm) 590
3 Roller length(mm) 1,470
4 Roller gap(mm) 20
5 Power(kw) 75/90
6 Pressing roller power(kw) 5.5
7 Weight(kg) 18,400

Industrial Toothed Roll Crusher for Automatic Brick Production Line Raw Material Crushing

Double Toothed Roller Crusher Brick Production Line Equipment

Double Toothed Roller Crusher for Automatic Brick Plant

Double Toothed Roller Crusher Brick Production Line Equipment

BBT is a professional provider of full automatic clay brick making production lines and related equipment.

Our main products include:

TCNL series full steel chain box feeder

TWGD series double shaft mixer

GS series roller crusher

TRA series double tooth roller crusher

TWJH series front grid extruding mixer

TWPM series wet pan mill

QTQG series cutter

EV series vacuum extruder

Robot setting machine

Spare parts for brick making machinery

We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
