Specifications
Brand Name :
BBT
Model Number :
GS1412
Certification :
ISO9001
Place of Origin :
CHINA
Brick roller crusher :
Raw Material Fine Grinder Double Roller Crusher Machine Clay Block Production Equipment
Production capacity :
90-120t/h
Roller diameter*width :
1,400*1,200
Tangential speed :
14\12m/sec
Required power :
160+90kw
Approximate weight :
34,000 kg
Description

Raw Material Fine Grinder Double Roller Crusher Machine Clay Block Production Equipment

Raw Material Fine Grinder Double Roller Crusher Machine Clay Block Production Equipment

Fine Pulverizing High Speed Roller Crusher / Roller Mill

This high-speed roller crusher features two rollers running at different linear speeds, delivering combined extrusion, tearing and cracking effects for efficient fine crushing.
The movable roller adopts hydraulic cylinder drive to adjust crushing pressure flexibly for diverse raw materials. The heavy steel plate welded frame ensures high structural strength, strong overload resistance and impact resistance.
Screw adjusting devices on both sides of the fixed roller allow easy position compensation after roller ring wear. The cylinder-driven mud scraper fits tightly against the roller surface for reliable cleaning, with simple maintenance and replacement.
The main unit is mounted on a section steel welded base, with an optional grinding lathe base for convenient roller ring maintenance. Each roller is equipped with an independent stepless speed reduction motor, enabling safe, energy-saving single-roller operation during overhaul without starting the main motor.
Raw Material Double Roller Crusher Clay Block Production Equipment
Raw Material Fine Grinder Double Roller Crusher Machine Clay Block Production Equipment
Fine roller crusher of technical parameters:
Technical Parameters GS8060 GS1080 GS1210 GS1412
Production capacity t/h 30-50 55-75 70-90 90-120
Roller diameter*width mm 800*600 1,000*800 1,200*1,000 1,400*1,200
Tangential speed / m/sec 1412 1412 1412 1412
Required power Kw 37+30 55+75/90 110+75 160+90
Approximate weight Kg 5,900 14,800 23,000 34,000
Total length mm 5,122 6,200 6,800 7,800
Total width mm 1,400 4,000 4,460 6,500
Total Height mm 1,430 1,700 2,860 2,300

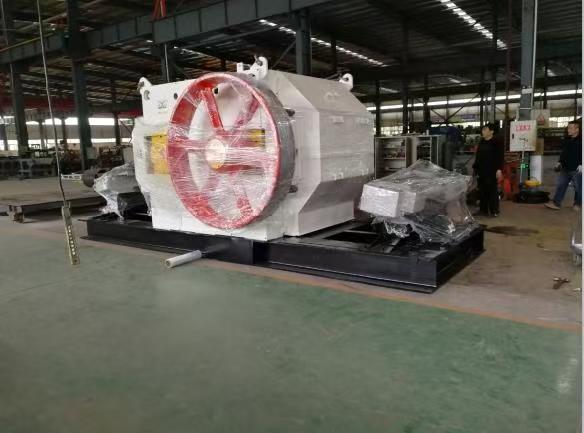

Clay Brick Fine Roller Crusher Machine for shipment

Raw Material Fine Grinder Double Roller Crusher Machine Clay Block Production Equipment

BBT is a professional provider of full automatic clay brick making production lines and related equipment.

Our main products include:

TCNL series full steel chain box feeder

TWGD series double shaft mixer

GS series roller crusher

TRA series double tooth roller crusher

TWJH series front grid extruding mixer

TWPM series wet pan mill

QTQG series cutter

EV series vacuum extruder

Robot setting machine

Spare parts for brick making machinery

We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
