120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
Specifications
Brand Name :
BBT
Model Number :
TCNB1200
Certification :
ISO90001 CE
Place of Origin :
China
MOQ :
1
Price :
USD10,000 to USD30,000
Payment Terms :
L/C,T/T,Western Union,D/P
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
Pallet package, film wrapping
Function :
Clay raw material preparation
Colour :
Grey and red
Maximum capacity :
140 tons/h
Hopper :
Local welding
Type :
Belt conveyor feeder
Special requirement :
Custom building
Quality :
CE certificate offerred
Inspection :
SGS inspection accepted
Working video :
Available
Converter :
Optional
Motor :
SIEMENS or ABB or appointed
Bearing :
SKF or China top brand
Reducer :
SEW or Appointed brand
Dimension :
6715*2900*1950mm
Description

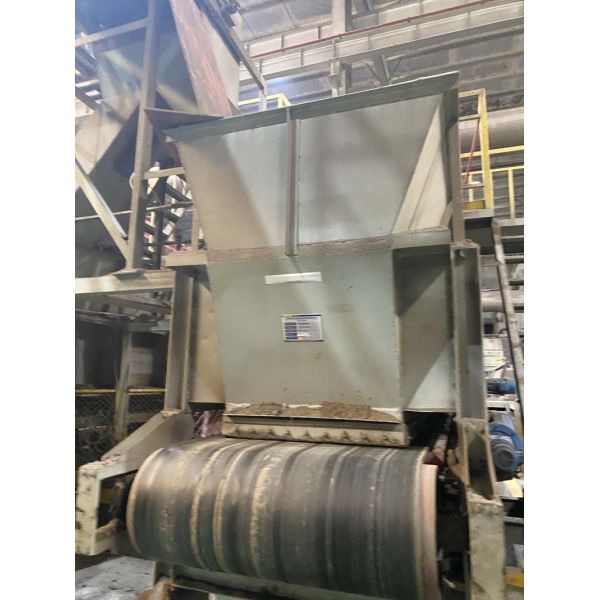

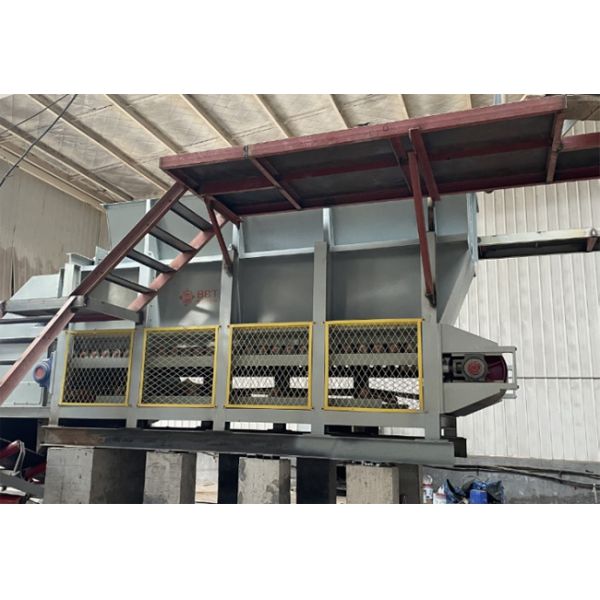

1. Function and usage for belt conveyor box feeder

a. Box feeder is used for uniform quantitative feeding, by adjusting the fixed discharge end, to control
the feed amount of raw materials, and can mix raw materials and internal combustion materials proportionally.
b. The feeding structure of the equipment is composed of motor, reducer, active roller, passive roller,
conveyor belt, etc. The power is driven by the output shaft of the reducer to drive the active roller to run.
The structure is compact, high efficiency and energy saving, the mechanical operation is convenient,
safe and reliable, and the operation is stable.
c. The conveying part is powered by the motor, which drives the reducer to reduce speed and increase
torque. The reducer drives the active roller to rotate and drives the conveyor belt to run. The toggle part
is driven by a reduction motor, the toggle shaft rotates, and the material bar will evenly discharge the mud.

120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine

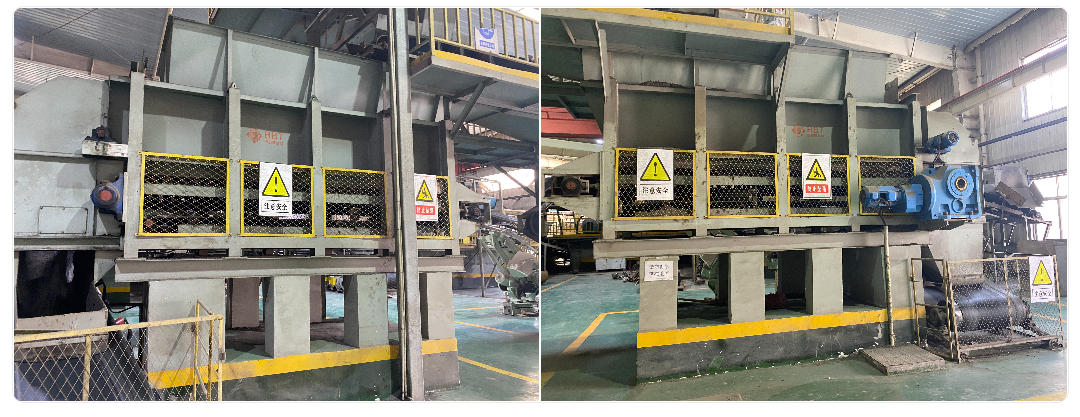

2. Capacity and power for belt conveyor box feeder

Item/Model TCNB800 TCNB1000 TCNB1200
Capacity(m3/h) 15-50 50-80 80-110
Driving drum diameter (mm) 500 500 500
Belt width (mm) 800 1,000 1,200
Roller center distance (mm) 4,500 4,500 4,550
Main drive motor power (kw) 5.5 7.5 7.5
Feed bar transmission power (kw) 3.0 4.0 5.5
Weight (kg) 4,800 5,700 6,100


120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
3. Roller

120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine

Steel roller, both ends are equipped with plastic labyrinth sealing ring, grease will not leak,

bearing long service life; The steel roller with wall thickness of 3mm has stronger impact resistance.

At the same time, the use of domestic well-known brand bearings, reduce the rotation force,

more flexible, stable; Normal service life of 20000h On, generally do not need maintenance.

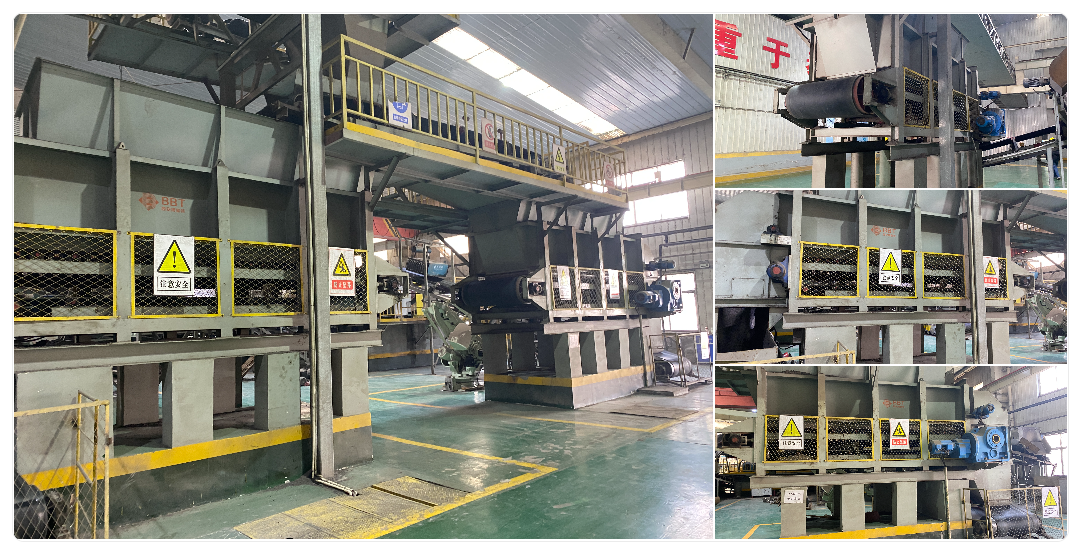

4. Circular conveyor belt

120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine The belt conveyor belt without belt interface, belt operation process in the belt uniform force does not exist uneven force caused by belt cracking; Secondly, annular conveyor belt transport balance, the use of small elongation. The nylon material of the conveyor belt has the characteristics of thin belt body, high strength, impact resistance, adhesion between layers, excellent flexibility and long service life.

120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine

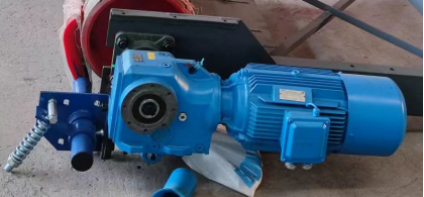

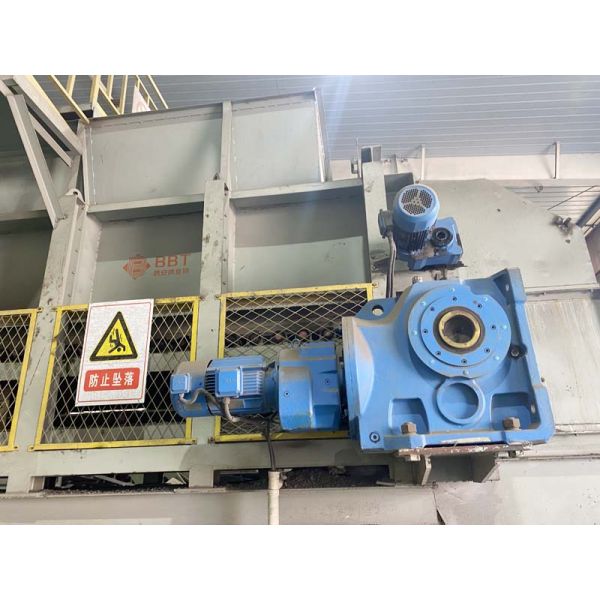

5. Reducer

120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine The reducer can be domestic famous brand Boneng, good quality, long service life; or SEW band or according to customer's requirement


120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
6. Questions and answers

1. What type of raw material will be fed?
Answer: dry clay, wet sticky clay, shale, marl, or recycled scraps).
Moisture content is critical—sticky materials require different belt and hopper designs.
2. What is the maximum particle size can be feeding?
Anwer: 200mm, 300mm clay or particles can be feed.
This determines the belt width and skirt board height.
3. What is the material's bulk density by Cubic meters and tons?
Answer: In clay feeding, it is 1 cubic meter=1.3 tons

4.What is the maximum feeding capacity?
Answer: 150 tons/h at the maximum and special capacity can be custom building.

5. What is the required hopper volume (storage capacity)?
Answer: Hopper capacity can be 10 m³ or 20 m³ or according to requirement.
This dictates how long the machine can feed without a refill from the loader.
6. Are there any height restrictions for loading?

(This affects the overall height of the box feeder and the loader clearance).
Answer: Yes, it is depended on what is the height of the workshop
7. How about a specific hopper lining?
Answer: Custom buildiing.
8. Can the hopper opening wide enough for the loader bucket?
Answer: Yes, it can be designed according to requirement.

9. Site & Integration for customer's checking and confirming:
· Where will the machine be installed? (Indoors or outdoors? This affects the need for weather covers).
· What is the available space? (Length, width, and height constraints).
· What are the electrical specifications? (Voltage, frequency, and phase available on site).

120 Ton/H Grey Belt Conveyor Box Feeder With Hopper For Raw Material Preparation BBT Clay Brick Making Machine
