20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
Specifications
Brand Name :
BBT
Model Number :
GS1080
Certification :
ISO90001
Place of Origin :
China
MOQ :
1
Price :
USD 10000-100000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/year
Delivery Time :
30 days
Packaging Details :
6800*4460*2860mm
Brand :
BBT
Custom building :
Accepted
Colour :
Custom building is accepted
Function :
Clay crushing or bentonite making
Rollers Quantity :
2
Roller Distance :
1 to1.5mm
Shaft :
Can be custom building
Lathe :
Equipped
Roller material :
Alloy
Weight :
24 tons
Description

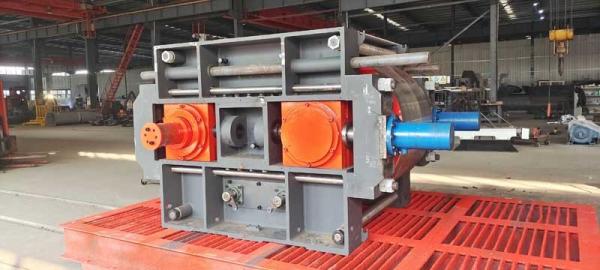

1. New 20 to 100 tons per hour Grey Refine roller crusher roller mill for raw material crushing clay brick making

or bentonite making, custom building

20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making

1. It is using for clay crushing with water content less than 25%;

2. Input diameter of clay below 20 mm and output diameter can be 1-1.5mm;

3. Roller mounting is supported by two hydraulic cylinder brackets;

4. The side frame is a full welded structure which is processed by machine tools to ensure precision and anti-resistance;

5. Two lathes in the front and back can automatically grinds and repairs the rollers.

2. Full structure for refine roller crusher is solid steel structure with hydraulic systems driven

20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making

Model: 800x600 1000x800 1200x1000 1400x1200
1. No.: IBS072-4703 IBS072-4705 IBS072-4707 IBS072-4709

2. Capacity m3 per hour

 23-37 33-42 40-55 50-70
3. Power 30+37 55+75 110+75 160+90+5.5
4. Size(mm) 5000x1400x1430 6230x2010x1635 6800x4460x2860 8680x7300x2260
5. Weight(kg) 5700 14330 22400 34000

3. Rollers for the refine roller crusher

20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making

20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making

1. Hardness for for the surface skin for the roller is 60.7 HRC, which is harder than the standard.

2. Suppliers of rollers are same manufacturer with Verdes, Handle and other European companies;

3. The roller and the hub are separated structure and connected by a wedge key, which is easier to do

the repair and replace the roller；

4. The thickness of the roller skin is 135mm and is designer layer by layer, which 1 layer is wore, the lathe

can repair easily, In the designing, the layer is wear resistance, high strength and easy cutting for repairing;

4. Spherical rolling bearings for refine roller crusher

20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making

5. Lathe for roller repairing

20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making

6. Motor installed on the refine roller crusher is famous brand

20 to 100 tons/h Grey Refine roller crusher roller mill for raw material crushing clay brick making bentonite making
