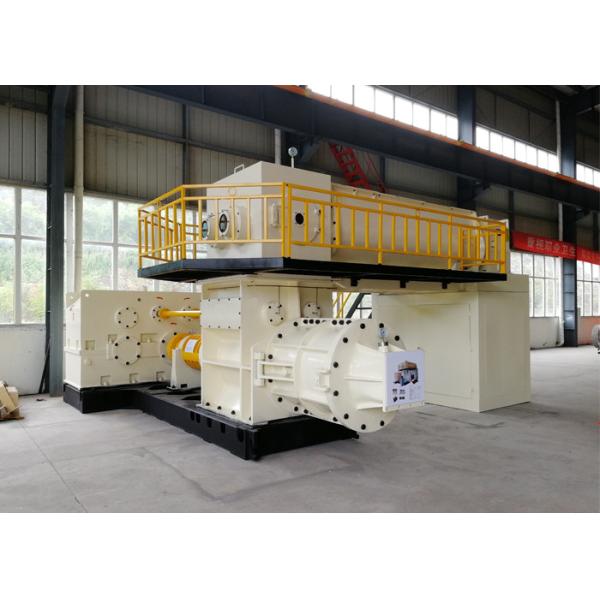

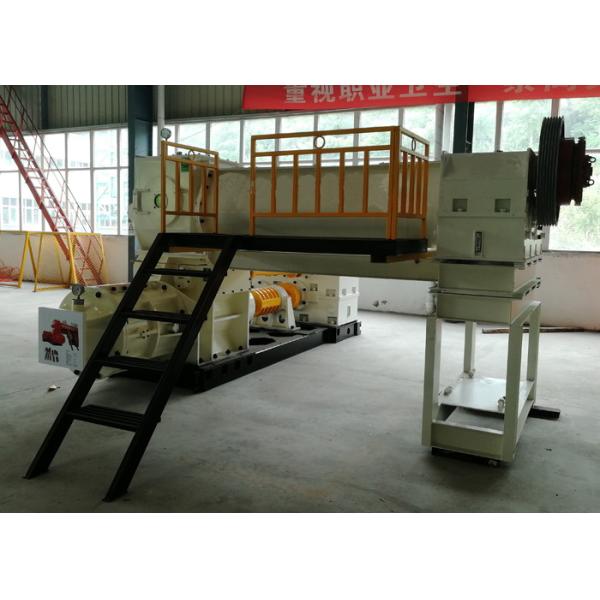

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
Specifications
Brand Name :
BBT
Model Number :
EV
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15-20days
Packaging Details :
automatic brick making machine by container sea shipment
Price :
Negotiation
BRick :
Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
Brick Making :
vacuum extruding machines
Brick types :
solid, hollow
Brick materials :
soil, clay ,mud etc
Brick moisture contents :
16-17%
Brick drying system :
single layer dryer chamber
Brick firing of kiln :
tunnel kiln brick project
Description

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine

Vacuum extruder clay brick making machines bricks molding extruding machine

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine

EV Series Double Stage Vacuum Extruder

  1. Max vacuum extrusion pressure reaches 4.0MPa for high-density clay bricks.
  2. Suitable for raw materials with low moisture 13%–17%.
  3. Supports production of large-hole hollow bricks, B8 and B12 large blocks.
  4. High output capacity with excellent finished brick quality.
  5. Perfect match for brick production lines, tunnel dryer chamber and tunnel kiln process.

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine

EV full automatic brick making machine technical of parameters:

Specification Model Throughput (pcs/hr) Rotate Speed of Principal Axis (turn/m) Power Requirements (kw) Exterior Dimension (mm)
EV45/45F-30 10000-14000 42/34 Y6-45/90 6210*1560*2350
EV45/45D-35 10000-13000 35/30 Y6-45/110 6370*1910*2350
EV50/50C-32 11000-16000 35/30 Y6-55/132 6730*1880*2540
EV50/50B-35 11000-16000 38/25 Y6-55/160 6750*1880*2540
EV50/50B-38 11000-16000 38/25 Y6-55/160 6750*1880*2540

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine

BBT also provides a full range of clay brick making machines, supporting equipment and turnkey brick production projects, including:
  • Brick Box Feeder
  • Belt Conveyor
  • Roller Crusher
  • Fine Grinder
  • Double Shaft Mixer
  • Filter Mixer
  • Vacuum Brick Extruder
  • Automatic Brick Cutter
  • Automatic Loading System
  • Brick Drying Chamber
  • Brick Tunnel Kiln
  • Brick Stacking Machine
  • Brick Setting Machine
  • Brick Packaging Machine

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine

Fully Automatic Vacuum Extruder Brick Making Machine - Soil Clay Fly Ash Brick Making Machine
