30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers
30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers
30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers
30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers
30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers
30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers
Specifications
Brand Name :
BBT
Model Number :
PM185
Certification :
ISO9001, CO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets/year
Delivery Time :
2 month
Packaging Details :
Standard package for shipment by sea, railway and truck
Function :
bentonite raw material preparation
Supporting frame :
Cement frame is available for supporting
Industry :
Mining of bentonite
Raw material :
Clay of bentonite
Equipment 1 :
Chain plate box feeder
Equipment 2 :
Extruding mixer
Equipment 3 :
Tooth roller crusher
Equipment 4 :
Wet pan mill
Equipment 5 :
Front grid extruder
Processing technology :
Available to provided
Equipment Design :
Available
Description

1. 30-70 ton/h Wet pan mill for bentonite making or bentonite raw material preparation

Wet pan mill is a kind of bentonite preparation equipment, which is using for raw material crushing

in the process of bentonite making or preparation

30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers

Bentonite preparation or bentonite raw material treatment refers to drying the bentonite to a moisture

content of less than 15%, then removing the stones, and crushing it to 100-200 mesh.

The weathered bentonite does not need to be crushed.

If the bentonite has the high sand content, need to remove sand

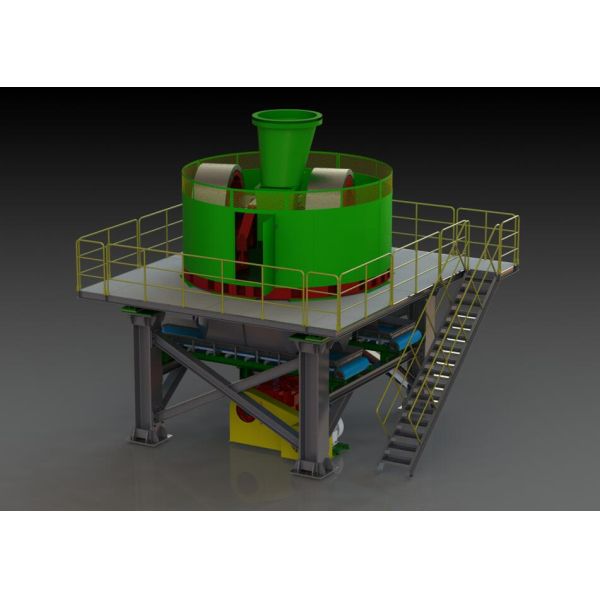

2. Structure of 45-60 m³/h Wet pan mill for clay brick making line materials crushing

machine mill roller machine

30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers

The structure of the wet mill pan is simple therefore it is easy to do the maintaining.

There is no strict requirement about the size of feeding material.

It is heavy with reasonable structure, so when the equipment into running, it is more safety, stable

and anti-impacting.

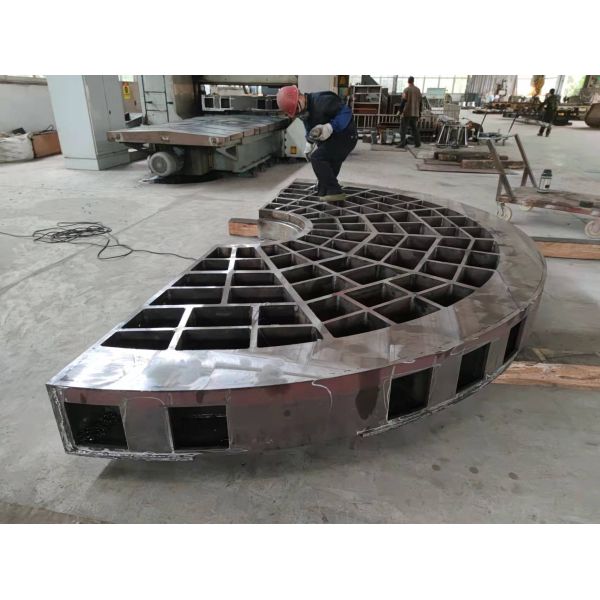

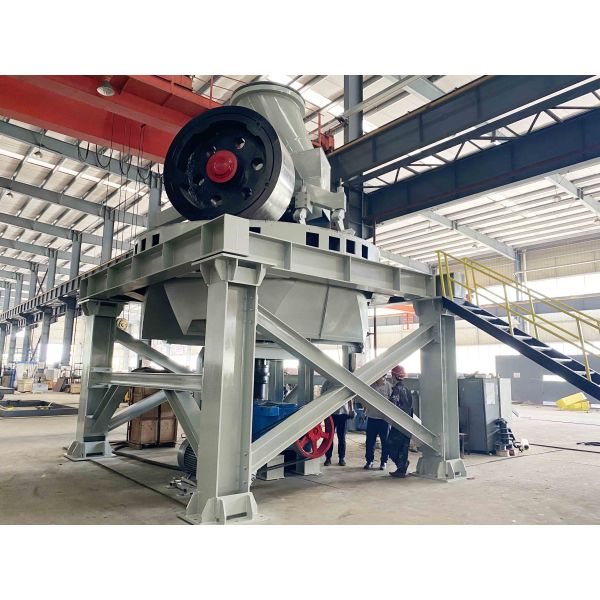

3. Production in BBT workshop for Wet pan mill for bentonite making or bentonite raw material

preparation

30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers

There is polyurethane shock-absorbing pad between the platform and reducer, which is used to absorb

the impact force and vibration of the equipment during operation.

Note: Structure supporting and maintenance platform are optional and customers can weld in the local.

Cement supporting frame is also can be done in the local with drawings supporting from BBT.

4. Main shaft for 30-70 ton/h Wet pan mill for bentonite making or bentonite raw material preparation


The main shaft is made of alloy steel forgings, and has been heat treated, which has high strength;


Fatigue resistance and can bear large radial eccentric forces.


5. Technical specifications for 430-70 ton/h Wet pan mill for bentonite making or bentonite raw

material preparation

No. Item PM185
1 Roller size 1,850*700mm diameterxwidth
2 Rotate speed for main shaft ≥13 rpm
3 Motor Power 98 kw
4 Inner roller weight: 8,500 kg
5 Outer roller weight: 12,750 kg
6 Diameter for screen hole Customized building
7 Production capacity 45-60 m³/h
8 Total weight of equipment 56,000 kg
9 Dimensions 6,700*6,400*6,460mm



6. Questions and answers for 45-60 m³/h Wet pan mill for clay brick making line materials

crushing machine mill roller machine

a. Which part the refine roller crusher is using for please?
Answer: The high speed refine roller crusher is using after primary roller crusher in the production

line of clay brick making.

b. How long of the guartee time for the high speed roller crusher?
Answer: 1 year

c. If installation drawings is provided when the refine roller crusher is installed?
Answer: Drawings are provided when order is confirmed.

d. Training operation for the high speed roller crusher is provided or not?
Answer: Yes, it is.

e. Spares for refine roller crusher is provided or not?
Answer:Yes, it is.

f. Online inspection for the high speed roller crusher is available or not?
Answer: Yes, it is.

g. Shipment by railway, by truck and by sea are available or not?
Answer: Yes it is

7. Pictures for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine


7. Other equipment of tooth roller crusher and front grid extruder in BBT's workshop
30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers

8. Teams from BBT

30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers

Any interested pls advise.

XI'AN BBT CLAY TECHNOLOGIES CO.,LTD

Noda Pan

General manager

nodapan@claybbt.com

WA/wechat+86 177 9142 2086

www. claybbt.com

www.claybricksmakingmachines.com

www.claybbt.ru

YouTube: https://www.youtube.com/@BBTChina

Facebook: https://www.facebook.com/bbt15/

Linkedin:https://www.linkedin.com/in/noda-pan-56a524236/

30 - 70 Ton/h Wet Pan Mill For Clay Brick Making and Bentonite Making Raw Material Preparation with 2 rollers
