Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Specifications
Brand Name :
BBT
Model Number :
TRA
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
10~15days
Packaging Details :
double tooth roller crusher machine by container sea shipment
Item :
Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment
Model :
TRA-400
Capacity :
35-50（ m3/h）
Roller diameter :
400（mm）
Roller length :
1130（mm）
Roller gap :
16（mm）
Power :
45/55（kw）
Pressing roller power :
3（kw)
Weight :
9600（kg）
Description

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

clay blocks factory raw materials crushing roller machine roll crusher price machine roller crusher supplier BBT China

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

TRA400 model double toothed roller crusher is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.

The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain.

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Working Principle & Structural Characteristics of Double Toothed Roller Crusher

The double toothed roller crusher crushes bulk materials primarily through splitting, squeezing and shearing force generated by two toothed rollers rotating at differential speeds.
It adopts a fast-slow differential roller rotation structure, with a compression roller installed on the upper section. Relying on the counter-rotation of the dual toothed rollers, the equipment continuously crushes incoming lump materials.
The motor connects to the reduction gearbox via a hydraulic coupler and coupling. The gearbox adjusts the rotating speed and running direction of the two toothed rollers to form a reasonable speed difference, greatly enhancing crushing performance and material processing efficiency.
Equipped with bottom scraper devices, it effectively prevents material adhesion and jamming inside the roller grooves. This design ensures stable operation, improves overall working efficiency, and extends the service life of the equipment.

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Roller crusher machine double tooth rolling crusher of technical parameters:

Item Model Production capacity Rotating speed Weight Dimension Power
Data TRA400*1000 30-45m3/hr 30/22rpm 8800kg 3580*2500*1850mm 45+4KW

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Double toothed roller crusher machinery for clay brick tunnel kiln project

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

Double toothed Fine Rock Roller Crusher Price clay brick factory double roller crusher of shipment

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

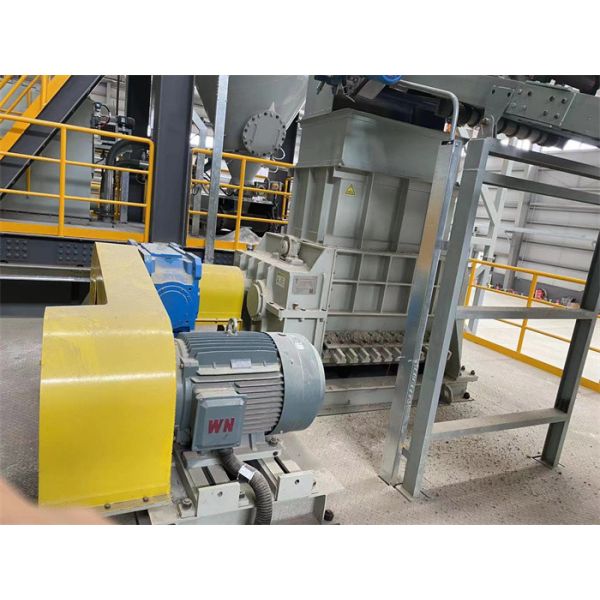

Double tooth roller crusher installation in auto brick making project

Brick Factory Roller Crusher, Clay Block Raw Material Double Roll Crushing Equipment

BBT is a professional provider of full automatic clay brick making production lines and related equipment.

Our main products include:

TCNL series full steel chain box feeder

TWGD series double shaft mixer

GS series roller crusher

TRA series double tooth roller crusher

TWJH series front grid extruding mixer

TWPM series wet pan mill

QTQG series cutter

EV series vacuum extruder

Robot setting machine

Spare parts for brick making machinery

We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
