Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
Specifications
Brand Name :
Brictec
Model Number :
QPJ-I
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 24,000—USD 32,000
Payment Terms :
L/C, T/T
Supply Ability :
Customized
Delivery Time :
80 days
Packaging Details :
Customized
Max Cutting Width :
1200 mm
Automatic :
Yes
Cutting Frequency :
12-45times/min (VFD Adjustable)
Warranty :
1 Year
Processing :
Cutting Setting Conveying System
After-sales service provided :
Engineers available to service machinery overseas,Online support,Field maintenance and repair service,Field installation,commissioning and training
Voltage :
380V,220V,220/240/380/440V,it depends on exact conditions,Adjustable
Installed power :
11 kw
Description

Product Description

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable

1 Equipment Introduction

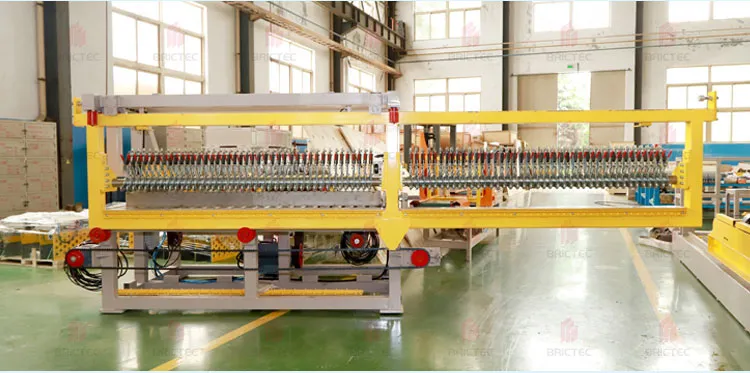

The twin-screw frame wire-cutter is a wire-cutting device driven by two synchronized ball screws, moving the cutting frame vertically to slice wet clay, shale or coal-gangue bricks to exact length.

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable

2 Application in Clay Brick Plant
Positioned downstream of the extruder, it converts the continuous clay column into uniform brick blanks before stacking, drying and firing.

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable

3 Function
The high-rigidity twin-screw drive ensures all cutting wires move simultaneously at identical speed and position, giving synchronous, distortion-free cuts.

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable

4. Comparison with Synchronous Cutter

Item Twin-Screw Frame Synchronous Cutter
Drive Mechanical twin screws Servo motor + linkage
Wire qty Up to 20 wires, single break replaceable Usually fixed set
Wire-break protection Single break continues running Requires full stop
Maintenance Modular quick change Complex linkage adjustment

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable

5 Cutting Advantages
• If one wire breaks, the rest keep working-non-stop production;
• Cutting accuracy ≤ ±1 mm with clean edges;
• Modular frame allows full wire set change in 10 min;
• Wear-resistant screws last ≥30,000 h maintenance-free.

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable

6 Key Specifications
• Max cutting width: 1,200 mm
• Cutting frequency: 15-45 cuts/min (VFD adjustable)
• Installed power: 11 kW
• Brick types: solid, perforated, hollow and pavers

Clay Brick Cutter Twin-Screw Frame Wire-Cutting Machine With VFD Adjustable
