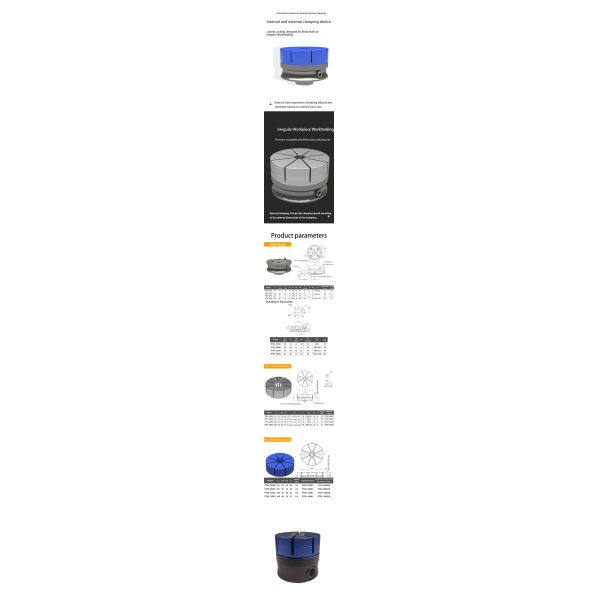

High Precision OD Clamp OD Expansion Mandrel For Outer Clamping
High Precision OD Clamp OD Expansion Mandrel For Outer Clamping
High Precision OD Clamp OD Expansion Mandrel For Outer Clamping
High Precision OD Clamp OD Expansion Mandrel For Outer Clamping
High Precision OD Clamp OD Expansion Mandrel For Outer Clamping
High Precision OD Clamp OD Expansion Mandrel For Outer Clamping
Specifications
Brand Name :
ADJIG
Model Number :
PT60/PT61/PT62
Place of Origin :
Chongqing, China
MOQ :
2
Price :
Collet: RMB 80 -140 USD per piece; Base: 450-630 USD per piece
Payment Terms :
T/T,L/C
Supply Ability :
Less than 10 pieces, shipped within 17 days. More than 10 items will be shipped within 30 days.
Delivery Time :
15-17 days
Packaging Details :
Carton/wooden crate
Ontology :
S45C
Pull-down shaft :
SCM415
Camshaft :
SCM435
Tightening torque (N.m) :
15/25/40
M1 :
M8*1.25/M10*1.5/M12*1.75
Weight(Kg) :
0.8/1.7/3.5/7.1
Clamping force :
4500/7000/10000/12000
Clamping stroke :
φ0.3
Description

High-Precision OD Expansion Mandrel for CNC Workholding Outer Clamping

Form Holding Clamps with a machinable jaw are perfect for irregular-shaped workpieces.


Simple workholding on external/internal form eliminates the need for custom fixtures.

This High-Precision OD Expansion Mandrel delivers exceptional accuracy for external clamping applications in CNC workholding. Engineered with a precision-ground expansion mechanism, it provides uniform radial pressure to securely grip cylindrical workpieces from their outer diameters with vibration-free stability. The mandrel ensures perfect concentricity within microns, eliminating runout for critical external machining operations. Ideal for machining shafts, cylinders, and precision rotational components, its quick-expansion design dramatically reduces setup time while maintaining consistent clamping force throughout production cycles. Manufactured from hardened, heat-treated steel, this robust tool guarantees long-term reliability and dimensional stability, making it indispensable for high-volume precision turning, grinding, and milling applications requiring flawless external clamping.

Model D H
(±0.01)		 D1
(g6)		 H1 M H2 DP P
(±0.02)		 W H M1
PT60-06501 65 35 28 12 M6 27 42 22 8 12 M8*1.25
PT60-09001 90 40 42 14 M8 30 60 30 14 M10*1.5
PT60-12001 120 45 55 18 M10 33 80 43 10 16
PT60-16001 160 60 63 24 M12 36 110 30 18 M12*1.75

Model d1
(h7)		 Lf d2
(G7)		 Lf1 p1
(±0.02)		 M2 Dp1
PT60-06501 28 13 6 6 22 M6*1 42
PT60-09001 40 15 8 8 30 M8*1.25 60
PT60-12001 55 19 10 11 43 M10*1.5 80
PT60-16001 63 25 12 13 60 M12*1.75 110

Model D d H1 H2 M H M1 D1 T Weight(KG) Applicable Fixture
PT60-06501 65 21 25 10 M8*20L For Width 5 29 M5*0.8 20 4 0.2 PT60-06501
PT60-09001 90 25 35 15 M10*20L For Width 6 40 M6*1 24 5 0.5 PT60-09001
PT60-12001 120 25 40 20 M10*25L For Width 6 46 M6*1 24 5 1.1 PT60-12001
PT60-16001 160 29 45 25 M12*25L For Width 8 52 M8*1.25 28 6 2.2 PT60-16001
