100Nm Self Centering Vise Clamp For CNC Machining Workholding
100Nm Self Centering Vise Clamp For CNC Machining Workholding
100Nm Self Centering Vise Clamp For CNC Machining Workholding
100Nm Self Centering Vise Clamp For CNC Machining Workholding
100Nm Self Centering Vise Clamp For CNC Machining Workholding
100Nm Self Centering Vise Clamp For CNC Machining Workholding
Specifications
Brand Name :
ADJIG
Model Number :
JYSCV-M80130
Place of Origin :
Chongqing, China
MOQ :
1
Price :
660 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Name :
Self centering vise
Clamping Force (kN) :
20
Max. Fastening Torque (N·m) :
100
Main Body Material :
Alloy tool steel
Weight (kg) :
3.6
Forward/Reverse Clamping :
6-85
Repeatability(mm) :
0.01
Latin spacing(mm) :
52
Application scenarios :
Suitable for five axis quick change fixtures
Unlocking method :
Manual
Description

High Precision Self-Centering Vise for CNC Machining CNC Workholding

This High Precision Self-Centering Vise delivers exceptional accuracy and efficiency for CNC machining applications. Engineered with a precision ground screw and hardened guide rails, it ensures automatic, simultaneous jaw movement that centers workpieces with micron-level repeatability. The robust construction withstands heavy cutting forces while maintaining perfect parallelism and alignment. Ideal for high-volume production and repetitive tasks, this vise significantly reduces setup time to seconds while providing vibration-free clamping security. Its versatile design accommodates various workpiece sizes with unwavering accuracy, making it an essential workholding solution for manufacturers seeking to maximize productivity and part quality in demanding CNC machining environments.

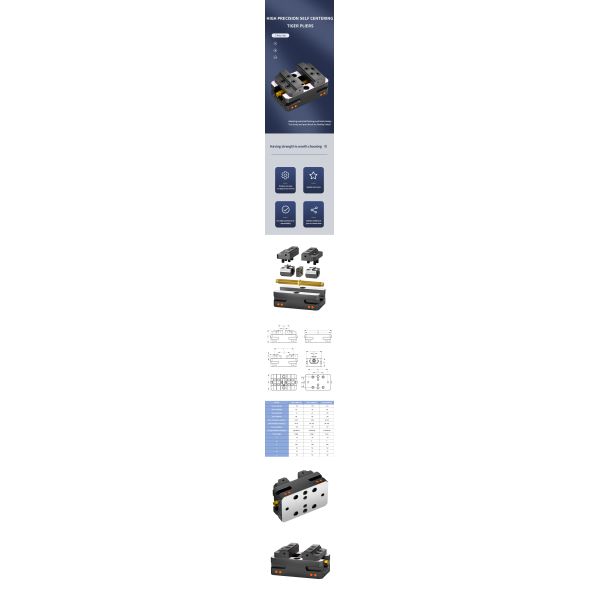

Model JYSCV-M80130 JYSCV-M80170 JYSCV-M90210
Base length(d) 130 170 210
Base height(h) 43 43 43
Claw height(P) 21 21 26
Claw width(Q) 80 80 90
Claw clamping range(b-a) 6-55 6-95 6-135
Claw clamping range(j-i) 38-85 38-125 38-165
Screw length(c) 138 178 218
Long(c)*Wide(e)*Height(o) 138*80*64 178*80*64 218*90*69
Total weight 3.6kg 4.4kg 6.3kg
f 10 10 10
g 5 5 5
k 100 100 100
i 52 52 52
m 57 57 57
n 52 52 52
