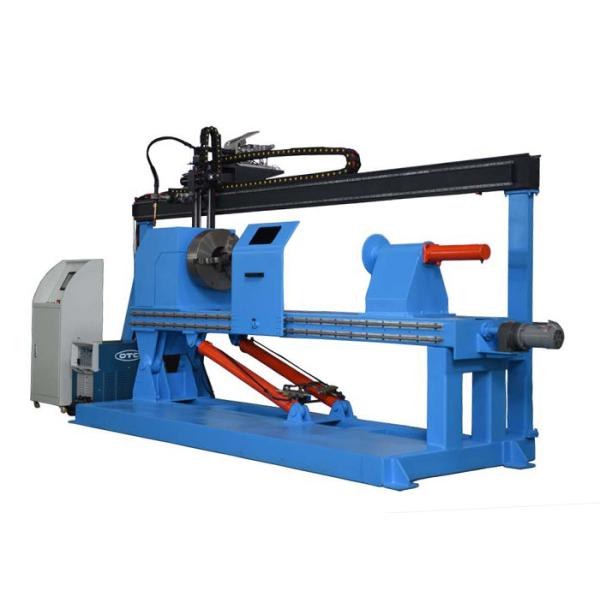

3000mm Automatic Welding Machine
3000mm Automatic Welding Machine
Specifications
Brand Name :
JINHUA
Model Number :
HF3000
Place of Origin :
WUXI
MOQ :
1 Unit
Price :
USD+2000-50000+Unit
Payment Terms :
T/T
Supply Ability :
30+Unit+Per Month
Delivery Time :
15-60 Days
Packaging Details :
Wooden Box Package
Advantage :
Automatic Welding
Material :
Carbon Steel, Alloy Steel
Condition :
New
Color :
Yellow, Blue, Customized
Usage :
Weld Hydraulic Cylinder Flange
Industries :
Cement, Steel, Mining, Power, Security, Agriculture, Recycling
Voltage :
220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage)
Machine Type :
Hydraulic Cylinder Flange Automatic Welding Machine
Description

Multifunction Automatic Pipe Welding Machine

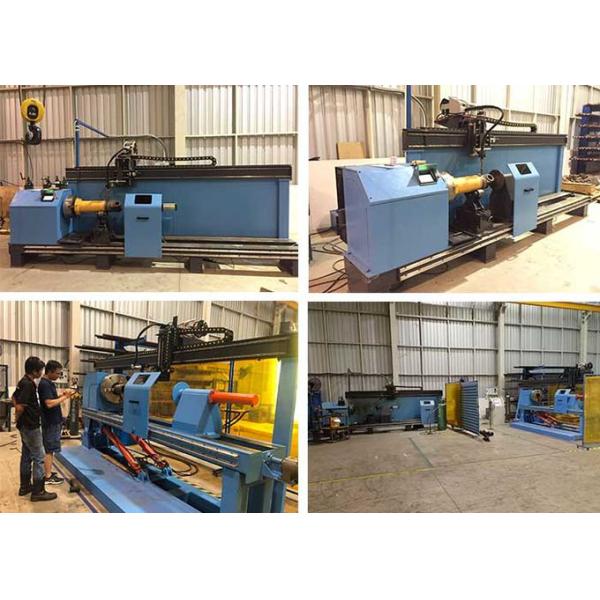

Automatic standard pipe welding station consists of welding manipulator, elbow welding machine, self centering welding positioner and pipe supporting device. It is able to realize automatic pipe welding with root pass, fill and cap pass realized in the same one machine, no need to change to another station, reduce the handling works, and maximazed the efficiency.

Instruction of Equipment
1. Workpiece Loading & Unloading Method: Manual
2. Locating Method of The Workpiece: Self-centering chuck in the left clamp the workpiece to locate the center of rotation by manual.
Two supporting racks locate the center of the workpiece and rotate together with the workpiece coaxially. Pneumatic tailstock is equipped in the right end, the centre of the tailstock sustain the workpiece gyration.
3. Methods For Welding: Single torch gas shielded arc welding, automatic single-layer welding or multi-layer welding can be achieved once. Single-layer & single-pass welding, multi-layer & single-pass welding, multi-layer & multi-pass welding can be achieved full automatically.
4. The one end of the workpiece must be clamped and another end has an inner bore. The outer diameter can be supported by the contact rollers to locate the centre of the workpiece. (can weld workpiece while only the chuck clamp it directly or the chuck clamp it and the tailstock press it or the chuck clamp it and the contact rollers support it)

Main Technical Parameters

Model Name HF3000
Rated Load Capacity 2T
Workpiece Length Range ≤3000mm
Workpiece Diameter Range φ50-φ500mm
Rotating Speed of The Main Spindle 0.19-2.2r/min
Elevating Stroke of The Torch 300mm
Manual Adjusting Range of The Torch X:≥50mm Y:≥50mm
Turnover Angle of The Workpiece 360°
Pressure of The Compressed Air 0.3～0.6MPa
Rated Welding Current 500A
Welding Centre Height 950mm
