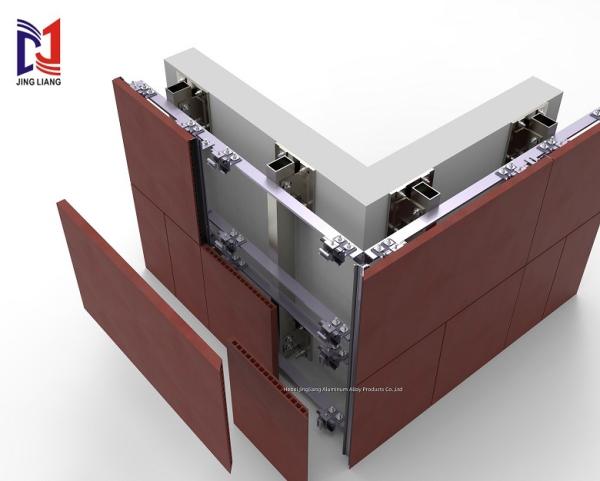

Reverse hook ventilated facade support system is an innovative terracotta panel cladding support system, which realizes safe and efficient assembly through a special mechanical locking structure. System composition is as fellows:

Reverse hook system‌: The back of the terracotta panel is pre-processed with an inverted trapezoidal groove (8-12mm deep), which forms a mechanical bite with the elastic hook of the aluminum alloy clip. The horizontal constraint force is ≥3.5kN/m, and ±5mm vertical displacement is allowed to compensate for thermal deformation; the single terracotta panel can be disassembled independently, which is convenient for maintenance‌

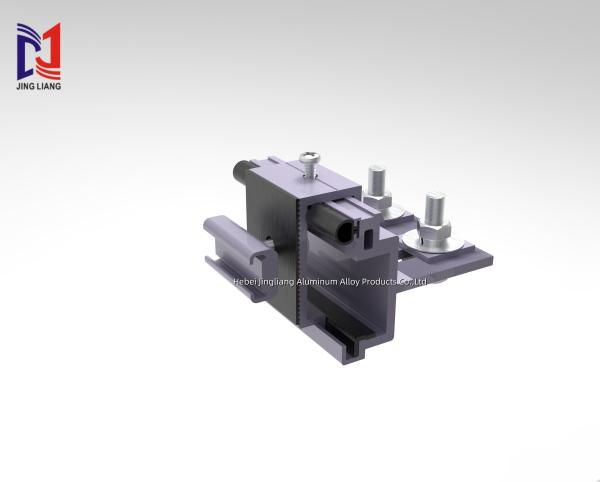

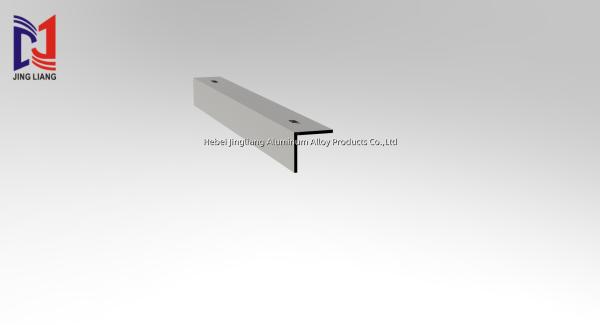

Three-dimensional adjustment design‌: The aluminum alloy clip and the angle steel connector are connected by stainless steel bolts. The horizontal oblong hole design realizes horizontal adjustment, and the vertical bolt adjusts the height to meet the installation accuracy requirements‌

Features:

Strong points:

it is adapt to extreme climates regions due to its design of 1200℃ sintered ceramic panels (water absorption rate <6%) + anti-corrosion hooks,making it suitable for coastal high salt fog areas .

It it available for complex modeling-Supports 30° inclination angle installation and curved surface modeling

‌Green energy-saving integration‌: Hollow layer combined with open splicing, natural ventilation reduces air conditioning energy consumption by 40% ‌

Applications:

Support and Services:

Our terracotta ventilated facade support system product comes with comprehensive technical support and services to ensure proper installation and long-term performance. Our team of experts can provide assistance with design, product selection, and installation details to ensure that your project meets all safety and code requirements. Contact us for more information about our technical support and services.

Packing and Shipping:

Our products will be packaged reasonably, and considering environmental protection, we choose low-carbon and pollution-free packaging materials.Our products are packaged in custom-made package that are designed to protect the product from damage during transportation.

The system is shipped using reliable and reputable shipping companies to ensure timely and safe delivery. Our team carefully monitors the shipping process to make sure that your order arrives in perfect condition.
We offer various shipping options to accommodate your specific needs, including ground, air, and sea transportation. Our team will work with you to determine the best option.
