Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Specifications
Payment Terms :
L/C, T/T
Surface :
Mill finish, Anodizing, Coating
Installation :
Easy
Model Number :
JL-T-X067
MOQ :
200 pcs
Delivery Time :
15 working days
Warranty :
10 years
Brand Name :
Jingliang
Packaging Details :
Cartons packaging
Price :
Negotiable
Model :
JL-T-X067
Supply Ability :
20000 per 15 working days
Material :
Aluminum 6063,6061.6005,Custimized
Certification :
ISO
Applicaiton :
Terracotta Facade Support
Place of Origin :
China
Description

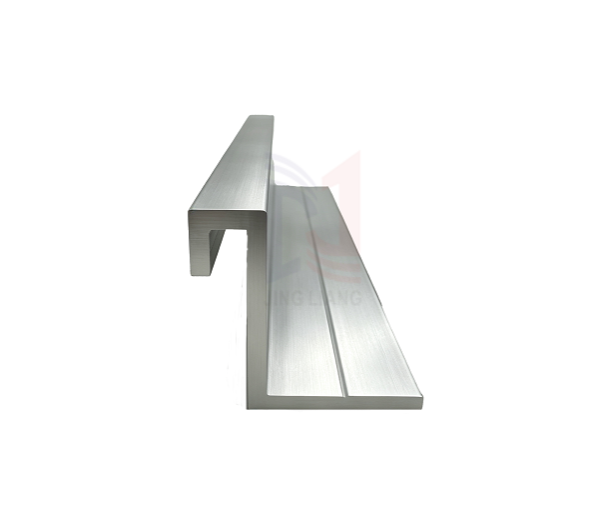

Anti-corrosion and Easy Installation Aluminum Rail for Facade Support System
The special aluminum rail for ceramic brick facade is a horizontal load-bearing component of ventilated ceramic brick facade systems. It is designed to support ceramic tiles or ceramic bricks and is fixed to the vertical main rail. The material used is 6063-T5/6063-T6 architectural extruded aluminum alloy, which is a standard grade in the curtain wall industry.
Standard surface treatment includes anodizing (original color brushed finish), with powder coating and PVDF coating also available. The anodized film enhances salt spray corrosion resistance for improved durability.
Anti-corrosion and Easy Installation Alumium Rail for Facade Support Systm
Key Features
  • Lightweight and High Strength: Aluminum alloy density of 2.7g/cm³ significantly reduces building load compared to steel frames; extruded shape provides excellent bending resistance to meet wind load and self-weight requirements.
  • Corrosion Resistance and Anti-Aging: Anodized/painted surface prevents rust in outdoor environments, suitable for coastal areas with high salt spray exposure.
  • Precise Extrusion Forming: Integrated extrusion manufacturing ensures high precision of slot and bending dimensions, perfectly matching ceramic board hangers; built-in slots facilitate easy hanger positioning and installation.
  • Ventilation Curtain Wall Adaptation: When paired with vertical framing, creates a ventilation cavity between wall panels and structure, facilitating drainage, heat dissipation, and reducing condensation to protect the main structure.
  • Construction and Maintenance Advantages: Long materials cut to fixed lengths for on-site assembly; dry hanging construction eliminates wet work; individual ceramic boards can be independently disassembled and replaced for convenient maintenance.
Applications
Exterior Ceramic Tile (Ceramic Brick) Panels: Primarily used for office buildings, commercial complexes, hotels, and hospital facades.
Large-sized Ceramic Sheets, HPL Panels, Fiber Cement Panels: Compatible with various external cladding materials for ventilation facades.
Large-scale Interior Decorative Walls: Suitable for ceramic tile installations in lobbies and exhibition halls.
Technical Support and Services
Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.
Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
