Competitive Price Steel Embeded Plate for Facade Support System
Competitive Price Steel Embeded Plate for Facade Support System
Competitive Price Steel Embeded Plate for Facade Support System
Competitive Price Steel Embeded Plate for Facade Support System
Competitive Price Steel Embeded Plate for Facade Support System
Competitive Price Steel Embeded Plate for Facade Support System
Specifications
Delivery Time :
15 working days
Surface :
Galvanizing, Power coating
Model Number :
100*100*10mm
MOQ :
200 pcs
Packaging Details :
Cartons packaging
Supply Ability :
20000 per 15 working days
Model :
100*100*10mm
Warranty :
10 years
Price :
Negotiable
Application :
Exterior wall Decoration
Installation :
Easy
Certification :
ISO
Place of Origin :
China
Material :
Stainless Steel Q235B,304,316
Brand Name :
Jingliang
Description

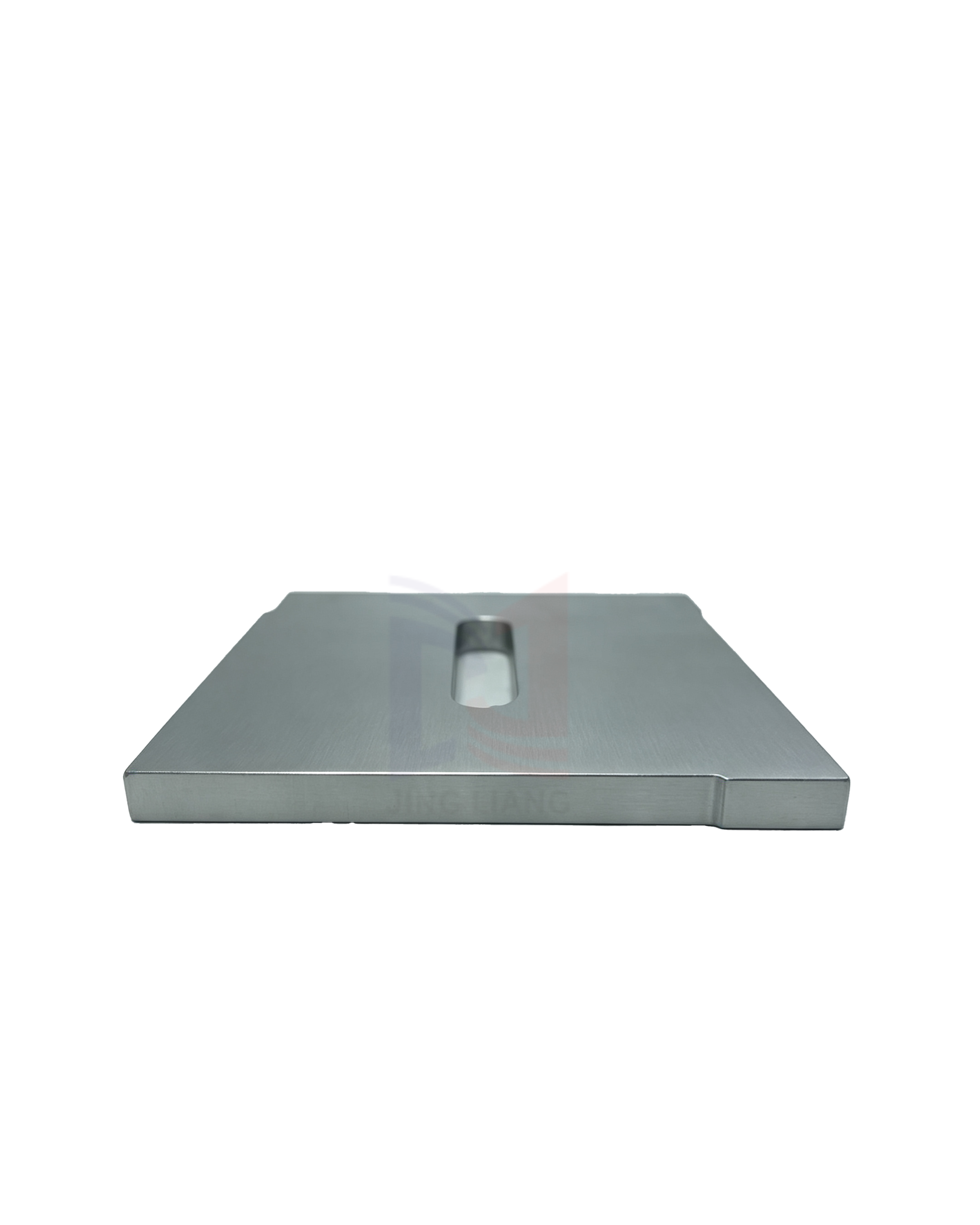

Competitive Price Steel Embedded Plate for Facade Support System
This 100×100×10mm embedded plate serves as a pre-embedded connection component for facade steel structures, widely used in facade support systems, steel structures, doors and windows, railings, and steel structure support projects.
Key Functions

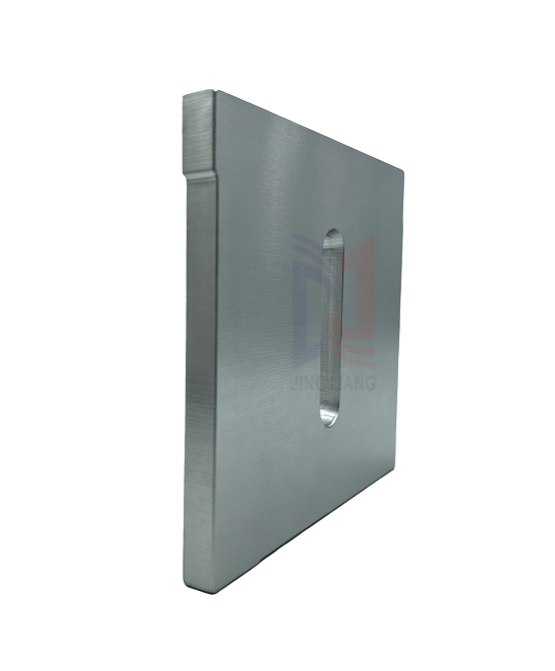

During concrete pouring, the plate is embedded into the main structure to serve as the load-bearing base for post-installed supports and angle codes. The elongated round hole allows for fine adjustments in both forward-backward and left-right directions, compensating for construction deviations and facilitating on-site installation alignment. The hot-dip galvanized coating isolates moisture, prevents rust in outdoor and humid environments, and extends component service life.
Competitive Price Steel Embeded Plate for Facade Support System
Product Features
  • 10mm plate thickness with Q235B carbon steel base material provides sufficient thickness, excellent shear and bearing resistance, classified as medium to small-sized heavy-duty embedded plate
  • 10mm thick steel plate offers high stiffness and deformation resistance, suitable for pre-embedding in concrete or post-installation with chemical anchors
  • Corrosion resistance suitable for outdoor humid and rainy environments, ideal for curtain walls and outdoor projects, preventing bearing capacity reduction due to rust
Applications
  • Glass curtain walls and stone curtain walls
  • Aluminum veneer and ceramic panel curtain wall adapter bases
  • Pre-embedded fixed bases for railings, guardrails, and stair handrails
Technical Support & Services
Our comprehensive cladding support systems include expert technical support and services to ensure proper installation and long-term performance. Our specialized team provides assistance with design consultation, product selection, and installation details to meet all safety standards and code requirements.
Packaging & Shipping
Products are carefully packaged in custom-made, environmentally conscious materials designed to prevent damage during transit. We partner with reliable shipping companies and offer multiple transportation options including ground, air, and sea freight to accommodate your specific project timeline and requirements.
