Specifications
MOQ :
200 pcs
Delivery Time :
15 working days
Warranty :
10 years
Application :
Exterior wall Decoration
Packaging Details :
Cartons packaging
Model Number :
80*37*5mm
Payment Terms :
L/C, T/T
Surface :
Mill finish, Anodizing, Coating
Installation :
Easy
Price :
Negotiable
Size :
80*37*5mm
Supply Ability :
20000 per 15 working days
Material :
Aluminum 6063,6061.6005,Custimized
Certification :
ISO
Brand Name :
Jingliang
Place of Origin :
China
Description
Customized Anticorrosion Aluminum Bracket for Facade Support System

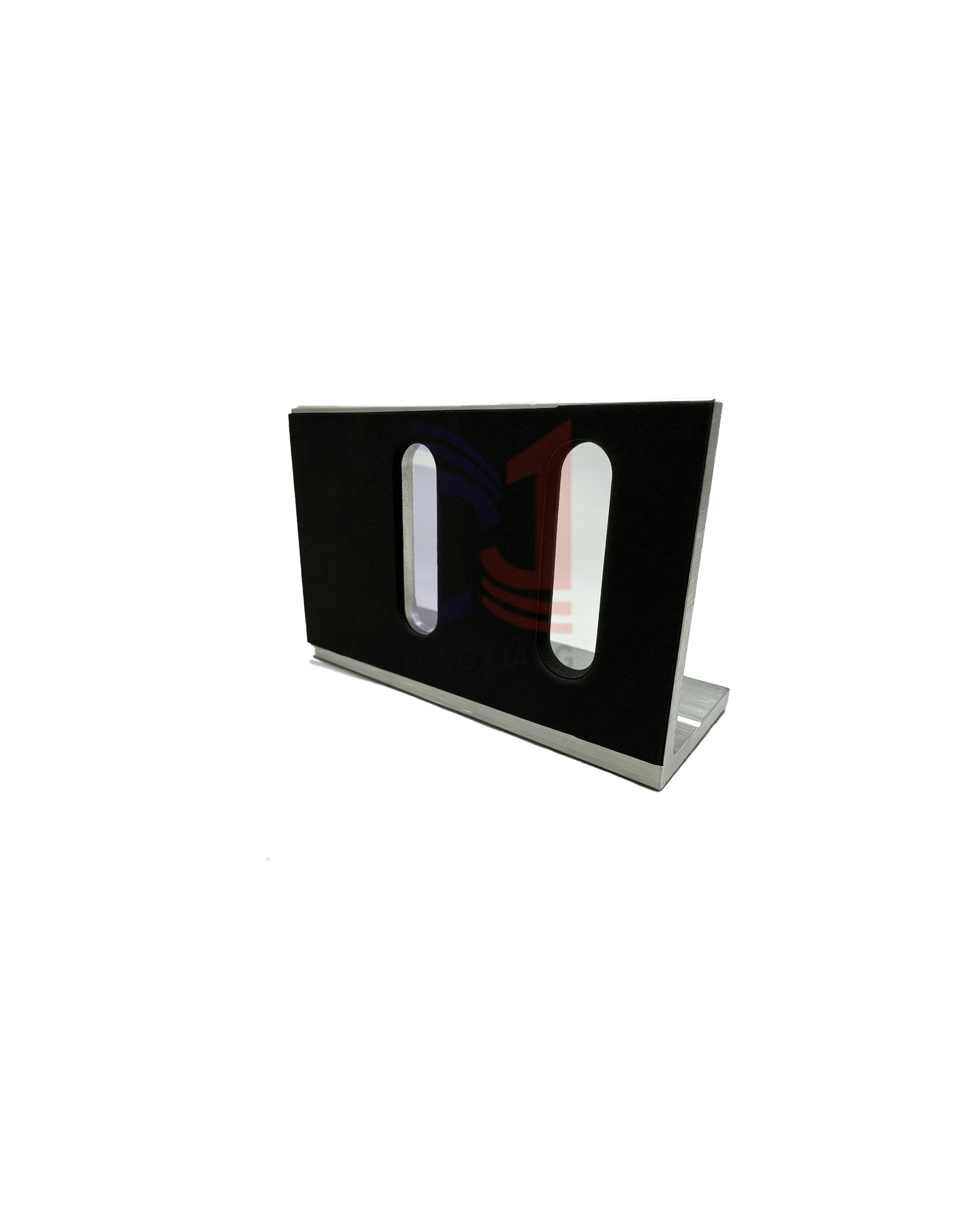

This L-shaped bracket is specifically designed for facade support systems. Extruded from 6063-T5 aluminum alloy, it offers excellent extrudability, fine surface finish, and high cost-effectiveness, making it the preferred choice for conventional curtain wall applications.
The surface can be anodized (providing high wear resistance and strong metallic texture as shown in the sample) or painted according to customer requirements.
Customized and Anticorrosion Aluminum Bracket for Facade Support System
Product Features

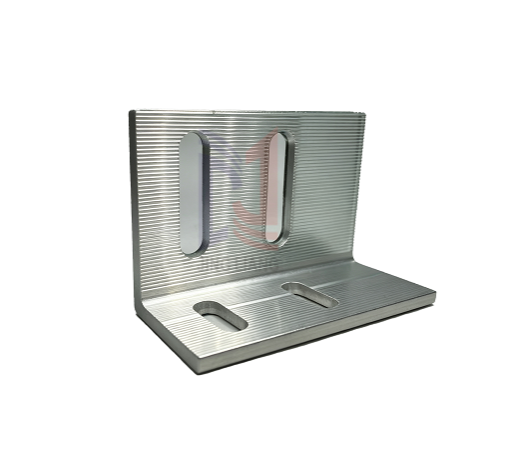

  • Structural Design: L-shaped right-angle profile with slotted adjustment holes on the plate, enabling horizontal and vertical fine-tuning during installation to compensate for fabrication and on-site tolerances. Notches are reserved at the ends to accommodate supporting thermal gaskets and limiting structures.
  • Anti-slip Design: Fine vertical knurling on the working surface increases friction with profiles and panels, preventing sliding and enhancing overall displacement resistance and seismic performance of the curtain wall system.
  • Performance Advantages: Lightweight and corrosion-resistant construction suitable for long-term outdoor service. Features stable strength and will not rust. Unlike galvanized steel brackets, eliminates risk of galvanic corrosion.
Applications
  • Transition fasteners between panels and rails for terracotta panel curtain walls, stone curtain walls, aluminum veneer curtain walls, and precast cladding panels
  • Corner connection and fixing of framed glass curtain walls and railing aluminum profiles
Technical Support and Services
Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.
Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
