Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Specifications
Installation :
Easy
MOQ :
200 pcs
Delivery Time :
15 working days
Packaging Details :
Cartons packaging
Surface :
Mill finish, Anodizing, Coating
Model Number :
JZ-S-1050
Warranty :
10 years
Price :
Negotiable
Supply Ability :
20000 per 15 working days
Payment Terms :
L/C, T/T
Model :
JZ-S-1050
Certification :
ISO
Material :
Aluminum 6063,6061.6005,Custimized
Brand Name :
Jingliang
Application :
Exterior wall Decoration
Place of Origin :
China
Description
Energy Efficient and Anti Corrosion Aluminum Clip for Facade Support System

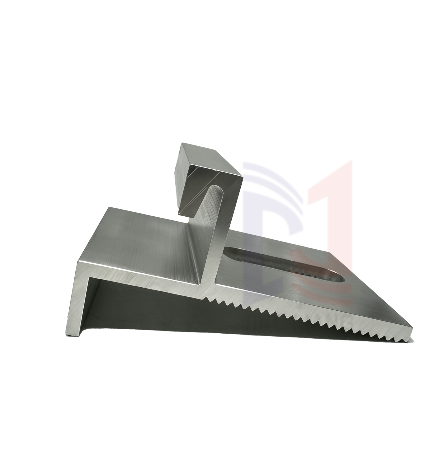

This JZ-S-1050 aluminum clip is specially engineered for stone facade applications. Manufactured from 6063-T5/6063-T6 extruded aluminum alloy, it features lightweight construction with anodized or fluorocarbon surface treatment for enhanced corrosion resistance in coastal high salt spray environments.
Energy Efficient and Anti Corrosion Aluminum Cllip for Facade Support System
Product Features
  • Lightweight Construction: Density approximately one-third of stainless steel, reducing overall curtain wall load and rail stress
  • Superior Weather Resistance: Anodized/fluorocarbon treatment prevents corrosion and eliminates rust stains on stone surfaces
  • Multidimensional Adjustment: Elongated holes enable three-dimensional positioning (up/down, left/right, in/out) to accommodate construction tolerances
  • Anti-Slip Tooth Structure: Serrated biting surface prevents panel slippage caused by wind pressure and thermal expansion
  • Independent Maintenance: Both SE split and back bolt systems allow individual stone replacement without disturbing adjacent panels
Applications
  • Large Public Buildings: High-speed railway stations, exhibition centers, museums, theaters, and large grid granite curtain walls
  • Commercial Structures: Office complexes, hotels, and commercial buildings requiring clean facades with maintenance accessibility
  • Interior Applications: Lobby background walls, exhibition hall walls, and large stone dry hanging installations
Technical Support and Services
Our cladding support systems include comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements.
Packaging and Shipping
Products are packaged using environmentally conscious, low-carbon materials in custom-made packaging designed to protect against transportation damage. We offer various shipping options including ground, air, and sea transportation, with our team working to determine the optimal solution for your specific needs.
