Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Specifications
Brand Name :
CJTOUCH
Model Number :
CCT101-CFK-M600SE
Certification :
CE FCC
Place of Origin :
Guangdong,China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
3000 pcs per week
Delivery Time :
5-8 working days
Packaging Details :
1 or 2 pcs aio touch in one carton
Product Name :
aio touch
Touch Type :
Capacitive touchscreen
Touch Points :
10 Touch Points
Aspect Ratio :
16:10
Resolution :
1280*800
CPU :
Android / I3 / I5 / I7
RAM :
2GB /4GB /8GB /16GB/ 32GB
Memory :
32GB /64GB/128GB /256GB/ 512GB
Interface :
USB / COM / H-DMI /VGA /RJ45, etc.
Custom Made :
aio touch with Camera/ 4G/ Printer, etc.
Description

AIO Touch PC ODM Aio Touch Waterproof And Vandal Proof Computer 10.1 Inch

10.1'' aio touch Features:

  • Aio touch size 10.1'' / 10.4'' / 12.1'' / 15'' / 15.6'' / 17'' / 18.5'' / 19'' / 21.5'' / 23.8'' / 27'' / 32'' / 43'' / 49'' / 55'' / 65''
  • High image clarity and fast respone
  • 3mm tempered vandal-proof touch screen glass
  • L G, Sam sung, AU O, BO E, ect LCD LED Panels
  • capacitive technology support 5 or 10 points multi-touch function
  • IP65 touch screen sur face waterproof sealled
  • It can be euipped with J1900/I3/I5/I7/A-ndroid diffferent CPU for high speed operation
  • 2/4/8/16/32 GB ect RAM Optional
  • 32/64/128/256/512 ect SSD Optional
  • Perfact solutions for use in public
  • VESA mounting and rear mounting
  • Factory competitive price and fast delivery
  • Our aio touch are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
  • Warranty: 1 year
  • 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ aio touch

10.1inch Aio Touch Specifications:

General Information
Model CCT101-CFK-M600SE
CPU Intel(R)Celeron(R)CPU J1900 - I3/I5/I7/ Android optional
RAM 2/4/8/16/32GB RAM
Memory 32/64/128/256/512 GB SSD
Interface H-DMI, VGA, USB, COM, RJ45
Power supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts 5A
Mount Interface

1)VESA 75mm and 100mm

2) Mount bracket, horizontal or vertical
OS Wins7/8/10 or Android
LCD Specification
Active area(mm) 220.8(H)×139.2(V) mm
Resolution 1280(RGB)×800, WXGA, 149PPI
Pixel Pitch(mm) 0.0565×0.1695
Nominal input voltage VDD 3.3v
Viewing angle(v/h) 80/80/80/80 (Typ.)(CR≥10)
Contrast 500:1 (Typ.) (TM)
Luminance (cd/m2) 400 cd/m² (Typ.)
Response time 30 (Typ.)(Tr+Td) ms
Support color 16.7M , 45% NTSC
Backlight MTBF(hr) 30000
Environment
Operating temp. 0~50°C
Storage temp. -20~60°C
Operating temp. 20%~80%
Stroage RH 10%~90%

Components Of AIO Touch:

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs

Package :

1 or 2 pcs aio touch in one carton, EPE package inside

Shipping :

For small order: By Fedex, TNT, UPS, DHL etc. door to door service

For big order: By air to airport or by sea to seaport

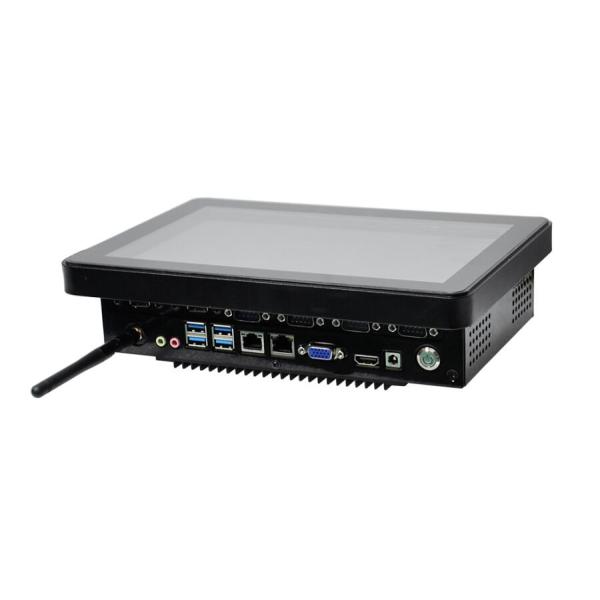

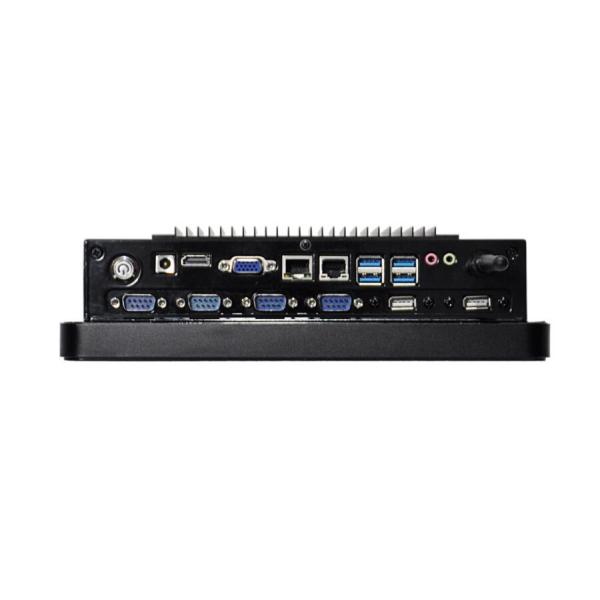

10.1'' AIO Touch Pictures:

Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch

Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch

Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch

Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch

10.1'' AIO Touch Drawing:

Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
