10 Point 15 PCT Capacitive PCAP Touch Screen With USB Interface
10 Point 15 PCT Capacitive PCAP Touch Screen With USB Interface
10 Point 15 PCT Capacitive PCAP Touch Screen With USB Interface
10 Point 15 PCT Capacitive PCAP Touch Screen With USB Interface
Specifications
Brand Name :
CJTOUCH
Model Number :
CPI150T00-3F-C00
Certification :
CE/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500pcs/week
Delivery Time :
2-5 working day
Packaging Details :
1pcs or 15 pcs in a carton
Touch Panel :
Projected Capacitive touch panel
Glass :
3mm toughened glass
Size :
15 inch
Screen :
Square Screen
characteristic :
Water Proof and Dust Proof
Touch Points :
10 Touch points
input voltage :
5V
Hardness :
≥6H
Description

USB interface PCAP touch screen 15" PCT Capacitive touchscreens for smart monitor

How PCAP Touch screen Work?

A Projected Capacitive Touch (PCT; also PCAP) technology consists of an insulator such as glass, which is coated with a transparent conductor, like ITO (indium tin oxide). The user’s finger conducts electricity, so touching the surface of the screen results in a distortion of the screen’s electrostatic field; that distortion is measurable as a change in capacitance.

In other words, a capacitance-based sensor is a circuit designed to sense touch by coupling with the electrical fields; touch causes the capacitance of the circuit to change.

Different technologies may be used to determine the location of the touch; the location is then sent to the controller for processing.

Limitations of capacitive touch screen technology:

  • Can not be used with a gloved hand
  • Can not be used with stylus
  • Requires periodic recalibration
  • Ofter retofitted to standrad non-touch LCD monitors which may not be as stable when touched
  • Not usually fitted to monitors when applications require dust , water , scratch or impact resistance

Capacitive touch screen technology is often recommended to customers who would like the confidence of a brand name LCD such as NEC, which the capacitive touch screen would then be retrofitted to.

Main Feature

  • High image clarity
  • Free of drift
  • Z-axis pressure recognition
  • Strong mechanical strength
  • Short response time
  • Compact size for easy integration
  • Customization available on glass sensorsize, driver, accessories

Specification of Product

Technical specification
Type Projected touch panel
Interface USB
Number of touch point 10
input voltage 5V ----
Pressure endurance value <10g
Input Hand writing or capacitive pen
Transmittance >90%
Surface Hardness ≥6H
Usage The specification is applied to transparent and handwriting input
capacitive touch panels
Application It's applied in ordinary electric equipments and automatic office facilities
Cover Lens Specification
Pressure Value 400 ~500 mPA above 6u
Ball Drop Test 130g±2g, 35cm, No damage after the impact at the central area for once.
Hardness ≥6H Pencil: 6H Pressure: 1N/45.
Environment
Working temperature and humidity -10~+60ºC, 20~85% RH
Storage temperature and humidity -10~+65ºC, 20~85% RH
Humidity resistance 85% RH, 120H
Heat resistance 65ºC, 120H
Cold resistance -10ºC, 120H
Thermal shock -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
Anti - glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Working Environment Directly Under sunlight ,indoor and outdoor
Software(Firmware)
Scanning Auto full screen scanning
Operate system Win 7,Win 8,Win10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website

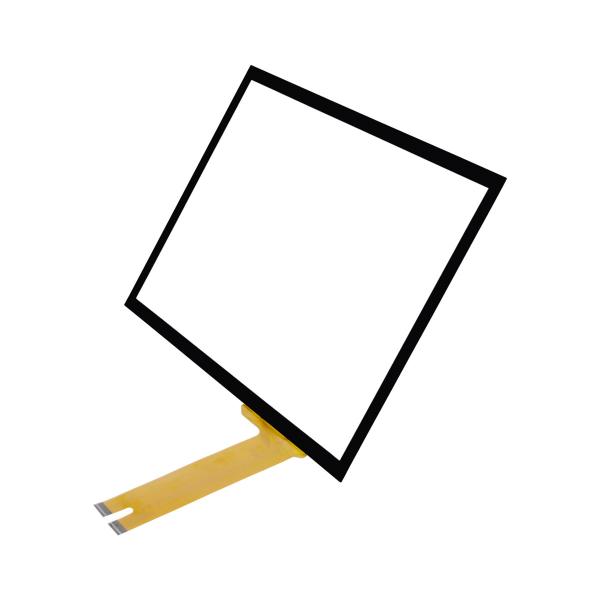

Picture of Product

10 Point 15

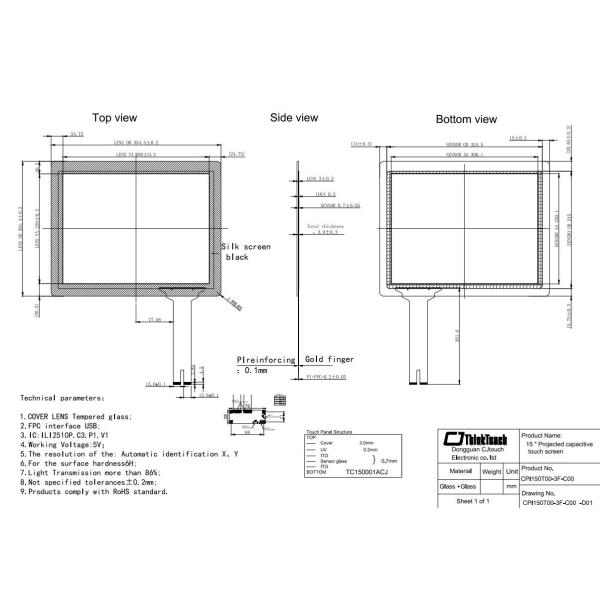

Technical Drawing

10 Point 15
