15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens
Specifications
Brand Name :
CJTOUCH
Model Number :
COT150-CFF03
Certification :
RoHS, CE, FCC
Place of Origin :
Guangdong, China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000PCS per quater
Delivery Time :
5-8 work days (>1pcs)
Packaging Details :
Carton package
Touch technology :
Capacitive Touch screen monitor
Size :
15 inch
Frame :
Metal Front Frame
Viewing angle (v/h) :
80°/80°
Resolution :
1024×768@60Hz
Contrast :
500:1
Touch points :
10 points touch
Luminance(cd/m2) :
250
Application :
Gaming, retail, kiosk, health care, education
Warranty(Year) :
1 year
Description

15 inch open frame flat screen Capacitive touchmonitor multi touch touch display

Unlike resistive touch screen, capacaitive touch screen does not rely on fingers to create and change voltage values to detect coordinates. Capacitive scrrens work through anything that holds and electric charge including human skin. CJTOUCH PCAP touch monitors are vandal-proof and waterproof. With the resistance to light interference, it is applicable to harsh environment.

15 inch Capacitive touch monitor features : ​

  • Simple desigh with good stability performance

  • Ture flat touchscreen desigh

  • Support 10 points multi touch

  • HDMI/VGA/DVI, USB interface. Easy to use

  • With 3mm tempered glass, waterproof/ vandalproof/ dustproof/ sunlight readable option

  • Operation system: Wins/ Linus/ Andriod

  • Customer customization can be accepted

  • Application: Self service kiosk. Advertising signage, Interactive whiteboard, Vending machine ect.

  • Warranty: 1 year

  • 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/PC

15 inch Capacitive touch monitor specification :

General
Model COT150-CFF03
Series Water-proof and Open frame
LCD Type 15” Active matrix TFT-LCD
Video Input VGA ,DVI and H-DMI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm) 304.128(H)×228.096(V)
Resolution 1024×768@60Hz
Dot Pitch(mm) 0.297×0.297
Nominal Input Voltage +3.3V(Typ)
Viewing angle (v/h) 80°/80°
Contrast 500:1
Luminance(cd/m2) 250
Response Time(Rising) 8ms/12ms
Support color 16.2M
Backlight MTBF(hr) 50000
Touchscreen Specification
Type Cjtouch Projected Capacitive touch screen
Multi touch 10points touch
Touch Life Cycle 10 millions
Touch Response time 8ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. 0～50°C
Storage Temp. -20～60°C
Operating RH: 20%～80%
Storage RH: 10%～90%

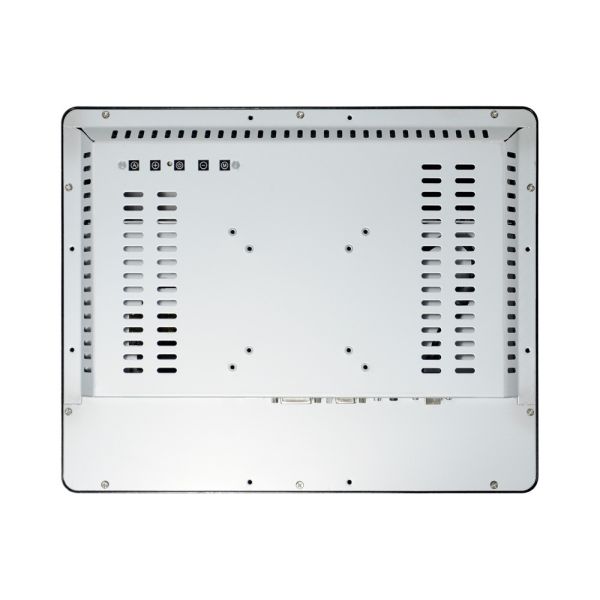

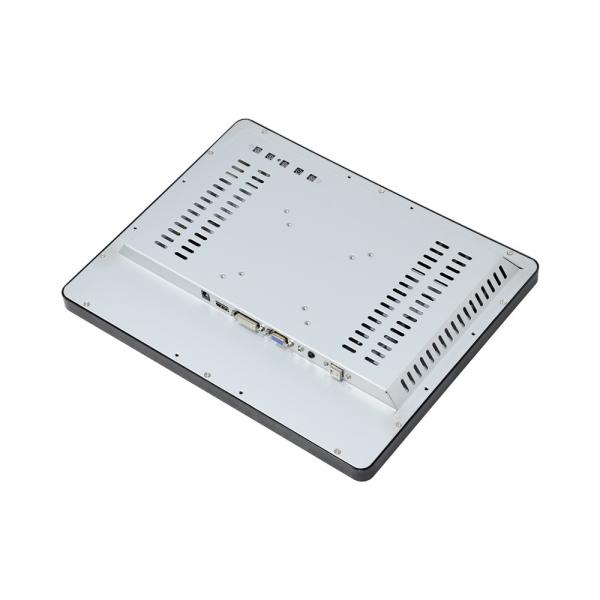

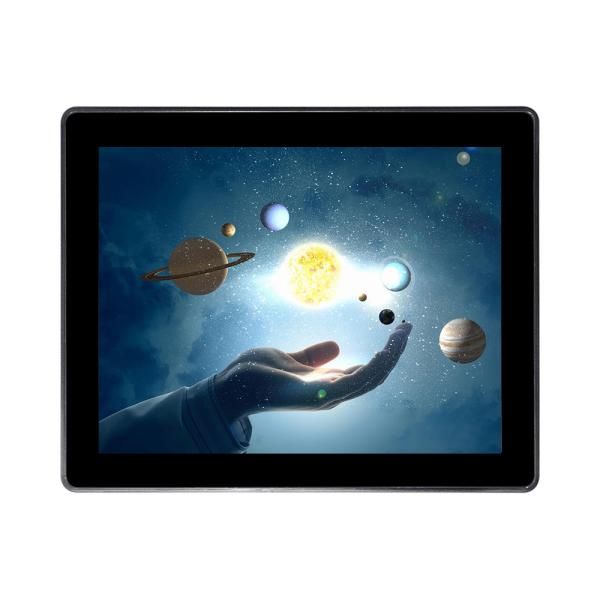

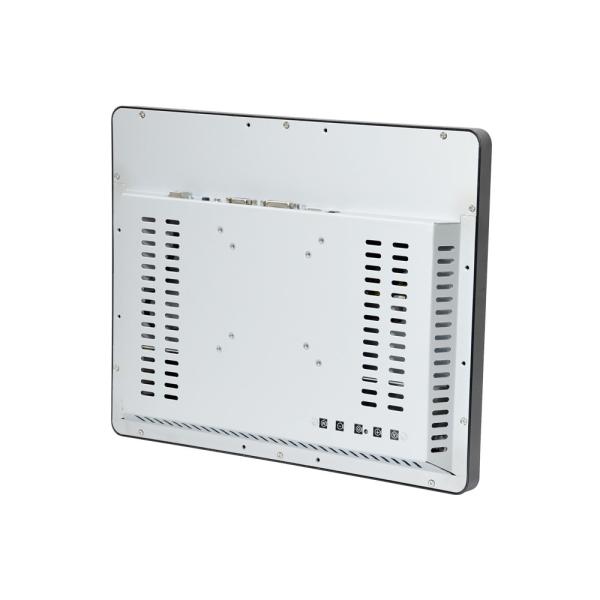

​15 inch Capacitive touch monitor pictures:

15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens

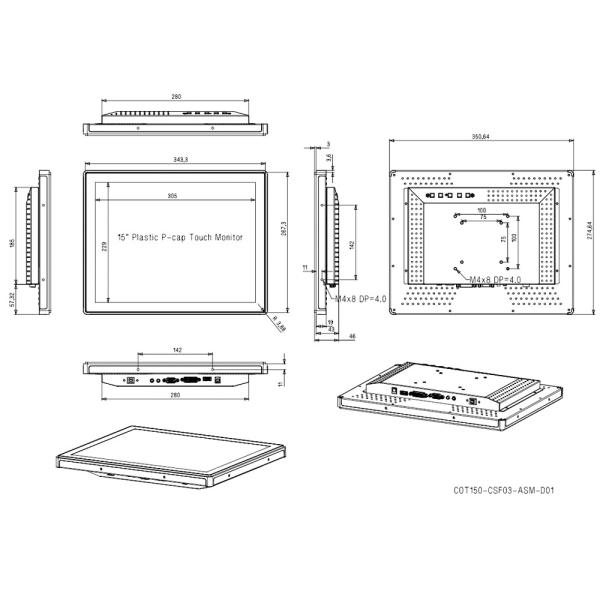

15 inch Capacitive touch monitor drawing:

15Inch 10 Point Touch Screen Monitor , High Sensitivity PCAP Touchscreens

Components:

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs
