High Sensitivity LCD PCAP Touch Screen Panel For AIO Touch PC 15.6 Inch
High Sensitivity LCD PCAP Touch Screen Panel For AIO Touch PC 15.6 Inch
High Sensitivity LCD PCAP Touch Screen Panel For AIO Touch PC 15.6 Inch
High Sensitivity LCD PCAP Touch Screen Panel For AIO Touch PC 15.6 Inch
Specifications
Brand Name :
CJTOUCH
Model Number :
CPI156T00-3K-C00
Certification :
CE/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500pcs/week
Delivery Time :
2-5 working day
Packaging Details :
1pcs or 15 pcs in a carton
Touch type :
capacitive touch panels
Application :
gaming machines
Technologies :
capacitive technology
Pressure Value :
400 ~500 mPA above 6u
Input :
Hand writing or capacitive pen
Interface :
1.3/1.8 m USB
Touch Points :
10 touch points
Description

15.6 Inch Projected Capaitive Touch Screen PCAP Touch Screen for All in one touch pc

Markets

  • ENTERTAINMENT
  • RETAIL
  • INDUSTRIAL
  • TRANSPORTATION

Typical Application

  • ATMS
  • MONITORS
  • ALL-IN-ONE PCS
  • CONTROL PANELS
  • INDUSTRIAL AUTOMATION
  • DIGITAL SIGNAGE
  • GAMING MACHINES
  • KIOSKS – INDOOR
  • INFORMATION KIOSKS

Which is better capacitive or resistive touch screen?

If you want increased screen contrast and clarity, capacitive touch screens are the preferred option over resistive screens, which have more reflections due to their number of layers. Capacitive screens are also far more sensitive and can work with multi-point inputs, known as 'multi-touch'.

Could you want to make a Smart Lockers ?

The Small size PCAP Touch Screen will help you make a Touch Monitor , reduce labor coats though automated pickup .

Projected Capacitive Touch Screens

PCAP touch screen software is typically used in smart phones and tablets, but can also be used for much larger screens. It works through the use of a conductive grid that recognizes changes in its electromagnetic field by the touch of your finger. Projected capacitive touch screen technology does not require a bezel. They detect only fingers or styluses. PCAP displays very accurate, and capable of up to 60 touch points.

Specification of Product

Technical specification
Type Projected touch panel
Interface USB
Number of touch point 10
input voltage 5V ----
Pressure endurance value <10g
Input Hand writing or capacitive pen
Transmittance >90%
Surface Hardness ≥6H
Usage The specification is applied to transparent and handwriting input
capacitive touch panels
Application It's applied in ordinary electric equipments and automatic office facilities
Cover Lens Specification
Pressure Value 400 ~500 mPA above 6u
Ball Drop Test 130g±2g, 35cm, No damage after the impact at the central area for once.
Hardness ≥6H Pencil: 6H Pressure: 1N/45.
Environment
Working temperature and humidity -10~+60ºC, 20~85% RH
Storage temperature and humidity -10~+65ºC, 20~85% RH
Humidity resistance 85% RH, 120H
Heat resistance 65ºC, 120H
Cold resistance -10ºC, 120H
Thermal shock -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
Anti - glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Working Environment Directly Under sunlight ,indoor and outdoor
Software(Firmware)
Scanning Auto full screen scanning
Operate system Win 7,Win 8,Win10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website

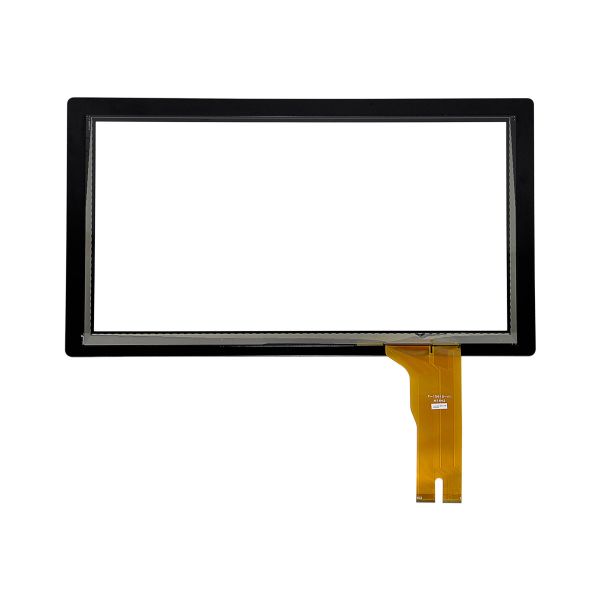

Picture of Product

High Sensitivity LCD PCAP Touch Screen Panel For AIO Touch PC 15.6 Inch

Technical Drawing

High Sensitivity LCD PCAP Touch Screen Panel For AIO Touch PC 15.6 Inch
