19 Inch Capacitive Touch Foil 10 Points Touch for Industrial / Business / Shopping Mall

What is Nano Touch foil?

Touch foil is a transparent IPCT film which can perceive human finger touch across substrate , glass or acrylic plate etc., realizing accurate location by electrostatic induction.
It is the core component of the touch screen and other precise positioning device. No driver required, support various operation system, plug and play, support 10 to 30 touch points, maximum thickness of glass 8mm, size including 22 to 86 inch, can do customized for other sizes

Advantages of our touch foil:

• Driver Free / Plug & Play
• Multi-touch 10 to 30 points
• No additional power is required, just connect to your PC's USB port.
• 22'' ~ 84" and other custom size available on request
• Support Operation System Xp/Win7/Win8/Win10/Linux/Android

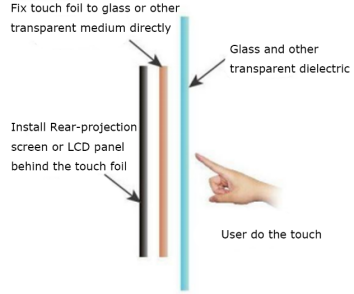

• Light weight film that makes simply apply to window, glass, acrylic and rear projection screens
• Can do Mirror Touch Screen

Specification

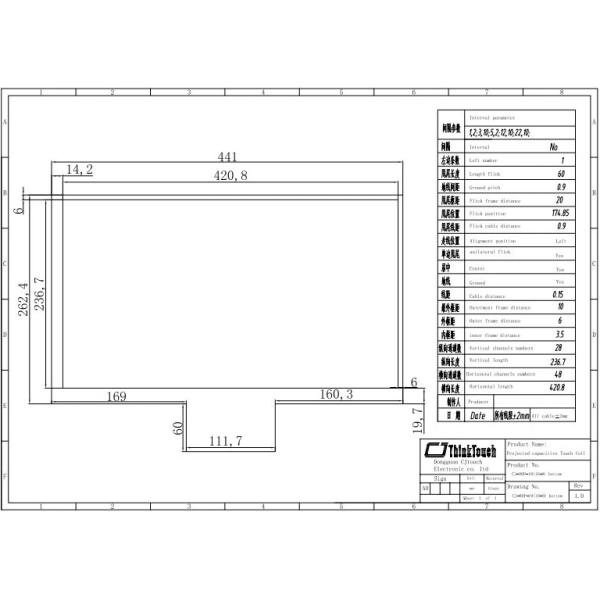

Techinical Drawings

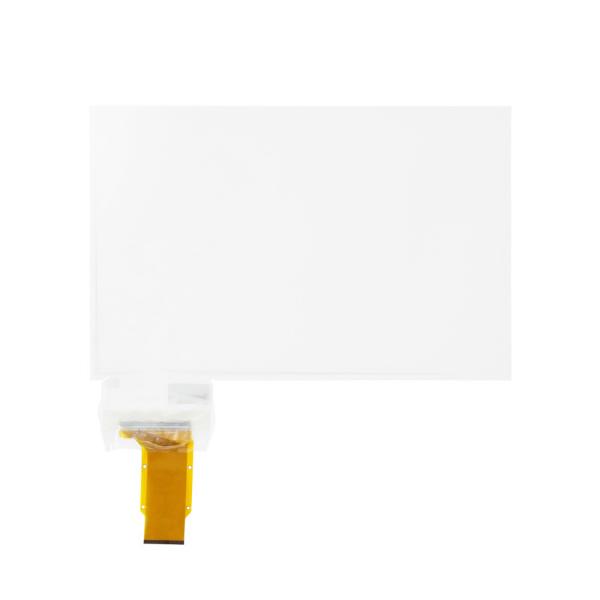

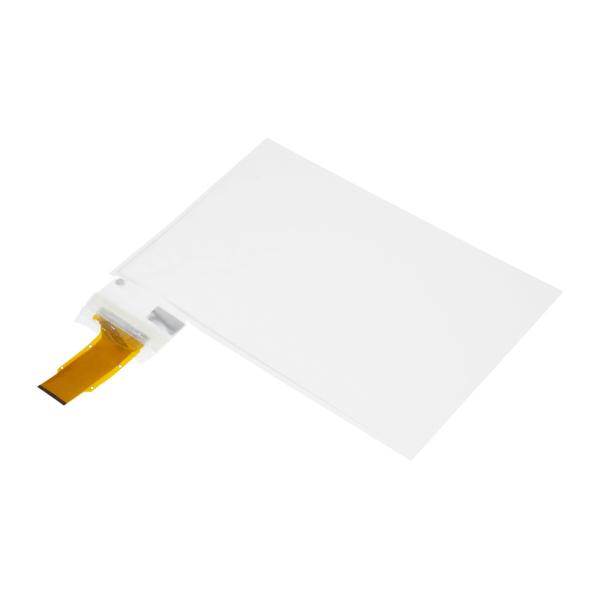

Detail images

Parameter comparison

By contrast we found that more than 30 inches touch market, the metal mesh film capacitors with all other similar products on the technical parameters of the method compared to no advantage.

Application

Instructions

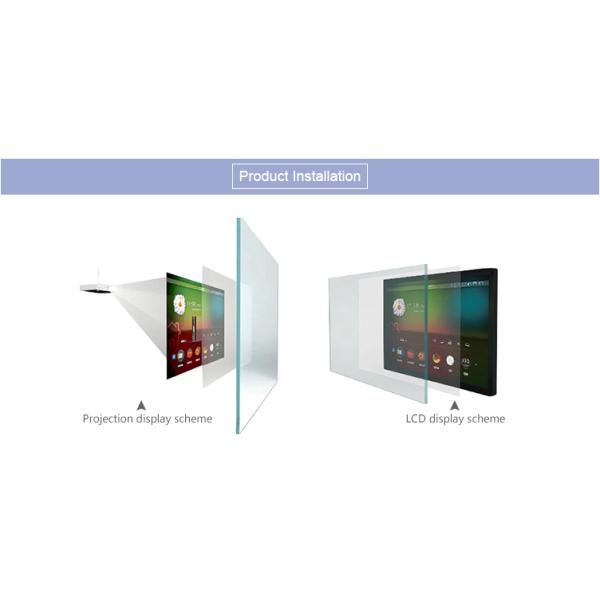

How to install touch foil for your L CD or projector to realize touch function?
Taking LCD screen as an example, the following materials need to be prepared first,
glass+touch film+l _CD screen+control host+casing+wire,
and then start installation: prepare a large glass, determine the projection position,
and stick the selected touch film between the glass and LCD screen;
Connect and fix the control board, and then connect the control board with the control host;Connect the USB cable to the metal backplane, install the driver, and use it after debugging

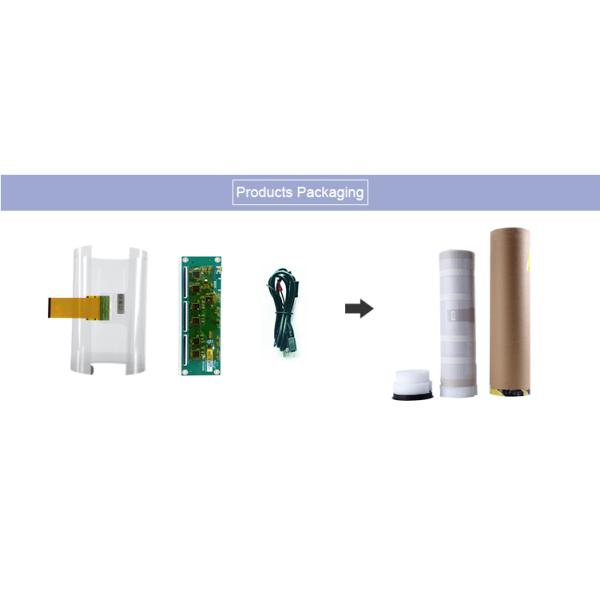

Packaging
