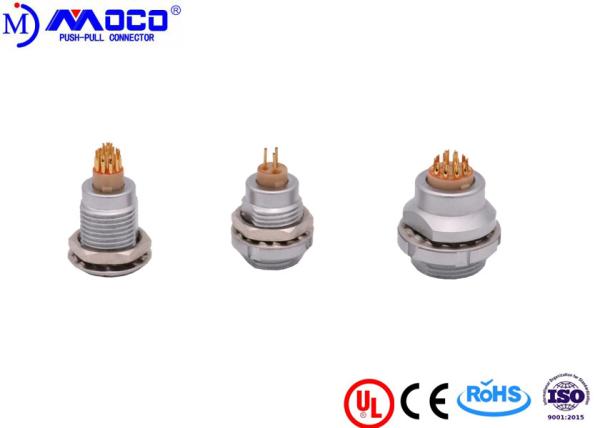

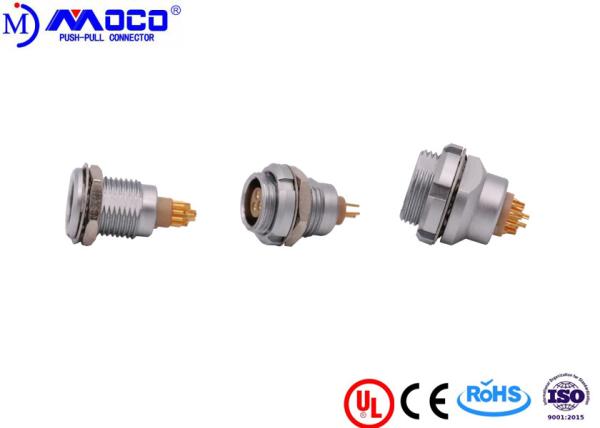

Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed
Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed
Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed
Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed
Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed
Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed
Specifications
Brand Name :
MOCO
Model Number :
EGG ECG EEG
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
T/T, Paypal, , Western Union
Supply Ability :
200000pcs/month
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Product name :
B series Z1 Z2 Z3 female circular push pull connectors with nut fixed
number of pin :
2- 26 pin
gender :
female
Vibration :
15 g [10 Hz - 2000 Hz]
Shock Resistance :
100 g [ 6 ms]
IP Rating :
50
Description

B series Z1 Z2 Z3 female circular push pull connectors with nut fixed

Description

Z1 is fixed socket, panel mount, nut fixing. Z2 is fixed socket with two nuts. Z3 is fixed socket, back panel mount,nut fixing.

Main features:

- Security of the push-pull self-latching system;

- Multipole types 2 to 30 contacts;
- Solder or print contacts(straight or elbow);

- High packing density for space saving;

- Multiple key options to avoid cross mating of similar connectors;
- Keying system for connector alignment;

- UL certificated

Dimensions and Parameters

Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed

Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed

Z1 Z2 Z3 Female Circular Push Pull Connectors With Nut Fixed

MOCO P / N Z1, Z2, Z3
Insert 2-26 low voltage
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
