Product Description:

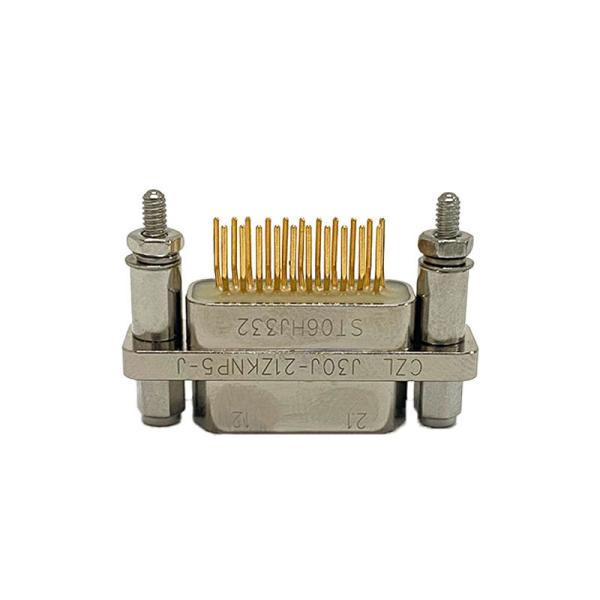

The J30J series connector is a reliable and high-quality Micro-D MIL-Spec Connector designed for use in electronic equipment applications. With a grid distance of 2.54*2.54, this connector offers precise and secure connectivity in various electronic devices.

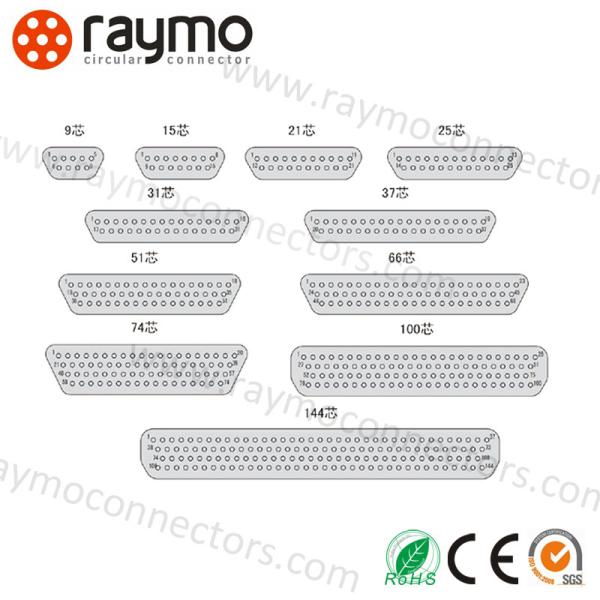

Available in a range of configurations, the J30J series connector comes with different pin options including 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins. This versatility allows for flexibility in design and compatibility with different electronic equipment requirements.

One of the key features of the J30J series connector is its wide temperature range capability. With an operating temperature range of -55～+125 ℃, this connector ensures reliable performance even in extreme temperature conditions. This makes it suitable for a variety of applications where temperature fluctuations are common.

Additionally, the J30J series connector comes with a standard wire length of 50cm or 500mm, providing ample length for easy installation and connection within electronic devices. The wire length options offer flexibility in routing and organizing cables, making it easier to integrate the connector into various electronic equipment designs.

Features:

• Product Name: J30J series connector
• Mating Cable: AFR-250, White Wire 0.1~0.15mm2
• Contact Pin: 9 Pins
• Leak Rate: ≤1.01X10^-3 Pa.cm^3/s
• Voltage Rating: 250V
• Application: Electronic Equipment

Technical Parameters:

Applications:

The Raymo RM-J30J series connector is a high-quality microminiature connector designed for various electronic equipment applications. With its certification of CE/RoHs/REACH/ISO9001:2015, this connector guarantees reliability and safety in use.

With a temperature range of -55～+125 ℃, the RM-J30J connector is suitable for a wide range of operating environments, making it ideal for both indoor and outdoor electronic applications. Its grid distance of 2.54*2.54 ensures compatibility with standard electronic components.

The RM-J30J series connector has a mating cycle of 500 times, ensuring durability and longevity in repeated connections. Additionally, with a leak rate of ≤1.01X10^-3 Pa.cm^3/s, this connector maintains a secure and stable connection for optimal performance.

Whether you are working on electronic prototypes or mass production, the RM-J30J connector offers a minimum order quantity of 1 piece, making it convenient for various project sizes. The price range of 5-15 USD per piece makes it a cost-effective solution for your connectivity needs.

With packaging details in CTN and a delivery time of 3-4 weeks, you can expect timely shipment of your RM-J30J connectors. Payment terms of T/T provide flexibility in completing your transactions.

Raymo's RM-J30J series connector, originating from China, has a supply ability of 5000PCS per month, ensuring that your supply chain remains consistent and reliable. Its application in electronic equipment scenarios makes it a versatile and essential component for your projects.

Support and Services:

The J30J series connector product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to assist with any technical queries, troubleshooting issues, and product recommendations. Additionally, we provide installation guidance, maintenance tips, and product documentation to support our customers throughout the product lifecycle.
