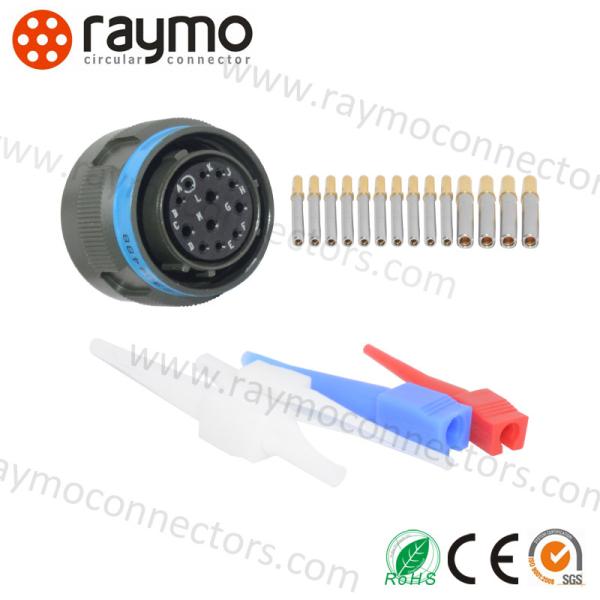

Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors
Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors
Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors
Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors
Specifications
Prct Name :
Military Circular Connectors
Housing size :
09
Housing plating :
electroless nickel plating
Contact size :
6-22D
Mounting Type :
cable mount
Termination Method :
Solder
Contact Gender :
male
IP Rating :
IP68
Brand Name :
RAYMO
Model Number :
JY27467T09F35PNH
Certification :
RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
500pcs/week
Delivery Time :
5-8 working days
Packaging Details :
50pc/CTN
Description

Description for Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

GJB599A series are made according to the same standard with D38999K series. The difference is that: the basic part number of GJB599A is JY, while D38999K is MS. GJB599A series is interchangeable with Industry Standard-DLT-38999K series..

[Part number example]

JY27467T25E35SN-H JY series plug, threaded shell end, can be mounted with accessory, 25# shell, stainless steel passive plating, 35# layout, filled with sockets, N polarization, soldering contacts.

Specification for Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

Prct attribute Attribute Value
Manufacturer RAYMO
Prct name Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors
Model JY27467T09F35PNH
Contact Gender pin(male)
Contacts 6-22D
Body size 09
Terminal Solder
Housing plating electroless nickel plating
IP Rating IP68
Application demanding systems such as aviation, aerospace, weapon, and other electronic equipment systems

Electrical data & Mechanical data for Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

Housing Aluminum alloy/stainless steel
Plating

B class: olive green cadmium plating

E class: stainless steel passive

F class: electroness nickel plating
Insulator Thermoset plastic
Grommet and seal Silicon rubber
Contact

Gold-plated copper alloy, crimping,

soldering, PCB
Endurance 500 cycles
Vibration

Sinusoid vibration: frequency 10-2000Hz,

acceleration: 294m/s2

Random vibration: frequency 100-1000Hz,

power spectral density: 1g2/Hz
Shock At 3 ms half sinusoid, peak value
Operating temperature

B class: -65℃～+175℃

E, F class: -65℃～+200℃
Salt spray

According to method 1001 GJB1217

B class 500h, E class 1000h

F class 48h
Relative humidity 98% at 40℃
Operating height ≤30480m

Features for Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

  • Comply with D38999 I series
  • Quick bayonet coupling, small size, light weight and high density
  • EMI/RFI shielding
  • Removable crimp contact with scoop-proof design

Application for Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

demanding systems such as

  • aviation,
  • aerospace,
  • weapon,
  • and other electronic equipment systems

Our advantage for Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

  • Original manufacturer
  • Excellent R&D team
  • 10+ years experience
  • OEM & ODM acceptable
  • 100% quality tested
  • 100% fast delivery
  • 100% after-sales service

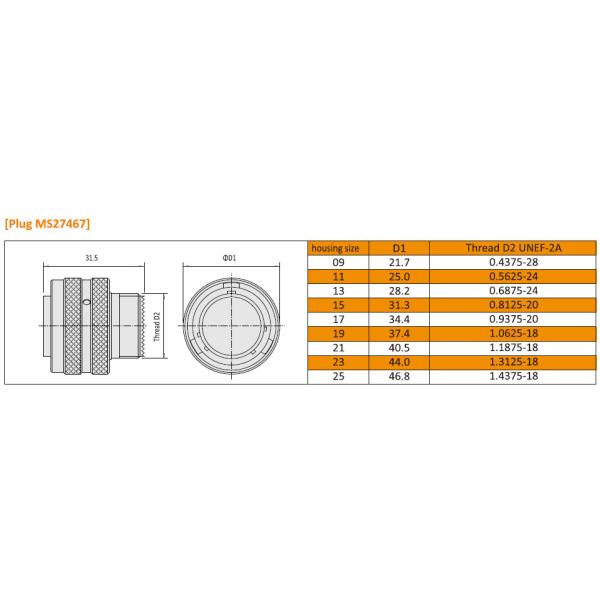

Dimention for Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

Amphenol D38999 I Series JY27467T09F35PNH Industrial Circular Connectors

Raymo also do:

  • D38999 I seires III series waterproof aviation circular connectors
  • Push pull connector LE MOS B series, waterproof K /W/T/half-moon S series, REDEL P series connectors
  • Fis chers core series 102 103 1031 104 connectors
  • Fis chers minimax series
  • Fis chers ultimate series
  • O D U_MINI SNAP Push-Pull Circular Connectors
  • O D U_AMC-advanced Industrial connector
  • O D U_AMC easy clean Connectors
  • Mini connector HIROSE connectors
  • Cable connector Binders M16 680 678 420 series connectors
  • Circular screw fixed M8 M12 connectors
  • CABLE ASSEMBLY can be designed according customer real needs.Accept OEM
