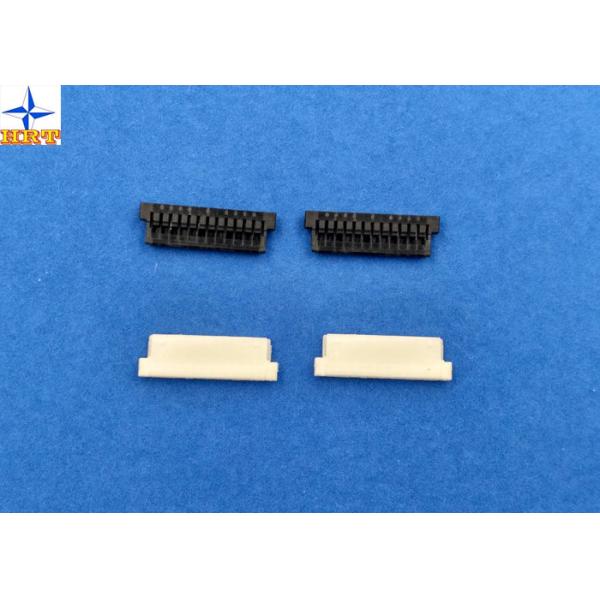

1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors
1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors
1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors
1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors
1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors
1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors
Specifications
Brand Name :
HRT
Model Number :
A1255H-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
500 K pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Mating lock :
Without
Connector orientation :
Straight
Suitable terminals :
A1255series
Wire range :
AWG28# to 32#
Flammability :
UL94V-0
Suitable wafer :
A1255 series
Description

1, The detailed specification of prodcut

Basic size information
Material PA66
Pitch 1.25mm
Row single
Color black or white
Circuits 2pins to 30pins
Wire Insulation Diameter 0.90mm Max.
Connector type socket
Terminals material phosphor bronze, tin-plated or gold-flash finish
Electrical properties
Current Rating 1A AC, DC
Voltage Rating 200V AC, DC
Contact Resistance 40mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute
Mechanical properties
Operating temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

The following pictures are good reference for you to know our product clearly, and through this, you can

get the whole data of this part's perfomance in testing condition.

1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors

1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors

Environmental Performance And Others

Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 80mΩ (Max.)
6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 80mΩ (Max.)

Insulation Resistance 10MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3
6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 80mΩ (Max.)
6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.
6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
6-9 Solderability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

 Solder Wetting 95% of immersed area must show no voids, pin holes
6-10 Resistance to Soldering Heat

When reflowing

Refer to paragraph 8

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

 Appearance No Damage.

Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial Circuits At Initial
Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
Single 0.20 0.04 10 2.00 0.40
02 0.40 0.08 11 2.20 0.44
03 0.60 0.12 12 2.40 0.48
04 0.80 0.16 13 2.60 0.52
05 1.00 0.20 14 2.80 0.56
06 1.20 0.24 15 3.00 0.60
07 1.40 0.28 20 4.00 0.80
08 1.60 0.32 25 5.00 1.00
09 1.80 0.36 30 6.00 1.20

3, Our service by picture showing

Cooperated well with world class delivery company, they can offer us good service and favorable price. It's sure that you can get your favorite componets and sample quickly.

1.25mm surface mounted 1A current wire to board connector for JAE FI-S housing crimp connectors
