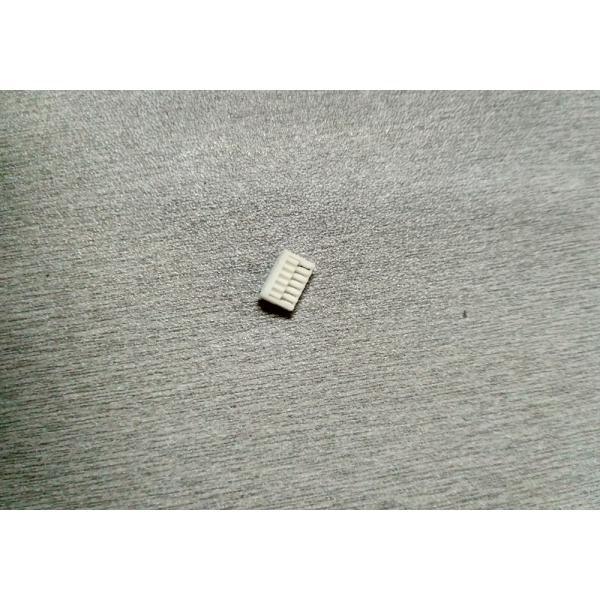

Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials
Specifications
Brand Name :
HRT
Model Number :
A1257HA-2xNP/HB-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.005 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Tube(pipe) with outside paper carton
Color :
White
Pitch :
1.25mm
Wafer materials :
PA66, UL94V-0
Wire range :
AWG32# to 28#
Packaging Type :
Bags
Suitable terminal :
A1002 series
Description

Single Row Pcb Wire To Board Connectors , White 1.25mm Pitch Connector PA66 Materials

1, Detailed specification of product:

1. Basic information:

  • Color: White
  • Pitch: 1.25mm
  • Circuits: 2 to 20positions
  • Insulation O.D.: 0.80mm
  • Matched wafer: A1257WRB
  • Mounting type: On board
  • Application: Signal, wire to board
  • Terminal materials: Phosphor bronze
  • Finish terminal: Tin-plated or gold-flash type
  • Terminal Package: 15K pcs/reel
  • Terminal processing method: E-stamping before tin-plated

2. Electrical characteristic:

  • Current Rating: 1A AC DC
  • Voltage Rating: 50V AC, DC
  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 100mΩ
  • Withstanding Voltage: 500V AC/minute

3. Mechanical characteristic:

  • ​​Temperature Range:-25°C ~+85°C
  • Terminal Insertion Force: 0.50kgf (Max.)
  • Terminal/Housing Retention Force: 0.50kgf (Min.)
  • Pin Retention Force: 0.50kgf (Min.)

Other detailed data please check the pictures as below.

2, Introduction for this series products

Please kindly notice these series product, you can buy it as a set, then we will offer you reasonable price.

A1257 series product
Terminal A1002-T
Housing Dual housing A1257HA-2XNP
Single housing A1257HB-NP
Wafer Single row type A1257WRB-S-NP
Dual rows type A1257WVA-SF-2XNP

Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials

Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials

Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials

Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials

Single Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 MaterialsSingle Row Circuit Board Connection, White PCB Wire Connector GH connector PA66 Materials

3, FAQ

Q1: Are you manufacturer or trading company?
A: We are a manufacturer with 12 years experience professional manufacturing company which specializes in producing, research and development, sales of variety of electronic connectors, terminals, wafer etc.

Q2: How to control the quality of your products?
A: Quality is life of our company. The QC staff control each procedure as per ISO9001 program. All part are100% tested before shipping.

Q3: How can I get the sample?
A: The sample is for free,but the transportation fee will be beared by customers.

Q4: What are your products applied to?
A: Our products are applied to automotive use, conmmunication equipment, industrial use, household appliance, electronics, etc.
