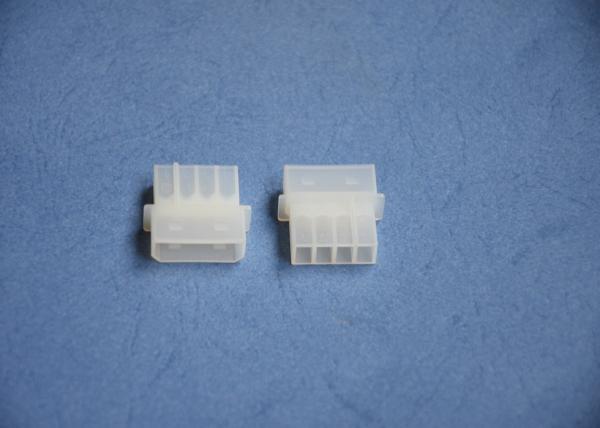

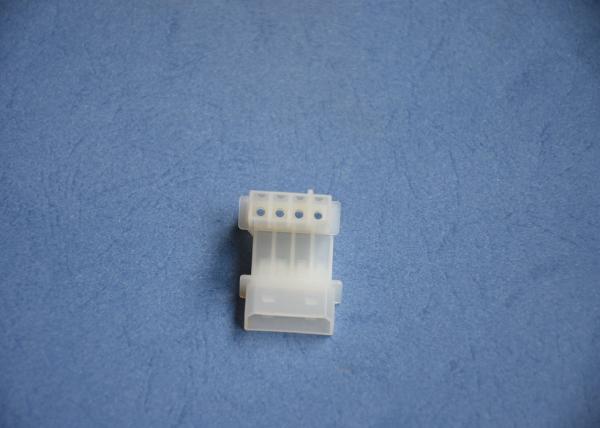

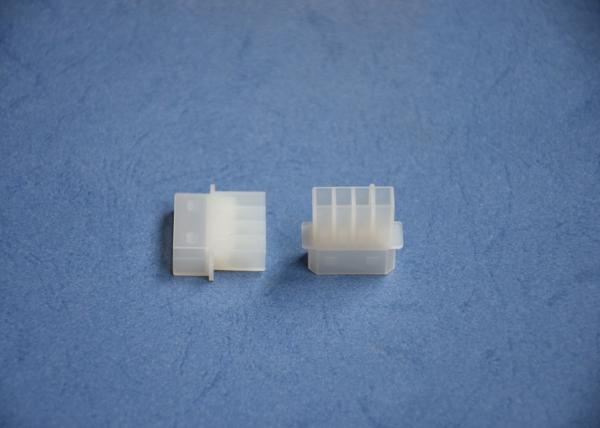

5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
Specifications
Brand Name :
HRT
Model Number :
C5080HM-04P
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.5 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Tube(pipe) with outside paper carton
Color :
White
Pitch :
5.08mm
Wafer materials :
PA66, UL94V-2
Wire range :
AWG24# to 18# or AWG24# to AWG14#
Packaging Type :
Bag
Terminal material :
Brass
Description

Female Brass 5.08mm pitch connector , Crimp Style Connector Single Row Housing

1, Detailed specification table of product

Detailed information

Basic information

 Type Housing
Gender Female
Circuits 4 positions
Insulation O.D. 3.10mm(max) or 2.5mm(max)
Mating lock Without
Finish terminal Tin-plated
Suitable terminal C5080T-M-A
Suitable housing C5080HF
Electrical properties Current Rating 10A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000MΩ Min
Withstanding Voltage 1500V AC/minute
Mechanical properties Temperature range -25℃ to 85 ℃
Terminal Insertion Force 2.0kgf (Max.)
Terminal/Housing Retention Force

3.00kgf (Min.)
Pin Retention Force 2.00kgf (Min.)
Other information please kindly check the following picture.

2, Introduction for this series products

Please kindly notice that the C5080 series product, you can buy it as a set, then we will offer you reasonable price.

C5080 series product
Terminal C5080F-T and C5080M-T-A

Connector

 Male housing C5080HF-04P
Female housing C5080HM-04P
Wafer Vertical mouting type C5080WV-04P

3, Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Dimension drawing

5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact

5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact

Environmental Performance And Others

Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)
6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Insulation Resistance 100MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3
6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)
6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.
6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.

4,FAQ

Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.

Q: Does your products print exactly the same as original?
A: Compatible products were known for its favourable prices and accurate size as originals.

Q: What is your MOQ for sample order?
A: All size sample orders are welcome.we do understand your idea to increase order gradually.

Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.
