Specifications
Brand Name :
Taconic
Model Number :
TLY-5
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
2.99USD/pcs
Payment Terms :
T/T, Paypal
Supply Ability :
50000pcs
Delivery Time :
2-10 working days
Packaging Details :
Packing
Final Foil External :
1 oz
Solder Mask Colour :
White
Board Type :
Double Sided PCB
Appearance :
Engraving and electro polishing
Mobile Responsiveness :
Yes
Fiducial Mark :
Through hole
Analytics :
Yes
Glass Epoxy :
Polyimide (PI) 25um
Multiple Authors :
Yes
Mobile Responsive :
Yes
Material :
RO4830
Coverlay Colour :
White, black, yellow, red etc
Number Of Layers :
1
Content Management System :
Yes
Description

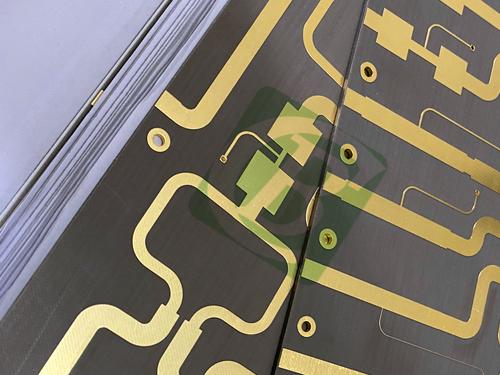

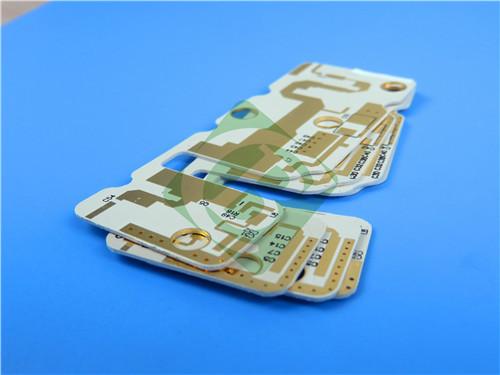

TLY-5-Based 2-Layer PCB: Built for High-Frequency Excellence

Looking for a PCB that delivers exceptional performance in high-frequency applications? Meet our 2-layer PCB with TLY-5 material—a perfect solution for demanding RF and microwave designs like automotive radar, satellite communications, and power amplifiers.

Why TLY-5?

  1. Dielectric Constant (Dk): 2.2 ± 0.02 at 10 GHz for stable signal propagation.
  2. Low Dissipation Factor (Df): 0.0009 at 10 GHz minimizes signal loss.
  3. Dimensional Stability: Woven fiberglass ensures reliability across all temperatures.
  4. Moisture Resistance: 0.02% absorption for consistent performance in humid environments.

Key PCB Specs

  • Layer Count: 2 layers
  • Thickness: 3.2mm
  • Copper Weight: 1oz (outer layers)
  • Surface Finish: Immersion Gold (ENIG)
  • Trace/Space: 7/7 mils

Applications

From 77 GHz automotive radar to Ka-band satellite systems, this PCB is perfect for low-loss performance, precision, and reliability.

Ready to build your next high-frequency design? Reach out to Sally at sales30@bichengpcb.com. Let’s make it happen!
