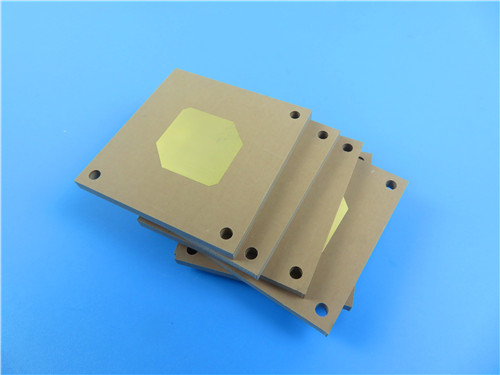

Rogers' TMM4 PCB: Reliable Performance for High-Frequency Designs

In the dynamic world of high-frequency electronics, design engineers are always on the lookout for reliable solutions that deliver consistent performance. Today, I'm excited to introduce you to the Rogers TMM4 PCB – a 2-layer offering that combines practical specifications with exceptional quality.

Solid Electrical Characteristics

At the core of this PCB is the Rogers TMM4 thermoset microwave material. With a dielectric constant (Dk) of 4.50 ± 0.045 and a dissipation factor of 0.0020 at 10GHz, this laminate provides stable electrical properties essential for RF and microwave applications.

Robust and Reliable Construction

Measuring 47mm x 118mm with a tight tolerance of ±0.15mm, this 2-layer PCB features a 1.6mm finished thickness and 1oz (1.4 mils) copper weight on the outer layers. The board's specifications include a minimum trace/space of 5/7 mils, minimum hole size of 0.35mm, and a Gold over Silver plating for reliable solderability.

Uncompromising Reliability

Engineered to the stringent IPC-Class-2 standard, the TMM4 PCB is designed to withstand the rigors of high-frequency applications. With a CTE matched to copper, this solution ensures dimensional stability and resistance to warpage, even in demanding environments. Additionally, 100% electrical testing is performed prior to shipment, guaranteeing defect-free boards.

Versatile Applications

Whether your focus is on RF and microwave circuitry, power amplifiers, filters, or other high-frequency electronics, the TMM4 PCB is a reliable choice. Its consistent electrical characteristics and robust construction make it suitable for a wide range of next-generation high-frequency designs.

Experience the dependable performance of Rogers' TMM4 PCB solution, available worldwide. Unlock the potential of your high-frequency designs with this practical and well-engineered offering.
