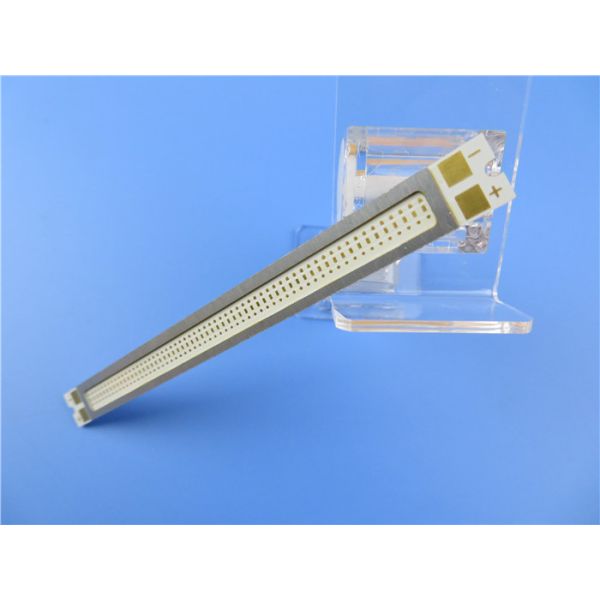

Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Bicheng PCB Built On Aluminium Based With 1W/MK Thermal Conductivity and immersion gold
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0469-V4.69
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD20~30
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
4-5 working days
Packaging Details :
Vacuum
Thermal conductivity :
1W/MK dielectric material, MCPCB
Final height of PCB :
1.6mm ±0.16
Final foil external :
1 oz
Surface finish :
Electroless nickel over immersion gold (ENIG) (1µ" over 100µ" nickel)
Solder mask color :
White, PSR400 WT02
Color of component legend :
Black
Test :
100% electrical test prior shipment
Description

General Profile

Based in China, BichengPCB adheres to the philosophy of helping small

and medium sized companies reduce their cost and time spent on PCB.

We provide a variety of PCB products to meet the demands.

Our Driving Circuit Boards Capabilities

Blind vias, Buried vias
Flex PCB
Heavy Copper Boards 12oz
High Tg, High CTI Material
Hybrid FR-4 and High Frequency Material
Impedance Controlled PCB
IPC Class 2, IPC Class 3
Lead Free PCB (RoHS Compliant)
Multilayer PCBs to 32+ copper layers boards
Metal Core PCB (MCPCB)
PCB Materials – FR-4, Polyimide, Rogers & More
RoHS Compliant PCB Manufacturer
Rigid Flex PCB
RF PCB / High Frequency PCB
Through-hole, BGA, Gold Finger, Edge dome
Via-in-pad, Filled vias
TS16949 (2009), ISO14001 (2004), ISO9001 (2008), UL certified

Our Services

Focus on Prototypes, Small Batches, Volume Production
Quick turn-around, double sided PCB 24 hours available.
Door to door shipment service

Our Clients are located worldwide.

Australia: Perth, Melbourne, New South Wales, South Australia,

West Australia
Austria: Breitenfurt bei Wien, Graz
Bangladesh: Purana Paltan
Belgium: Deinze, Hasselt
Bulgaria: Plovdiv
Brazil: Caxias do Sul
Canada: Quebec, Ontario, Vancouver
Czech: Pardubice, Horní Po?ernice
France: Villeneuve La Garenne Cedex, Montchenu
Germany: Stuttgart, Garbsen, Hamburg, Altenburg, Velbert Kleinmachnow,

Potsdam
Hungary: Budapest
India: Tamilnadu
Ireland: Cork
Israel: Nettanya City, Ben-Gurion Airport, Tel Aviv, Yahud, Acre,
Italy: Peschiera Borromeo, Verona, Mezzocorona, Pietrasanta Lucca,

Torino
Kuwait: Safat
Malta: Mosta
Malaysia: Selangor
Mexico: Leon Guanajuato
Portugal: Guimar?es
South Korea: Gyeonggi-DO
Serbia: Kragujevac
Sweden: G?teborg , Siljansn?s,
Thailand: Bangkok, Chonburi
Turkey: Ankara, Istanbul, Kocaeli
The Netherlands: Diemen
UK: Bristol, Surrey
Ukraine: Kiev
USA: Connecticut, Alaska, New York City, Miami,, New Jersey, Texas,

Colorado, Largo, California, Candler
Vietnam: HoChiMinh City
Zambia: Kitwe

Bicheng Flexible Printed Circuit Capability

No. Specifications Capabilities
1 Board Type Single layer, Doulbe layer, Multilayer, Rigid-Flex
2 Base Material PI, PET
3 Copper Weight 0.5oz, 1oz, 2oz
4 LED Maximum Size 250 x 5000mm
5 General Maximum Size 250 x 2000mm
6 Board Thickness 0.03mm-3.0mm
7 Thickness Tolerance ±0.03mm
8 Mininum Drill Hole 0.05mm
9 Maximum Drill Hole 6.5mm
10 Tolerance of Drill Hole ±0.025mm
11 Thickness of Hole Wall ≧ 8 um
12 Minimum Track/Gap of Single Layer Board 0.025/0.03mm
13 Minimum Track/Gap of Double Layer and Multilayer Board 0.03/0.040mm
14 Etching Tolerance ±0.02mm
15 Minimum Width of Silk Legend ≧ 0.125mm
16 Minimum Heigh of Silk Legend ≧0.75mm
17 Distance from Legend to Pad ≧0.15mm
18 Distance from Opening Solder Mask of Drill Coverlay to Track ≧0.03mm
19 Distance from Opening Solder Mask of Punching Coverlay to Track ≧0.03mm
20 Thickness of Immersion Nickel 100-300u"
21 Thickness of Immersion Gold 1-3u"
22 Thicnkess of Immersion Tin 150-400u"
23 Minimum Electrical Testing Pad 0.2mm
24 Minimum Tolerance of Outline(Normal Steel Mould Punch) ±0.1mm
25 Minimum Tolerance of Outline (Precision Steel Mould Punch) ±0.05mm
26 Mininum Radius of Bevel Angle (Outline) 0.2mm
27 Stiffner Material PI, FR-4, 3M Adhesive, PET, Steel Sheet
28 RoHs Yes
29 Solder Mask Colour Yellow, White, Black, Green
