Shengyi FR-4 S1000-2M Tg170°C + R-F777 Polyimide 4-layer rigid PCB
Shengyi FR-4 S1000-2M Tg170°C + R-F777 Polyimide 4-layer rigid PCB
Shengyi FR-4 S1000-2M Tg170°C + R-F777 Polyimide 4-layer rigid PCB
Shengyi FR-4 S1000-2M Tg170°C + R-F777 Polyimide 4-layer rigid PCB
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-340-V3.35
Certification :
UL
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
USD2 .99-9.99 per piece
Payment Terms :
T/T,Paypal
Supply Ability :
50000 PIECE PER MONTH
Delivery Time :
8-9 WORKING DAY
Packaging Details :
VACUUM
Board Material :
PI, PET
Board Thickness :
0.03mm-3.0mm
Surface/Inner layer Cu thickness :
0.5oz, 1oz, 2oz
Surface Finish :
Immersion Gold, Immersion Sliver, Immersion Tin
Coverlay Colour :
Yellow, White, Black, Green
Color of Silkscreen :
Yellow, White, Black, Green
Function :
100% Pass electrical test
Number of Layers :
Single layer, Doulbe layer, Multilayer, Rigid-Flex
Description

Flex Your Circuits with Our New Rigid-Flex Superhero PCB

Calling all flex circuit fanatics! Get ready to bend, twist, and create with our newest rigid-flex PCB that combines the power of FR-4 and the flexibility of polyimide. This board is ready to contort and adapt to your most complex designs!

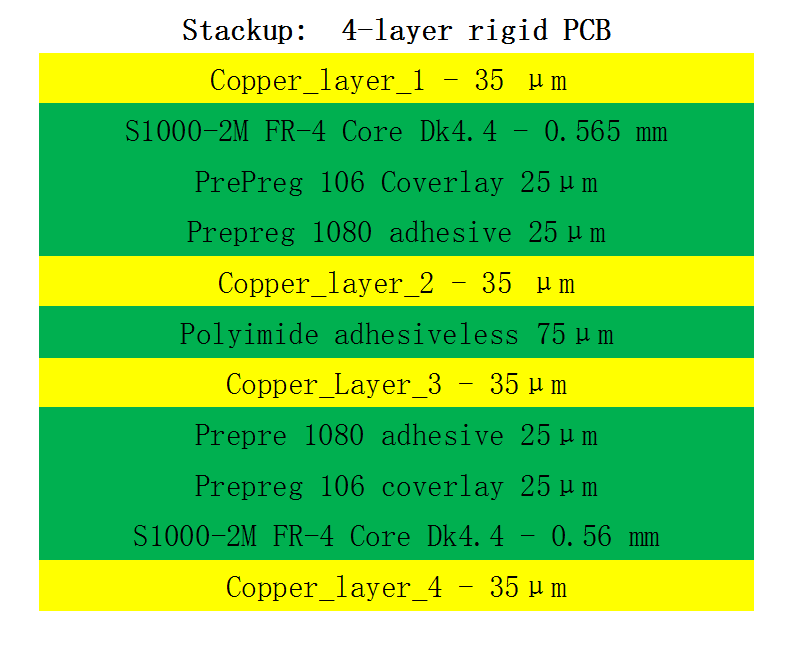

On the inside, we're packing robust 0.565mm FR-4 cores to add some muscle. But don't worry, we've got a soft side too with 0.075mm polyimide layers ready to flex and bend with your needs. At 1.6mm thick in the rigid zone and 0.243mm flexible, this board has got range.

With tight 4/5 mil traces and 0.35mm microvias, you've got the freedom to route and interconnect with precision. And our immersion gold finish means guaranteed reliability with every flex.

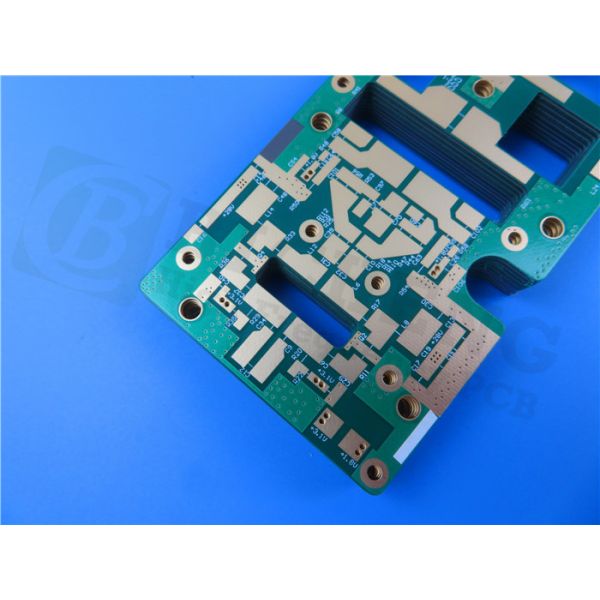

Our first panel measures 63.3mm x 72.92mm loaded with components and nets wired up for action. This board is suited up for your toughest missions!

Shengyi FR-4 S1000-2M Tg170°C + R-F777 Polyimide 4-layer rigid PCB

We adhere to IPC Class 2 standards so every bend and twist performs perfectly. Go beyond limits with this rigid-flex PCB built for versatility. Our engineering heroes can customize it for any application!

The design incorporates 54 components connected through 88 total pads comprising 70 through-hole and 18 SMT pads. Internal routing employed 68 vias across 12 nets meeting 50 ohm impedance requirements.

Gerber data conforming to IPC-2581 standards was received and production adhered to IPC Class 2 workmanship levels. Electrical testing procedures validated 100% functionality prior to shipment.

Any inquiries may be directed to Sally Mao at sales@bichengpcb.com. We are pleased to have enabled this multi-technology solution and remain open to future mixed-substrate projects.
