Specifications
Brand Name :
Bicheng Technologies Limited
Model Number :
BIC-174-V8.8
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD 9.99-99.99 Per Piece
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
7 working days
Packaging Details :
Vacuum
Glass Epoxy :
R-5775G
Final height of PCB :
0.8 mm ±0.1mm
Final foil external :
1.0oz
Surface Finish :
Immersion Gold
Solder Mask Color :
Black
Colour of Component Legend :
White
Number of Layers :
4
Test :
100% Electrical Test prior shipment
Description

M6 High Speed PCB R-5775 Low Loss Multilayer Circuit Board

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Brief Introduction

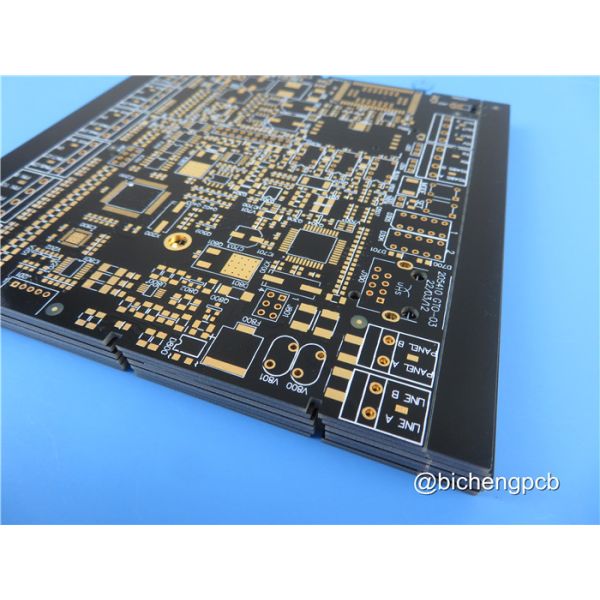

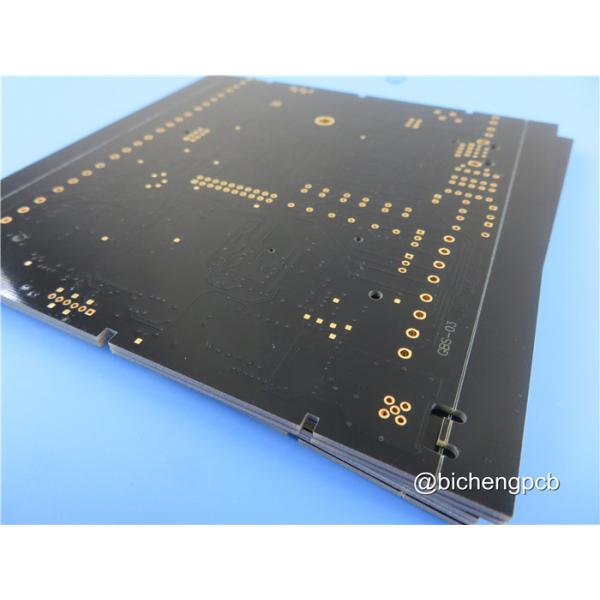

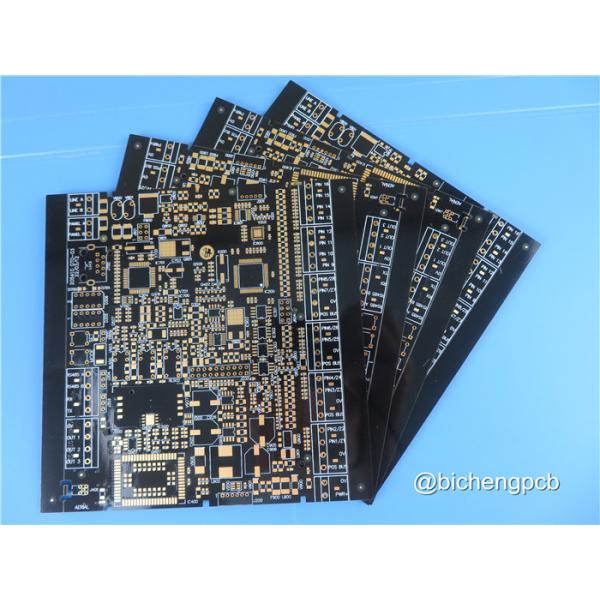

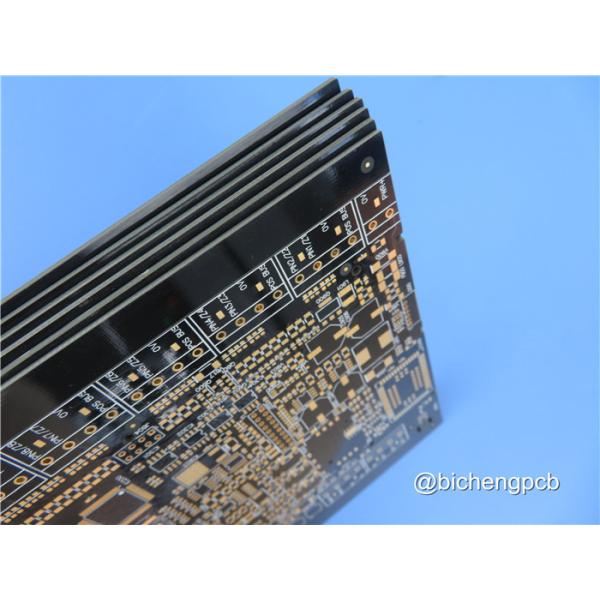

This type of 4-layer circuit board is built on Megtron6 (M6) R-5775G high speed low loss material. Outer layer with 1oz copper weight and black solder mask printed on both top and bottom side.Pads are plated with electroless nickel and immersion gold (ENIG). Every 50 boards are vaccum packed for shipment.

PCB Specifications

PCB SIZE 95 x 96mm=1up
BOARD TYPE Multilayer PCB
Number of Layers 4 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
Prepreg
copper ------- 18um(0.5 oz)
R-5775G 0.25mm
copper ------- 18um(0.5 oz)
Prepreg
copper ------- 17um(0.5 oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 4 mil
Minimum / Maximum Holes: 0.3 mm / 6.0 mm
Number of Different Holes: 2
Number of Drill Holes: 6
Number of Milled Slots: 1
Number of Internal Cutouts: no
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: R-5775G
Final foil external: 1.0 oz
Final foil internal: 0.5 oz
Final height of PCB: 0.8 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold, 22%
Solder Mask Apply To: Top Layer and Bottom layer
Solder Mask Color: Black
Solder Mask Type: Kuangshun
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Layer
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

M6 High Speed PCB R-5775 Low Loss Multilayer Circuit Board

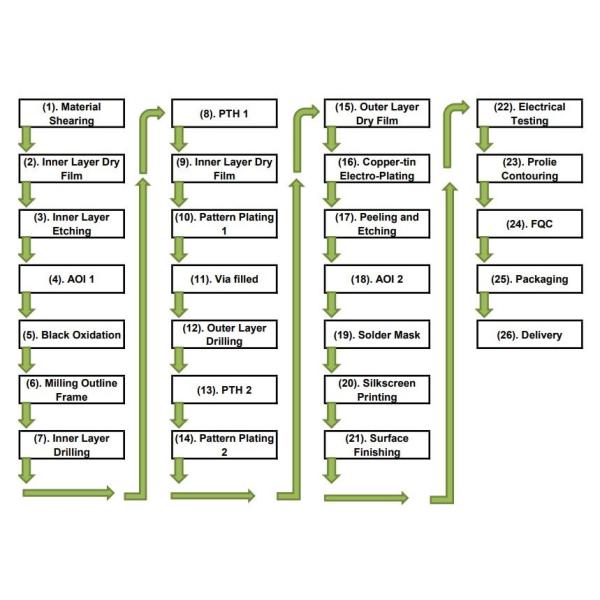

Manufacturing Process of Multi-layer PTH PCB (via filled)

(1). Material Shearing

(2). Inner Layer Dry Film

(3). Inner Layer Etching

(4). AOI 1

(5). Black Oxidation

(6). Milling Outline Frame

(7). Inner Layer Drilling

(8). PTH 1

(9). Inner Layer Dry Film

(10). Pattern Plating 1

(11). Via filled

(12). Outer Layer Drilling

(13). PTH 2

(14). Pattern Plating 2

(15). Outer Layer Dry Film

(16). Copper-tin Electro-Plating

(17). Peeling and Etching

(18). AOI 2

(19). Solder Mask

(20). Silkscreen Printing

(21). Surface Finishing

(22). Electrical Testing

(23). Prolie Contouring

(24). FQC

(25). Packaging

(26). Delivery

M6 High Speed PCB R-5775 Low Loss Multilayer Circuit Board

Main Applications:

Antenna (Automotive millimeter wave radar, Base station)

ICT infrastructure equipment

Measuring instrument

Super computer

M6 High Speed PCB R-5775 Low Loss Multilayer Circuit Board

CAPABILITY

2500-3000 types each month.

SERVICE AREA

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.
