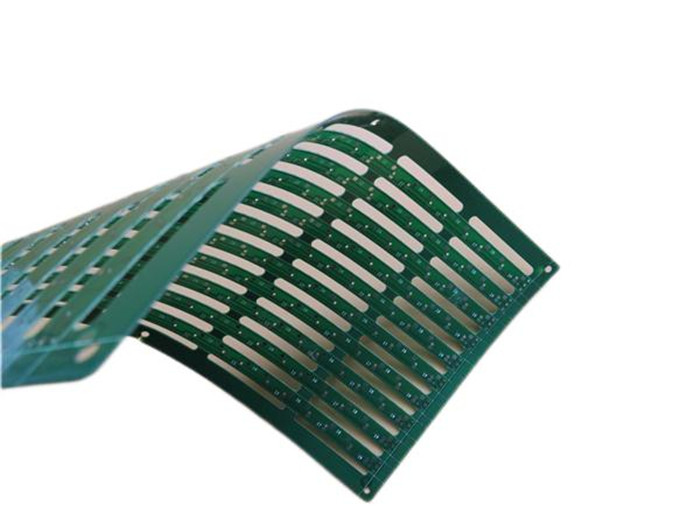

Thin Printed Circuit Board 0.6mm Double Sided PCB on FR-4 with HASL Lead Free

(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)

1.1 General description

This is a type of 2 layers printed circuit board built on FR-4 substrate with Tg 135°C for the application of switch sensor. It's only 0.6 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and HASL on pads. The base material is from ITEQ supplying 10 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benefits

1. FR-4 material is RoHS compliant and suitable for thermal reliability needs;

2. HASL shows excellent wetting during component soldering and it can avoid copper corrosion;

3. Meeting your PCB needs from prototype to mass production;

4. Delivery on time. Higher than 98% on-time-delivery rate.

5. No minimum order quantity. 1 piece is available.

6. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

7. 30000㎡ output capability per month and 8000 types of PCB's per month;

8. IPC Class 2 / IPC Class 3.

Thin Printed Circuit Board 0.6mm Double Sided PCB on FR-4 with HASL Lead Free

1.3 Applications

WiFi Repeater

USB Bluetooth

Video Surveillance System

Access Control Systems

Variable Speed Motor

5000 Watt Inverter

4G Modem Router

Motor Drives

High Frequency Amplifier

Telecommunications

1.4 PCB Parameter

PCB SIZE 350 x 150mm=10PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components no
LAYER STACKUP copper ------- 18um(0.5oz)+PLATE
FR-4 0.5mm
copper ------- 18um(0.5oz)+PLATE
TECHNOLOGY
Minimum Trace and Space: 7mil/7.6mil
Minimum / Maximum Holes: 0.5/1.0mm
Number of Different Holes: 5
Number of Drill Holes: 135
Number of Milled Slots: 11
Number of Internal Cutouts: 0
Impedance Control NO
BOARD MATERIAL
Glass Epoxy: FR-4, ITEQ IT-140, TG>135, er<5.4
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 0.6mm ±0.1
PLATING AND COATING
Surface Finish HASL ,Lead Free, Sn>=2.54µm
Solder Mask Apply To: Top and Bottom, 12micon Minimum.
Solder Mask Color: Green, PSR-2000GT600D, Taiyo supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated Through Hole(PTH), via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
