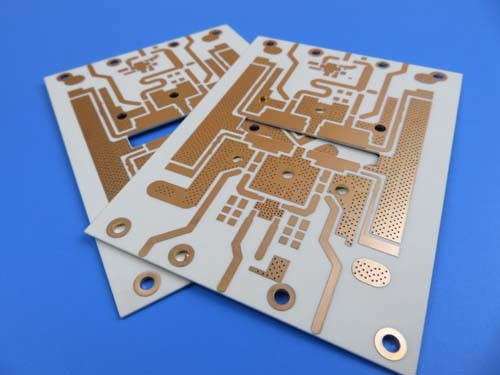

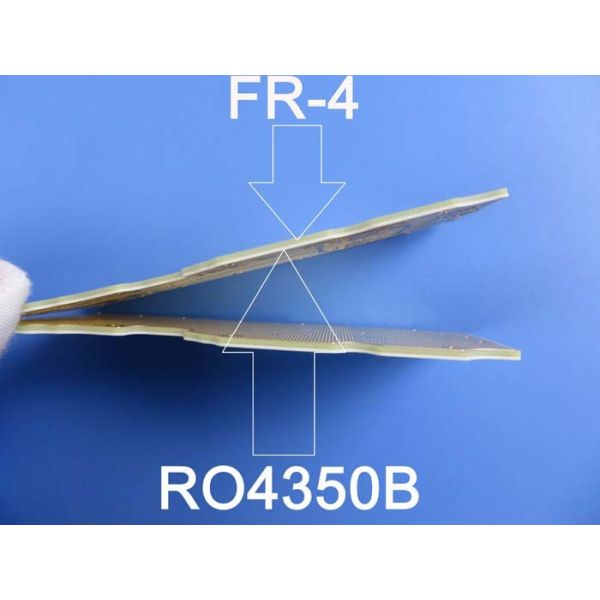

Rogers Double Sided HF PCB Built On 10mil (0.254mm) RO4350B With Immersion Gold
Rogers Double Sided HF PCB Built On 10mil (0.254mm) RO4350B With Immersion Gold
Rogers Double Sided HF PCB Built On 10mil (0.254mm) RO4350B With Immersion Gold
Rogers Double Sided HF PCB Built On 10mil (0.254mm) RO4350B With Immersion Gold
Rogers Double Sided HF PCB Built On 10mil (0.254mm) RO4350B With Immersion Gold
Rogers Double Sided HF PCB Built On 10mil (0.254mm) RO4350B With Immersion Gold
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0062-V6.2
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD2.99-7.99 Per Piece
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
5-6 working days
Packaging Details :
Vacuum
Glass Epoxy :
RO4350B Tg280℃, er<3.48, Rogers Corp.
Final height of PCB :
0.3 mm ±0.1mm
Final foil external: :
1.5 oz
Surface Finish :
Immersion gold
Solder Mask Color: :
Green
Colour of Component Legend :
White
TEST :
100% Electrical Test prior shipment
Description
Double Sided High Frequency PCB Built On 10mil (0.254mm) RO4350B With Immersion Gold
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of 2 Layer RF PCB built on 0.254mm (10 mil) RO4350B substrate for the application of RA power detector.
Basic specifications
Base material: RO4350B 10mil (0.254mm)
Layer count: 2 layers
Type: Single PCB
Format: 35 X 25mm = 1 type = 1 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm/ Inner layer 0 μm
Solder mask / Legend: green / white
Final PCB height: 0.3 mm
Standard: IPC 6012 Class 2
Packing: 50 pieces are packed for shipment.
Lead time: 7 working days
Shelf life: 6 months
Features and benefits
Excellent high frequency performance due to low dielectric tolerance and loss;
Stable electrical coefficient of dielectric constant;
Engineering design prevents problems from occurring in pre-production;
30000 square meter month capability;
8000 types of PCB's per month;
No MOQ, low cost for prototypes and small runs quantity;
UL, ISO14001, TS16949 certified;
Application
RF module, Transmitter combiner, Power amplifier, Base station antenna
Parameter and data sheet
PCB SIZE 35 x 25mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35µm(1 oz)+plate TOP layer
RO4350B 0.254mm
copper ------- 35µm(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 8 mil / 7 mil
Minimum / Maximum Holes: 0.4 mm / 4.5 mm
Number of Different Holes: 4
Number of Drill Holes: 87
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1.5 oz
Final foil internal: N/A
Final height of PCB: 0.3 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
