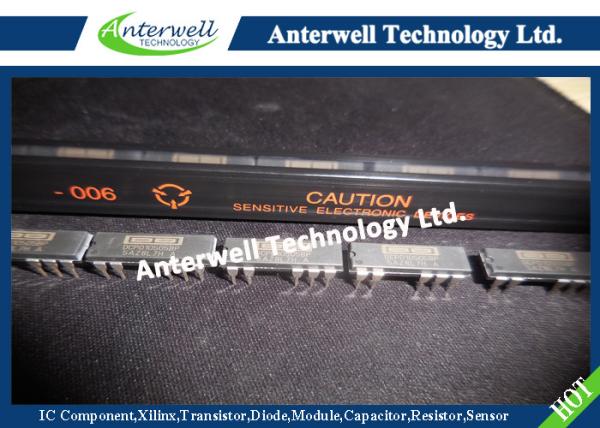

Miniature 1W Isolated UNREGULATED DC/DC CONVERTERS DCP010505BP
Miniature 1W Isolated UNREGULATED DC/DC CONVERTERS DCP010505BP
Specifications
Brand Name :
BB
Model Number :
DCP010505BP
Certification :
Original Factory Pack
Place of Origin :
Japan
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Shipment: :
DHL, Fedex, TNT, EMS etc
Main Line: :
Ic,module,transistor,diodes,capacitor,resistor etc
Lot no. :
DCP010505BP
Voltage Range :
Wide supply voltage range 2 V to 32 V (Single) ±1 V to ±16 V (Split)
Temperature :
–55 to + 125 °C
Package :
DIP-14
Description

Miniature, 1W Isolated

UNREGULATED DC/DC CONVERTERS

Miniature 1W Isolated UNREGULATED DC/DC CONVERTERS DCP010505BP

FEATURES

*Up To 85% Efficiency

*Thermal Protection

*Device-to-Device Synchronization

*Short-Circuit Protection

*EN55022 Class B EMC Performance

*UL1950 Recognized Component

*JEDEC DIP-14 and SOP-14 Packages

APPLICATIONS

*Point-of-Use Power Conversion

*Ground Loop Elimination

*Data Acquisition

*Industrial Control and Instrumentation

*Test Equipment

DESCRIPTION

The DCP01B series is a family of 1W, unregulated, isolated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP01B series provides extra features such as output disable and synchronization of switching frequencies. The use of a highly-integrated package design results in highly reliable products with a power density of 40W/in3 (2.4W/cm3). This combination of features and small sizes makes the DCP01B suitable for a wide range of applications.

DCP01B SERIES UNIT
Input voltage 5V models 7 V
15V models 18 V
24V models 29 V
Storage temperature −40 to +125 °C
Lead temperature (soldering, 10s) +270 °C

Notice:

Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.

Miniature 1W Isolated UNREGULATED DC/DC CONVERTERS DCP010505BP
