Led Diode ZA Tablice
Led Diode ZA Tablice
Led Diode ZA Tablice
Led Diode ZA Tablice
Specifications
Brand Name :
V ISHAY
Model Number :

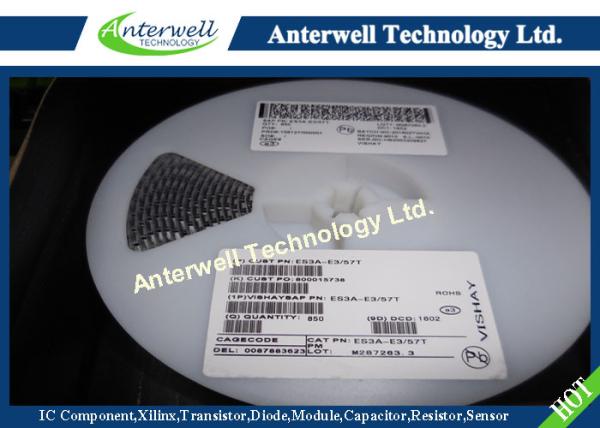

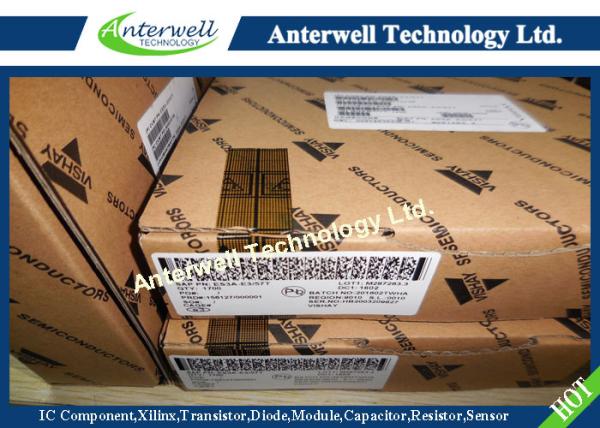

ES3A-E3/57T
Certification :
Original Factory Pack
Place of Origin :
Malaysia
MOQ :
850
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
8500
Delivery Time :
1
Packaging Details :
please contact me for details
Shipment :
DHL, FedeX, UPS, EMS etc
Main Line :
IC components, Transistor, Diode, Module,Capacitor etc
Temperature :
-50 to +150 °C
Factory Pack :
850pcs/Reel
Voltage :
50V-200V
Package :
SMC
Description

ES3A-E3/57T SURFACE MOUNT ULTRAFAST EFFICIENT PLASTIC RECTIFIER

FEATURES

♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0

♦ For surface mount applications

♦ Low profile package

♦ Built-in strain relief

♦ Ideal for automated placement

♦ Easy pick and place

♦ Superfast recovery time for high efficiency

♦ Glass passivated chip junction

♦ High temperature soldering: 250°C/10 seconds at terminals

MECHANICAL DATA

Case: JEDEC DO-214AB molded plastic body over passivated chip

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end Weight: 0.007 ounces, 0.21 gram

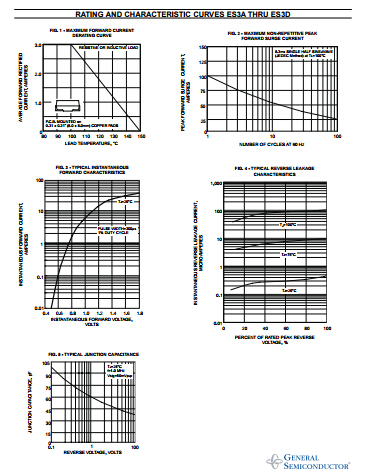

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

SYMBOLS ES3A ES3B ES3C ES3D UNIT
Device marking code EA EB EC ED
Maximum repetitive peak reverse voltage VRRM 50 100 150 200 Volts
Maximum RMS voltage VRMS 35 70 105 140 Volts
Maximum DC blocking voltage VDC 50 100 150 200 Volts
Maximum average forward rectified current at TL=100°C I(AV) 3.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on IFSM 100.0 Amps rated load (JEDEC Method) at TL=100°C IFSM 100.0 Amps
Maximum instantaneous forward voltage at 3.0A VF 0.90 Volts

Maximum DC reverse current TA=25°C

10.0 at rated DC blocking voltage TA=100°C

 IR

10.0

500.0

 µA
Maximum reverse recovery time (NOTE 1) Trr 20.0 Amps

Maximum reverse recovery time TJ=25°C 30.0

(NOTE 2) TJ=100°C

 Trr

30.0

50.0

 Amps

Maximum stored charge TJ=25°C 15.0

(NOTE 2) TJ=100°C

 Qrr

15.0

35.0

 Amps
Typical junction capacitance (NOTE 3) CJ 45.0 pF
Typical thermal resistance (NOTE 4) RΘJA RΘJL

47.0

12.0

 °C/w
Operating junction and storage temperature range TJ, TSTG -50 to +150 °C

NOTES:

(1) Reverse recovery test conditions: IF=0.5A, IR=1.0A, Irr=0.25A

(2) trr and Qrr measured at: VR=30V, di/dt=50A/µs, IF=3.0A, and Irr=10% IR

(3) Measured at 1.0 MHZ and applied reverse voltage of 4.0 Volts

(4) Units mounted on P.C.B. with 0.31 x 0.31” (8.0 x 8.0mm) copper pad areas
