Digital Integrated Circuit Chip
Digital Integrated Circuit Chip
Specifications
Brand Name :
FSC
Model Number :
74LCX244WMX
Certification :
Original Factory Pack
Place of Origin :
Malaysia
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
5000PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Package :
SOP-20
Main Line: :
Ic,module,transistor,diodes,capacitor,resistor etc
Shipment :
DHL, FEDEX,UPS,TNT,EMS
Voltage :
0.5--7V
Storage Temperaturey :
-65 to +150 ℃
D/C :
P06AK
Description

74LCX244

Low Voltage Buffer/Line Driver with 5V Tolerant Inputs and Outputs

General Description

The LCX244 contains eight non-inverting buffers with 3-STATE outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The LCX244 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The LCX244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Features

■ 5V tolerant inputs and outputs

■ 2.3V to 3.6V VCC specifications provided

■ 6.5 ns tPD max (VCC 3.3V), 10 PA ICC max

■ Power down high impedance inputs and outputs

■ Supports live insertion/withdrawal (Note 1)

■ r24 mA output drive (VCC 3.0V)

■ Implements patented noise/EMI reduction circuitry

■ Latch-up performance exceeds 500 mA

■ ESD performance: Human body model ! 2000V Machine model ! 200V

■ Leadless DQFN Pb-Free package

Note 1: To ensure the high-impedance state during power up or down, OE should be tied to VCC through a pull-up resistor: the minimum value or the resistor is determined by the current-sourcing capability of the driver.

Absolute Maximum Ratings(Note 5)

Symbol Parameter Value Conditions Unit
VCC Supply Voltage 0.5 to 7.0 V
VI DC Input Voltage 0.5 to 7.0 V
V0 DC Output Voltage

0.5 to 7.0

0.5 to VCC  0.5

Output in 3-STATE

Output in HIGH or LOW State (Note 6)

 V
IIK DC Input Diode Current

-50

 VI>GND mA
IOK DC Output Diode Current

-50

+50

VO > GND

VO >VCC

 mA
IO DC Output Source/Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature -65 to +150 ℃

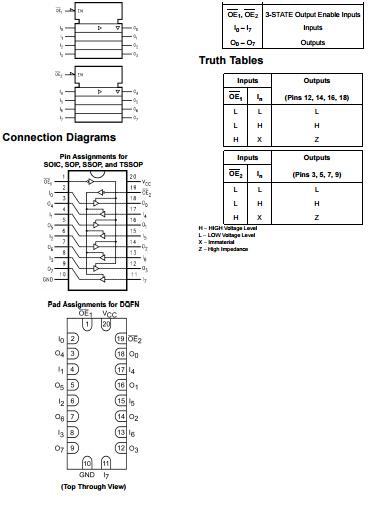

Digital Integrated Circuit Chip

Digital Integrated Circuit Chip
