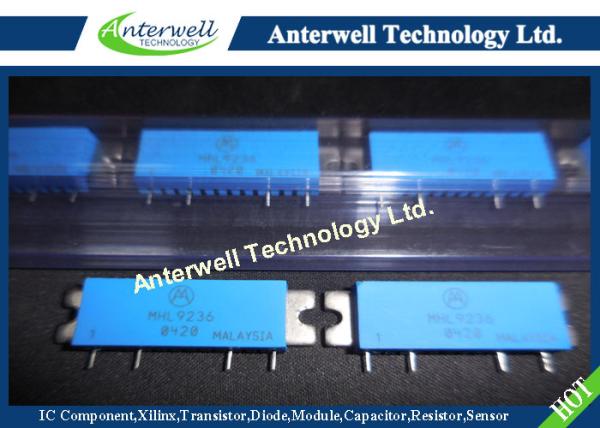

Cellular Band RF Linear Amplifier Electronics Parts 47 dBm MHL9236
Cellular Band RF Linear Amplifier Electronics Parts 47 dBm MHL9236
Specifications
Brand Name :
MOTOROLA
Model Number :
MHL9236
Certification :
Original Factory Pack
Place of Origin :
Germany
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
265PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Operating Case Temperature :
–20 to +100 °C
Feature :
Third Order Intercept: 46 dBm Typ
Feature2 :
Power Gain: 30 dB Typ (@ f =1850 MHz)
Feature3 :
Excellent Phase Linearity and Group Delay Characteristics
Feature4 :
Ideal for Feedforward Base Station Applications
Storage Temperature :
–40 to +100 °C
Description

Cellular Band RF Linear Amplifier Electronics Parts 47 dBm MHL9236

Designed for ultra–linear amplifier applications in 50 ohm systems operating in the cellular frequency band. A silicon FET Class A design provides outstanding linearity and gain. In addition, the excellent group delay and phase linearity characteristics are ideal for the most demanding analog or digital modulation systems, such as TDMA, CDMA or QPSK

• Third Order Intercept: 47 dBm Typ

• Power Gain: 30.5 dB Typ (@ f = 880 MHz)

• Excellent Phase Linearity and Group Delay Characteristics

• Ideal for Feedforward Base Station Applications

• For Use in TDMA, CDMA, QPSK or Analog Systems

Rating Symbol Value Unit
DC Supply Voltage VDD 30 Vdc
RF Input Power Pin +10 dBm
Storage Temperature Range Tstg –40 to +100 °C
Operating Case Temperature Range TC –20 to +100 °C

Characteristic Symbol Min Typ Max Unit
Supply Current IDD — 550 620 mA
Power Gain (f = 880 MHz) Gp 29.5 30.5 31.5 dB
Gain Flatness (f = 800–960 MHz) GF — 0.1 0.3 dB
Power Output @ 1 dB Comp. (f = 880 MHz) Pout 1 dB 33.0 34.0 — dBm
Input VSWR (f = 800–960 MHz) VSWRin — 1.2:1 1.5:1
Output VSWR (f = 800–960 MHz) VSWRout — 1.2:1 1.5:1
Third Order Intercept (f1 = 879 MHz, f2 = 884 MHz) ITO 46.0 47.0 — dBm
Noise Figure (f = 800–960 MHz) NF — 3.5 4.5 dBm

Cellular Band RF Linear Amplifier Electronics Parts 47 dBm MHL9236
