Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Residual Lubricated PCB Drilling Backup Panel Clean Drill Bit 2.1mm 2.5mm
Specifications
Brand Name :
DXE
Model Number :
25-HBL/20-HBL
Certification :
ISO90001
Place of Origin :
China
MOQ :
1260 Sheets
Price :
USD 2.70-3.00/Sheet
Payment Terms :
L/C, T/T
Supply Ability :
100,000 sheets/Month
Delivery Time :
15 Days
Packaging Details :
315 sheets/Pallet 16 Pallets/20'GP
Application :
Multi-Layer PCB board Drilling
Coating :
Coated
Coating Sides :
Double
Thinkness(mm) :
2.5/2.1
Surface Hardness(Shore-D) :
75±5
Size(inch) :
37"x49"/41"x49"/43"x49"
Warpage :
≤0.6% Diagonal
Description

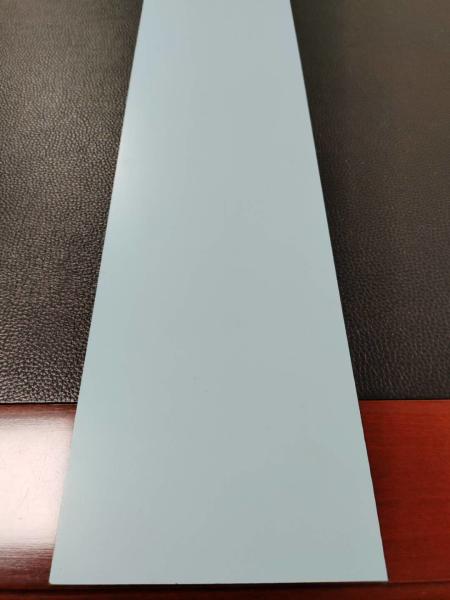

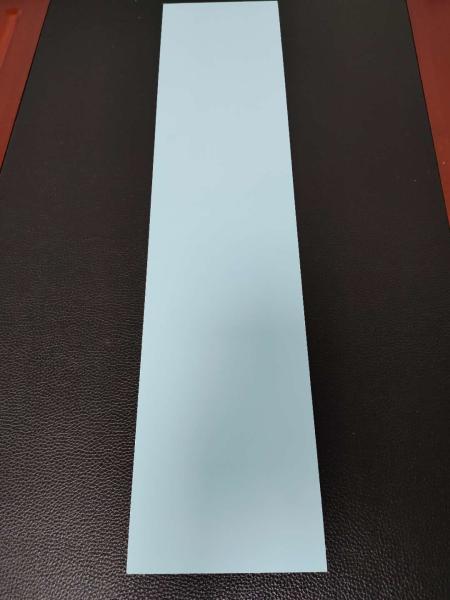

Clean Drill Bit Residual Lubricated PCB Drilling Backup Board Wathet Blue 2.1 / 2.5 mm

Special Features:

--Special Coating Makes Effective Heat Transfer,Low Temperature And Reduce Wear Of Drill Bit

--Lubricated Drill Bit,Clean Residual Of Drill Bit And Increase Ability To Removal Chips,Increase Quality Of Hole's Wall

--Increase Surface Quality Of Hole's Wall

--Customized Sizes Are Accepted

Shipping Terms:

EXW,FOB,CNF & CIF

Product Details:

Application
For High Precision and Multi-Layer PCB board Drilling,CCL cutting and packing
Type
25-HBL/20-HBL
Thinkness(mm)
2.5/2.1
Thinkness Tolerance(mm)
±0.15
Surface Hardness(Shore-D)
75±5
Apperance
White,Allow Some Color Shading
Size(inch)
37"x49"/41"x49"/43"x49"
Size Tolerance(mm)
±3
