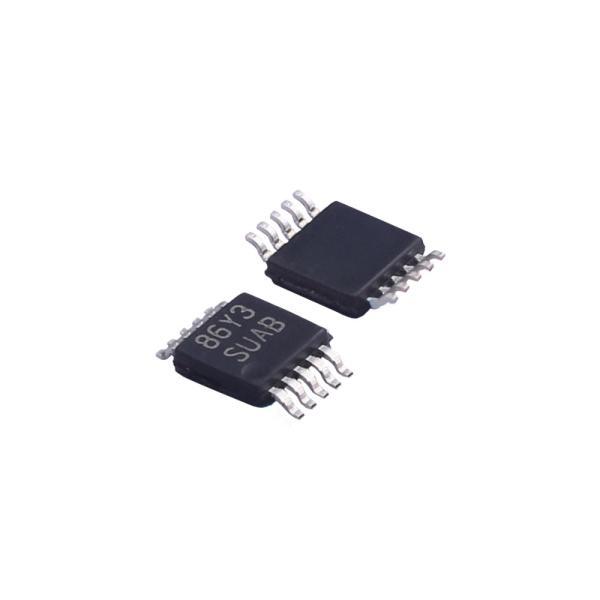

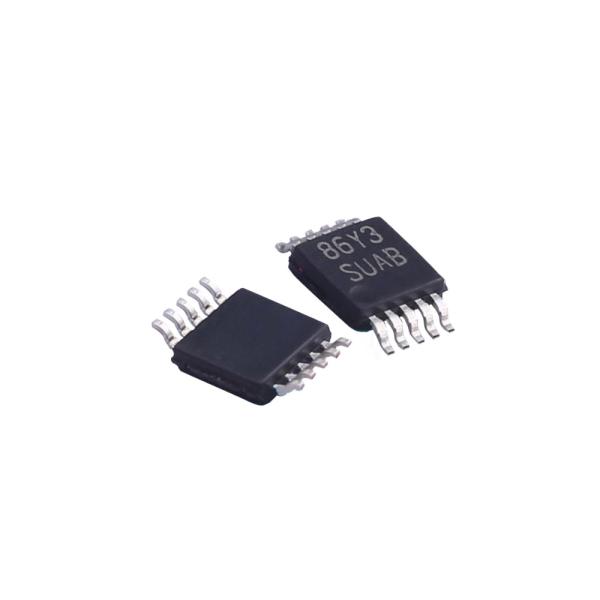

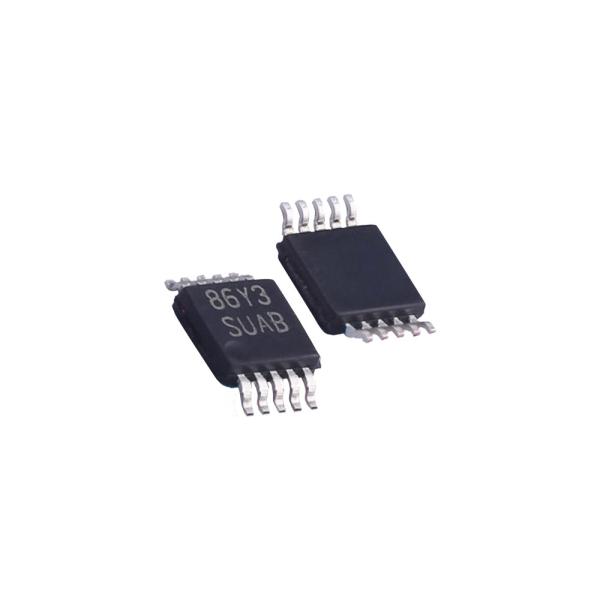

IC Integrated Circuits LM3481QMMX/NOPB MSOP-10 Switching Controllers

Product Description:

The LM3481 device is a versatile Low-Side N-FET high-performance controller for switching regulators. The device is designed for use in Boost, SEPIC and Flyback converters and topologies requiring a lowside FET as the primary switch. The LM3481 device can be operated at very high switching frequencies to reduce the overall solution size. The switching frequency of the LM3481 device can be adjusted to any value between 100kHz and 1MHz by using a single external resistor or by synchronizing it to an external clock. Current mode control provides superior bandwidth and transient response in addition to cycle-by-cycle current limiting. Current limit can be programmed with a single external resistor. The LM3481 device has built-in protection features such as thermal shutdown, short-circuit protection and overvoltage protection. Power-saving shutdown mode reduces the total supply current to 5 µA and allows power supply sequencing. Internal soft-start limits the inrush current at start-up. Integrated current slope compensation simplifies the design and, if needed for specific applications, can be increased using a single resistor.

Application:

• Automotive Start-Stop Applications • Automotive ADAS Driver Information • One Cell/Two Cell Li-ion Battery Powered Portable Bluetooth Audio Systems • Notebooks, PDAs, Digital Cameras, and Other Portable Applications • Offline Power Supplies • Set-Top Boxes • Boost for Audio Amplifiers

Parameter Table:

FAQ:

• Whats your MOQ?

No MOQ needed, and if you buy more, will enjoy better prices.

• Can i get a free sample?

You can ask our staff for apply free samples.

• What payment methods do you support?

We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

• What about the shipment methods?

We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

• How will you Guaranteed quality?

Quality Warranty Period:12 Months.

• Are the products tested before shipment?

All products were tested before shipment, and the quality problems were negligible.

• Do you provide BOM services?

Yes, We provide one-stop purchase service, Please send us your Bom List
