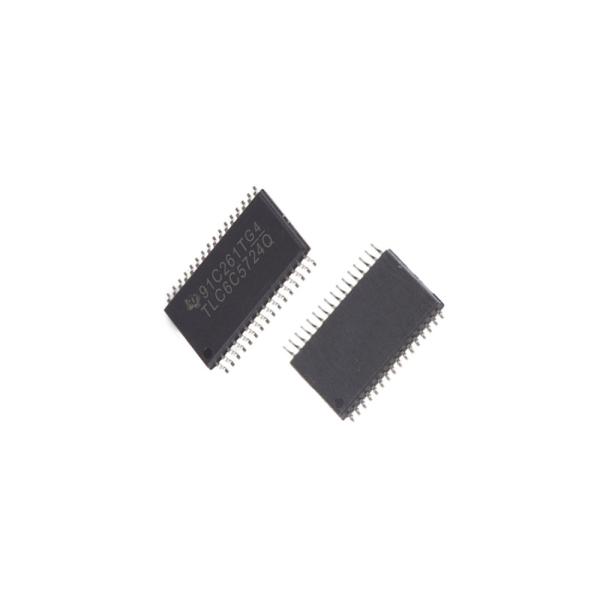

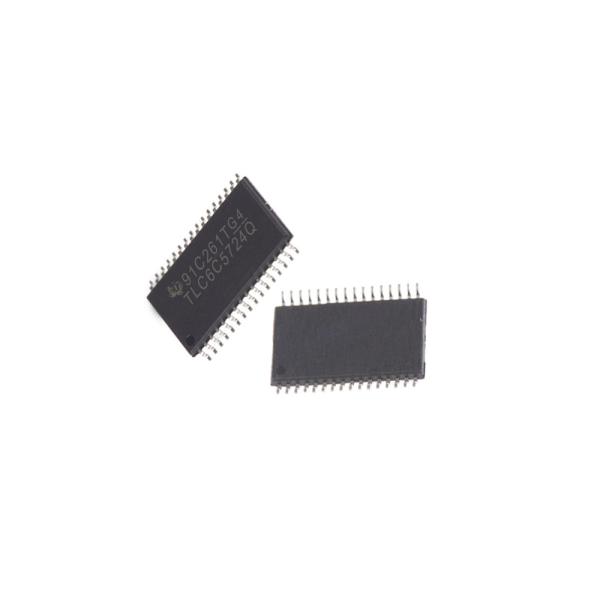

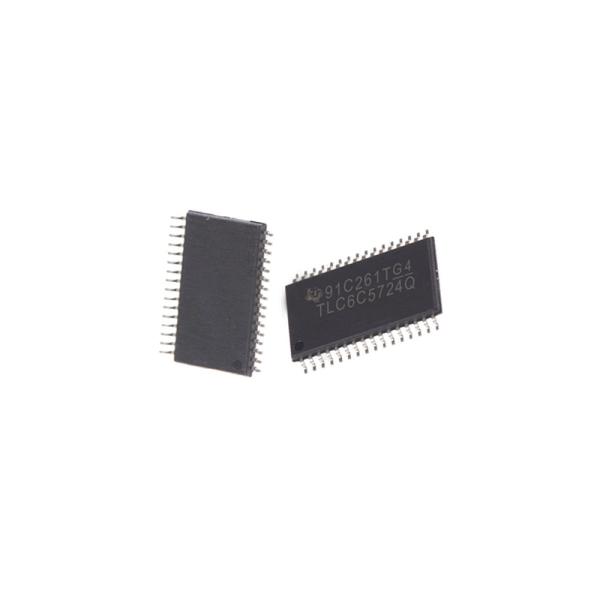

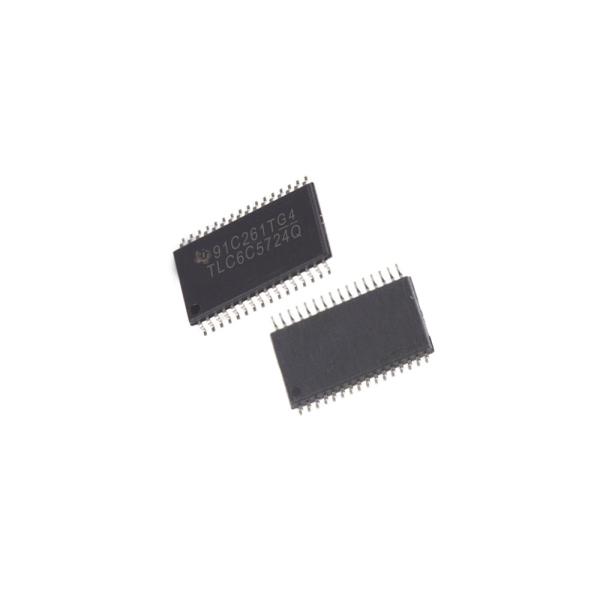

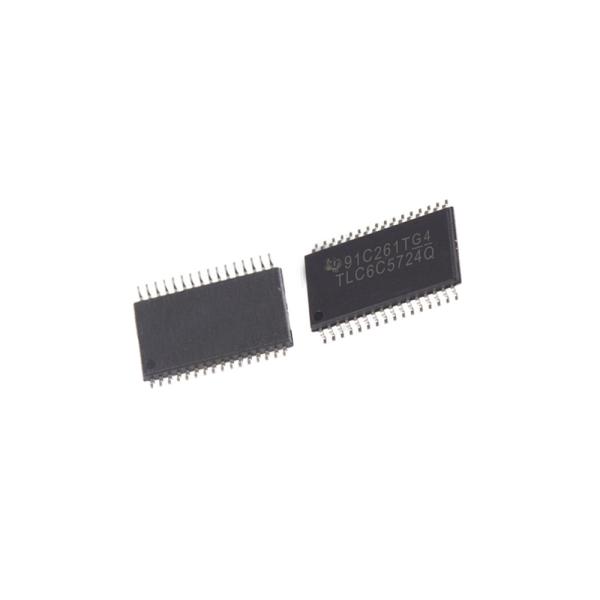

IC Integrated Circuits TLC6C5724QDAPRQ1 HTSSOP-38 LED Lighting Drivers

Product Description:

There are automotive applications for indicators and for LCD local-dimming backlighting. For these applications, more persons think multi-channel constant-current LED drivers are necessary. The requirement is to get the same intensity and color temperature of LEDs. For system-level safety, it is necessary that the LED drivers can sense faults. The TLC6C5724-Q1 device is an automotive 24- channel constant-current RGB LED driver that can do tests on the LEDs. The TLC6C5724-Q1 device supplies a maximum of 50‑mA output current set by an external resistor. The device has a 7-bit dot correction with two ranges for each output. The device also has an 8-bit intensity control for the outputs of each color group. A 12-,10-, or 8-bit grayscale control adjusts the intensity of each output. The device has circuits that sense faults in the system, including LED faults, adjacent-pin short faults, reference-resistor faults, and more. A slew rate control has 2 positions for adjustment to get the largest decrease in system noise. There is an interval between the changes of output level from one LED group to a different one. This interval helps to decrease the starting electrical current. The SDI and SDO pins let more than one device be connected in series for control through one serial interface

Application:

• Automotive Cluster • Automotive Local Dimming Display • Automotive Faceplate • Automotive HVAC Control Panel • Automotive Center Stack Display • Automotive Interior and RGB Ambient Lighting • Automotive Shift-by-Wire and Gear Shifter

Parameter Table:

FAQ:

• Whats your MOQ?

No MOQ needed, and if you buy more, will enjoy better prices.

• Can i get a free sample?

You can ask our staff for apply free samples.

• What payment methods do you support?

We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

• What about the shipment methods?

We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

• How will you Guaranteed quality?

Quality Warranty Period:12 Months.

• Are the products tested before shipment?

All products were tested before shipment, and the quality problems were negligible.

• Do you provide BOM services?

Yes, We provide one-stop purchase service, Please send us your Bom List
