YHZS60 Mobile Concrete Batching Plant 60m3/H Electric Concrete Mixing Plant
YHZS60 Mobile Concrete Batching Plant 60m3/H Electric Concrete Mixing Plant
YHZS60 Mobile Concrete Batching Plant 60m3/H Electric Concrete Mixing Plant
YHZS60 Mobile Concrete Batching Plant 60m3/H Electric Concrete Mixing Plant
Specifications
Brand Name :
Cinacharm
Model Number :
YHZS60
Certification :
CE ISO BV SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
8-10 days
Packaging Details :
China standard package
Name :
mobile concrete batching plant
Color :
Customer Required
Capacity :
60m3/h
Applicable industries :
Construction works
Control system :
Automatic Computer Control
Mixer :
JS1000 Concrete Mixer
Keyword :
Automatic Concrete Batching Plant
Cement silo :
50t/100t/150t.customized
Description

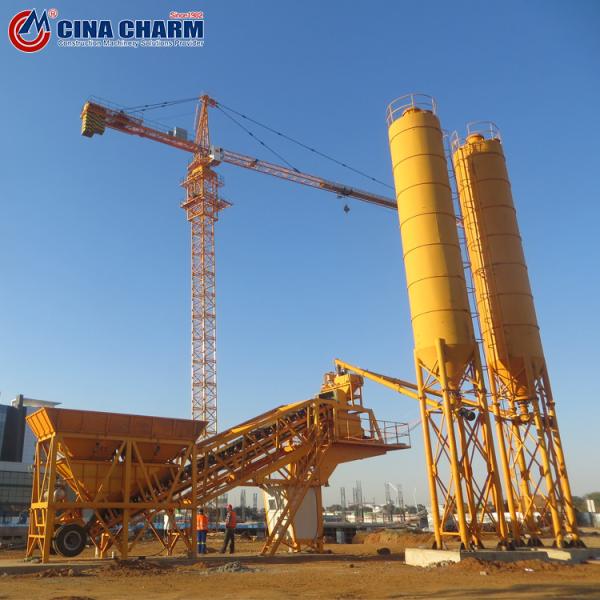

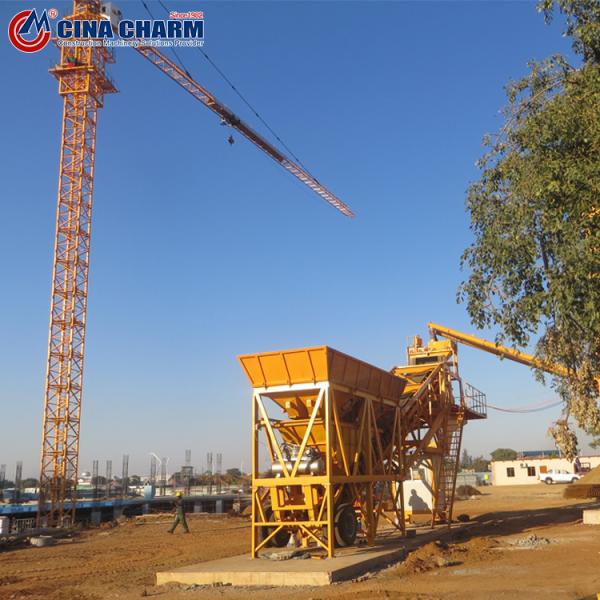

Mobile concrete batching plant YHZS60 60m3/h electric concrete mixing plant

Product description of mobile concrete batching plant YHZS60:

The YHZS series portable concrete plant (mobile concrete plant) is an innovative mobile (trailer-mounted) concrete mixing unit designed to perform a variety of tasks. It is mobile and therefore an ideal model for remote construction projects such as roads, bridges, ports and any other small projects.

Main features of mobile concrete batching plant YHZS60:

1) Simple structure, easy to install and maintain.

2)Using advanced components, electrical and operating parts.

3) Fully automatic and easy to operate.

4)Efficiency is 30% to 40% higher than average

5) Low energy consumption and low noise.

6) Fully automatic operation: high metering accuracy and labor saving.

7)Demountable prefabricated structure: flexible layout, easy installation and disassembly.

8)Cleaning function of mixing system: easy to clean and maintain.

9) Electric pulse dust collector: large dust removal area.

Parameters of mobile concrete batching plant YHZS60:

Mixing system
JS1000 double-shaft mixer
Main motor 2*18.5KW
Mixing blade, liner board High Mn Cast steel
Aggregate batching system
Cold Bins 4*6.5m3
Cylinder SC100*250
Measuring bin 5600L
Measuring system
Cement measuring system
Water measuring and water supply system
Admixture measuring system

FAQ

Q1: What is the function of concrete mixing plant?

A: It is used to produce various types of concrete to meet the construction requirements of buildings, bridges, docks, airports, railroads, etc.

QII: How to choose the right concrete mixer model for the second part?

A: Just tell us the concrete output you want to produce per hour or per month (m3/h, t/h).

QIII: What payment terms do you use?

A: The most commonly used in the world are wire transfer, letter of credit, etc.

No
Product name
Type
1
Concrete Mixer
Twin Shaft, Single Shaft, Rotating Drum Type
2
Stabilized Soil Mixing Station/Plant
Station and Mobile
3
Asphalt Mixing Plant
From LB500 to LB4000
4
Dry-mix Mortar Production Line
Full-auto
5
Concrete Batching Machine
Accumulative Weighing Type, Separater Weighing Type
6
Screw Conveyors
With universal joint
7
Concrete Mixer Truck
From 3m3 to 16m3
8
Concrete Pump
Electric type and diesel engine powered
9
Brick Making Machine
Manual, Electric, Diesel
10
Construction Elevators
Single Cage and Double Cage
11
Construction Elevators
Single Cage and Double Cage
12
Tower Crane
stationary, mobile,outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top
