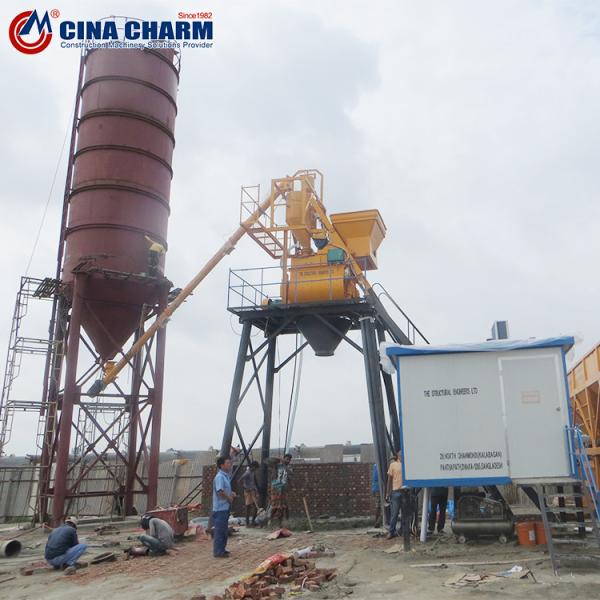

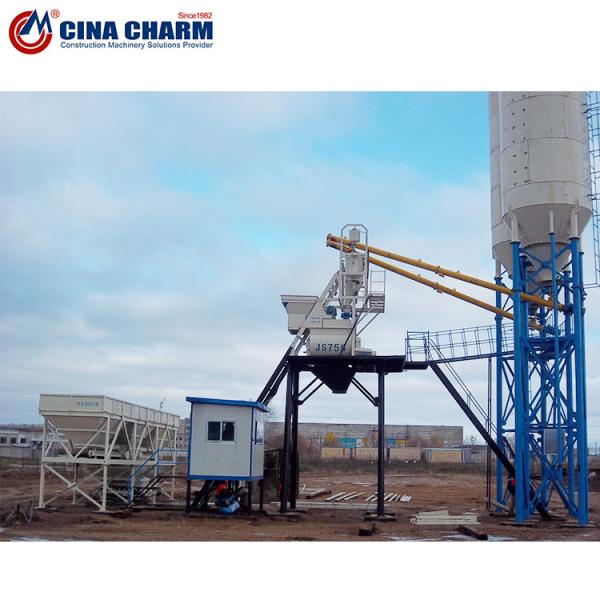

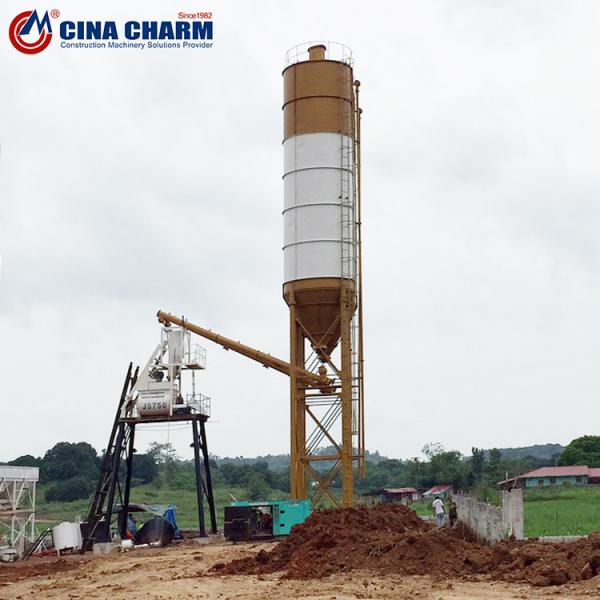

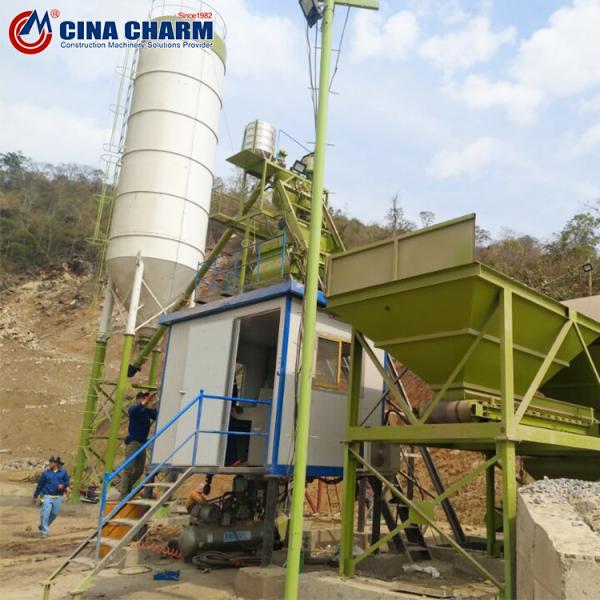

Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Ready Mixed Foundation Stationary Concrete Batching Plant HZS35
Specifications
Brand Name :
CINA CHARM
Model Number :
HZS35
Certification :
CE ISO SGS BV
Place of Origin :
Henan, China
MOQ :
1set
Price :
USD 38,000 per set
Payment Terms :
L/C, T/T
Supply Ability :
50sets per month
Delivery Time :
7-15 working days
Packaging Details :
Safe package in container
Model :
Stationary HZS35
Dimension(L*W*H) :
14.5m X5.6m X5.9m
Power :
45kw
Discharging Height: :
4.1m
Batching machine :
PLD1200 Batching Machine
Weight :
15T
Color :
Customized Required
Concrete Mixer :
JS750 Twin Shaft Forced Mixer
Core Components :
PLC, Bearing, Motor, Pressure vessel
Description

Ready Mixed Foundation Stationary Concrete Batching Plant HZS35

HZS35 fixed concrete batching plant Introduction:

concrete mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.

HZS35 fixed concrete batching plant advantages:

1. The main characteristics of the device are: compact structure to operate and easy transportation.
2. It adopts twin-shaft compulsory mixer,folding three-hopper burden machine.
3. Its characteristics are unique car chassis design, multi-language windows operating interface,electricity gas water.Express plug,a high degree of automation,disassembly and convenient mobility.
4 .It´s fit for small and medium-sized projects. We can strengthen the integrated design of the series mixing station according to user´s requirements.
Aggregate adopt two kinds of feeding method: upgrade hopper or belt conveyor.

HZS35 fixed concrete batching plant parameter:

Item Unit HZS35
Power of main mixer kw 30
Feeding mode / Lifting hopper
Max. aggregate diameter mm 80
Cement silos / 50T cement silo
Screw conveyor mm Φ219*8m
Conrtrol mode / Computer control
Aggregate accuracy % ±2
Water & cement & additive accuracy % ±1

Ready Mixed Foundation Stationary Concrete Batching Plant HZS35

FAQ:

Q1: What is the function of the concrete batch plant?

Answer: It is used to produce all kinds of concrete to meet the building work of buildings,bridges,dock,airport, railway,etc
Q2: How to choose the suitable model of batch plant?
Answer: Just tell us the capacity (m3/h,t/h)of concrete you want to produce concrete per hour or per month.
Q3: What paymet terms you use?
Answer: Usually the world most common used T/T,L/C ,etc
Q4: Do you supply other products?
