Specifications
Brand Name :
Cinacharm
Model Number :
HBTS60
Certification :
CE ISO BV SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
10-12 days
Packaging Details :
China standard package
Product name :
trailer concrete pump
Productivity :
60 cubic meters per hour
Concrete pumping pressure :
13Mpa
Hopper capacity :
0.7m3
Max. horizontal distance :
1200m
Max. vertical distance :
300m
Motor power :
90kw
Warranty :
12 months
Description

Mini concrete mixing pump 60m3 HBTS60 cement pump trailer

Brief description of HBTS60 concrete mixing pump:

The concrete trailer pump is a set of mechanical, electrical and hydraulic technology with reliable performance, smooth operation and strong pumping capacity. The automatic adjustment of the motor ensures the reliability and stability of the system.

1.Transporting light foam cement, mortar, fine aggregate concrete for floor heating.

2.Transportation of ordinary concrete and fiber concrete for various engineering structures.

3. Transportation or injection of refractory and insulation materials.

4. Transportation or injection of topsoil for ecological construction.

5. Transportation or injection of plain concrete and fiber concrete for all kinds of civil engineering.

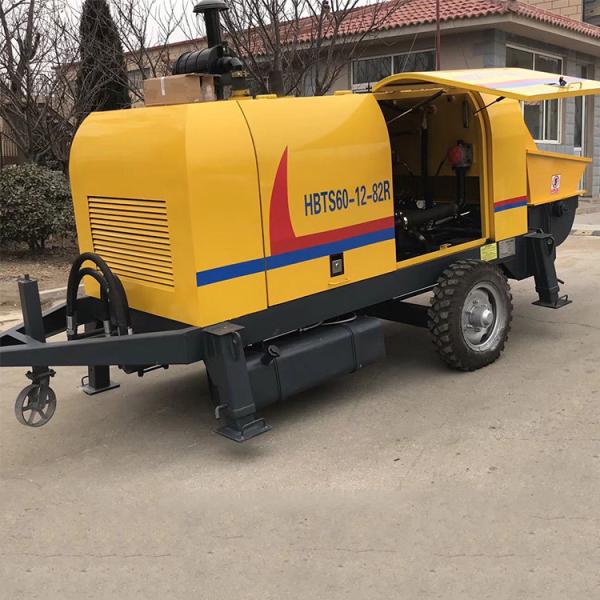

60m3 HBTS60 Trailer Concrete Pump Mini Concrete Mixing Pump

Product details of HBTS60 concrete mixing pump:

1. High pressure concrete output: Meet the high building and long distance construction works.

2. Automatic lubrication system: Lubricate automatically the components of concrete pump.

3. Hard alloy eyeglass plate: Hard-alloy glasses plate ensure the service life.

4. Control full automatically: Operation is simple and clear At a glance, improve work efficiency.

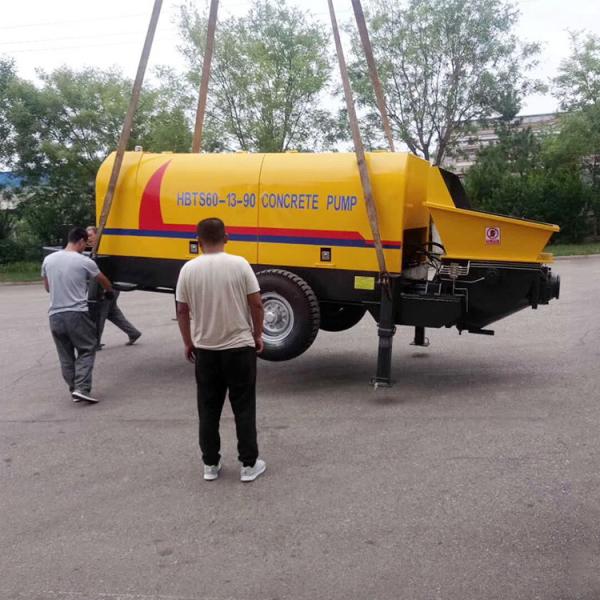

60m3 HBTS60 Trailer Concrete Pump Mini Concrete Mixing Pump

Product parameters of 60m3 HBTS60 cement pump trailer:

Item

Unit

HBTS60

Max. Theoretical Concrete Output(low/high)

m³/h

60/54

Max. Concrete Pumping Pressure

Mpa

13

Distribution valve

S Valve

Max. Theoretical Conveying Distance

(Horizontal Distance/vertical distance)

m

1200/230

Concrete Cylinder Diameter

mm

Φ200×1800

Hopper Capacity/ Filling Height

L

800

Maximum aggregate size

mm

50

Concrete slump range

mm

100-230

Main motor powder

kw

130

Rated speed

r/min

2300

Fuel tank capacity

L

500

Cleaning mode

High pressure washing

Dimension

mm

6300*1800*2300

Total Weight (including oil)

kg

6300

Our company:

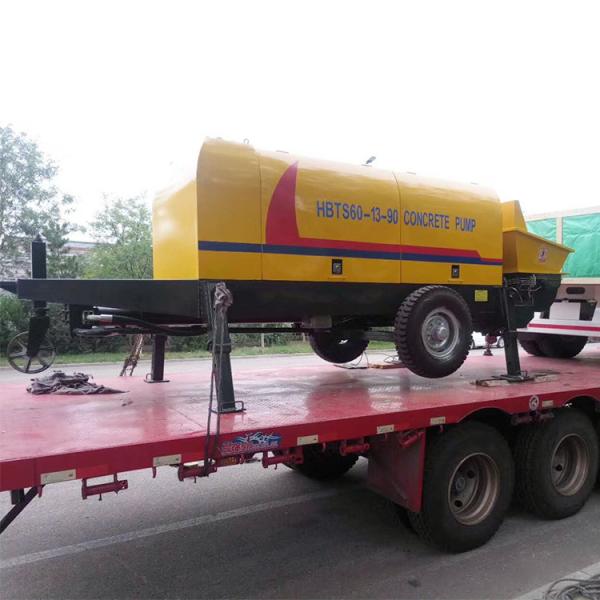

60m3 HBTS60 Trailer Concrete Pump Mini Concrete Mixing Pump

FAQ:

Q: Do you provide training on equipment operation?

A: Yes. We can send professional engineers to the site for training on the installation, adjustment and use of the equipment. All our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send us the samples for inspection and analysis.

Q: Service and payment terms?

A: We usually accept wire transfer, letter of credit. t/t: 30% in advance as deposit, the balance before delivery we take photos of the finished products before delivery.
