Low investment Stationary Concrete Plant Cinacharm HZS25 China Manufacture

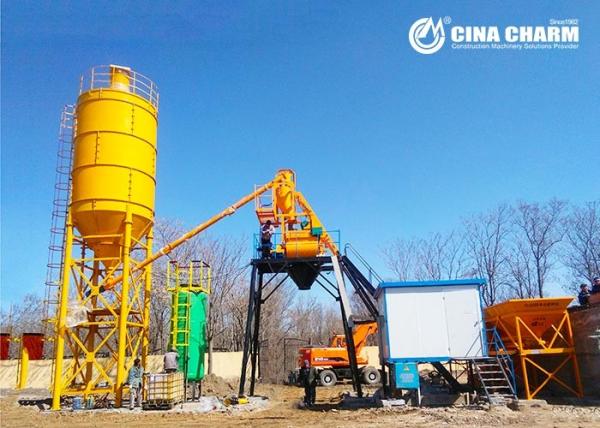

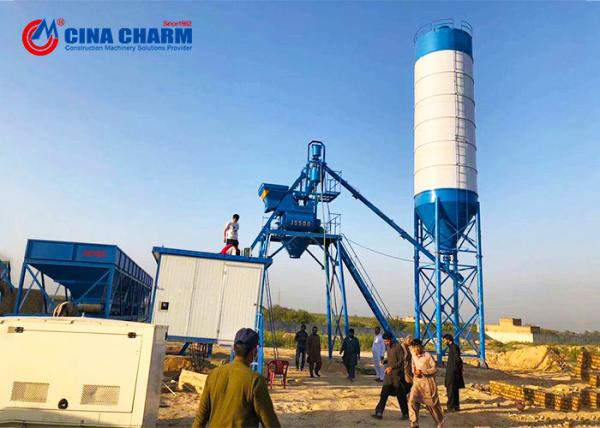

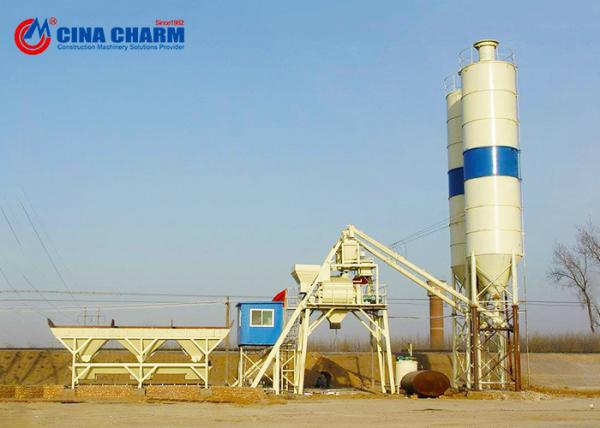

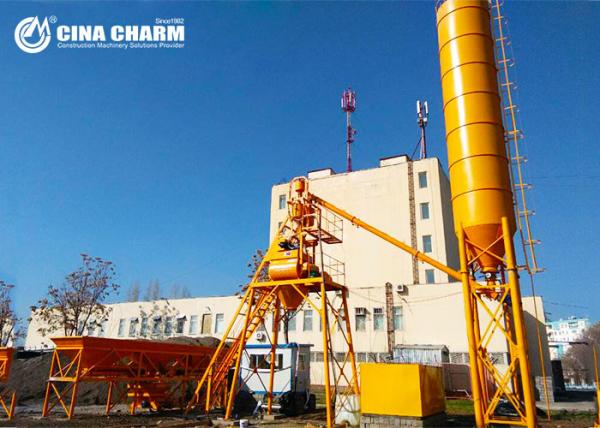

The concrete mixing station is a building material manufacturing equipment composed of a mixing host, a material weighing system, a material conveying system, a material storage system, a control system and other auxiliary facilities. The main principle of its work is cement as a cementing material, and sand Stone, lime, coal cinder and other raw materials are mixed and stirred, and finally made into concrete, which is introduced into construction production as wall materials.

The concrete mixing plant has good mixing performance. The equipment adopts a spiral double-horizontal shaft forced mixing host. Not only is the mixer powerful, it can achieve good mixing effects for concrete with dry hardness, plasticity and various ratios. And the mixing is even and the efficiency is high.
The concrete mixing plant not only has an excellent mixing host, but also a variety of sophisticated accessories, such as screw conveyors, metering sensors, pneumatic components, etc. These components ensure a high degree of reliability during the operation of the concrete mixing plant, accurate measurement skills and Long service life. At the same time, each repair and maintenance part of the concrete mixing plant is equipped with a walking platform or inspection ladder, and has enough space for manipulation. The mixing host can be equipped with a high-pressure automatic cleaning system, which has the function of automatic alarm for oil shortage and over temperature, which is convenient for equipment maintenance.

1. Aggregate supply system: aggregate hopper, aggregate weighing hopper, lifting hopper.
2. Mixing and mixing system: The main machine is a double horizontal shaft forced mixer or a vertical planetary reducer.
3. Powder supply system: powder silo, screw conveyor, cement weighing hopper.
4. Automatic water supply system: water tank, water pump, pipeline, water weighing hopper, admixture weighing hopper.
5. Electrical operating system: computer console, electrical control cabinet, operating room.
6. Pneumatic control system: air compressor, air pipeline, solenoid valve, air cylinder.

Concrete mixing station is composed of feeding, mixing, weighing, control, water supply and other systems and structural components. The use of concrete mixing plants for centralized mixing of cement concrete has many advantages:
(1) The centralized mixing of cement concrete facilitates strict control of the mixing ratio of concrete, guarantees the quality of the concrete, and fundamentally changes the inaccuracy of the on-site dispersed mixing batching;
(2) The centralized mixing of cement concrete is conducive to the use of automation technology, which can greatly increase labor productivity, save labor and reduce costs;
(3) The use of centralized mixing eliminates the need to install mixing equipment, stack sand and gravel, and store cement at the construction site, thereby saving space and avoiding waste of raw materials.
The concrete mixer host can be divided into self-falling type and compulsory type according to the type. The self-falling mixing drum has a large capacity and is suitable for large aggregate mixing.
The compulsory mixer is divided into vertical shaft and horizontal shaft. The concrete quality of the forced mixer is good, suitable for mixing low slump and dry hard concrete.
